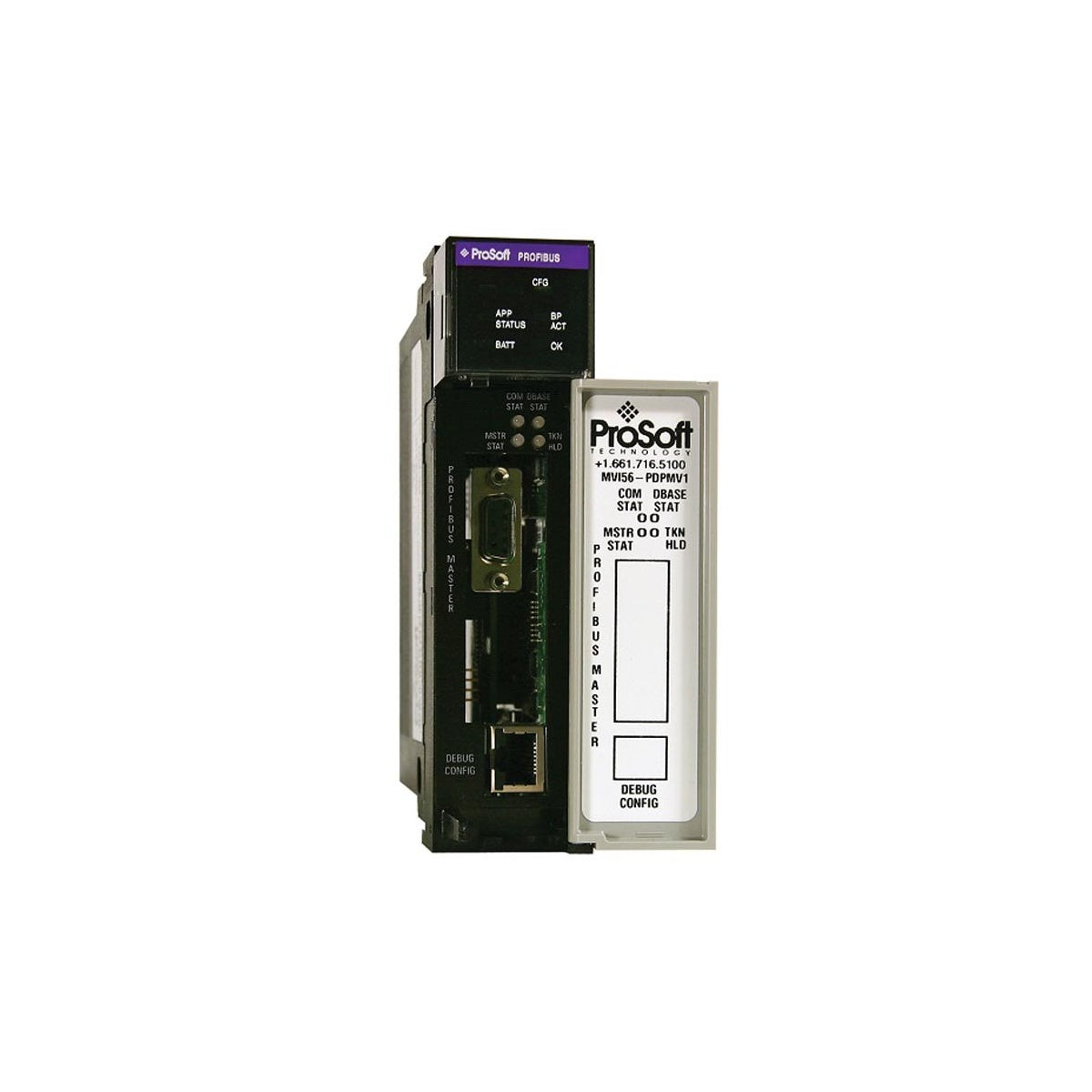

ProSoft MVI56-PDPMV1 ControlLogix PROFIBUS DPV1 Master Communication Module

SKU MVI56-PDPMV1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ProSoft
  • Product No.: MVI56-PDPMV1
  • Origin United States
  • Product Type: PROFIBUS Communication Modules
  • Payment: T/T, Western Union
  • Weight: 2.0 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Communication Modules ControlLogix
Quantità
Call sales Contact

Product Description

Description

Integrating PROFIBUS DP network connectivity directly into Rockwell Automation ControlLogix systems, the ProSoft MVI56-PDPMV1 PROFIBUS DPV1 Master Communication Module functions as an efficient gateway between the PLC backplane and distributed field devices. This single-slot module mounts directly into the ControlLogix chassis, enabling the processor to control slave devices via high-speed cyclic data exchange (DPV0) and configuration/diagnostic acyclic data transfer (DPV1).

The MVI56-PDPMV1 establishes high-speed communication without consuming excessive rack space or requiring complex ladder logic. Featuring a dedicated RS-232 RJ45 serial configuration port, the module also supports remote configuration and diagnostics across EtherNet/IP using CIPConnect technology, allowing engineers to maintain the system through a network-linked ControlLogix Ethernet bridge.

Features

  • Provides a seamless PROFIBUS DP Master connection directly within the ControlLogix backplane.
  • Supports both DPV0 cyclic messaging for real-time control and DPV1 acyclic messaging for advanced instrument configuration.
  • Compatible with CIPConnect, enabling remote diagnostics and network configuration routing through ControlLogix Ethernet modules.
  • Equipped with a dedicated RJ45 configuration port operating on the RS-232 standard.
  • Comprehensive front-panel LED diagnostics for rapid assessment of module status, backplane transfers, and serial communications.

Applications

  • Integration of PROFIBUS field instrumentation (transmitters, valves, actuators) in oil and gas production systems.
  • Distributed I/O management in water treatment plants and wastewater facilities.
  • Process automation and factory floor machinery integration requiring DPV1 acyclic parameterization.
  • Heavy industrial material handling and power generation automation.

Technical Specifications

Manufacturer ProSoft Technology
Part Number/Model MVI56-PDPMV1
Platform Compatibility Allen-Bradley ControlLogix (1756 series)
Backplane Current Draw 800 mA at 5 VDC, 3 mA at 24 VDC
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Relative Humidity 5% to 95% (non-condensing)
Vibration Resistance 5 g from 10 Hz to 150 Hz
Operational Shock 30 g (operational), 50 g (non-operational)
Configuration Port RJ45 (RS-232), supports CIPConnect routing
Shipping Weight 2 kg

Connections and Interfaces

Interface Type Function / Description
CFG Port RJ45 connection (RS-232 protocol only) for system setup, database downloads, and local diagnostic interface. Includes RJ45 to DB-9M cable adapters.
PROFIBUS Port DB-9 Female connection conforming to PROFIBUS DP physical layer specifications.

Installation Guidelines

  • Ensure the ControlLogix chassis is powered off before inserting or removing the module.
  • Avoid electrostatic discharge (ESD) damage by using a grounding strap during installation.
  • Secure the module in any available slot of the 1756 chassis by aligning with guides and locking the top and bottom latches.
  • Verify standard network termination resistors are placed on the end nodes of the PROFIBUS segment.

Compliance and Certifications

  • CE Mark
  • UL/cUL Class I, Division 2 Hazardous Locations
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the ProSoft MVI56-PDPMV1 module?
The MVI56-PDPMV1 allows an Allen-Bradley ControlLogix processor to act as a PROFIBUS DP Master. It handles cyclic high-speed data transfer (DPV0) and acyclic configuration transfer (DPV1) to communicate with downstream PROFIBUS slaves.
Does this module support remote configuration?
Yes, through CIPConnect technology, the MVI56-PDPMV1 can be configured and diagnosed remotely over an EtherNet/IP network routed through a standard ControlLogix Ethernet module.
What configuration cables are included with the MVI56-PDPMV1?
The module is shipped with RJ45 to DB-9M cables for the serial configuration ports and a standard 6-foot RS-232 configuration cable.
What are the power requirements of the module from the backplane?
The module draws 800 mA at 5 VDC and 3 mA at 24 VDC from the ControlLogix chassis backplane.
