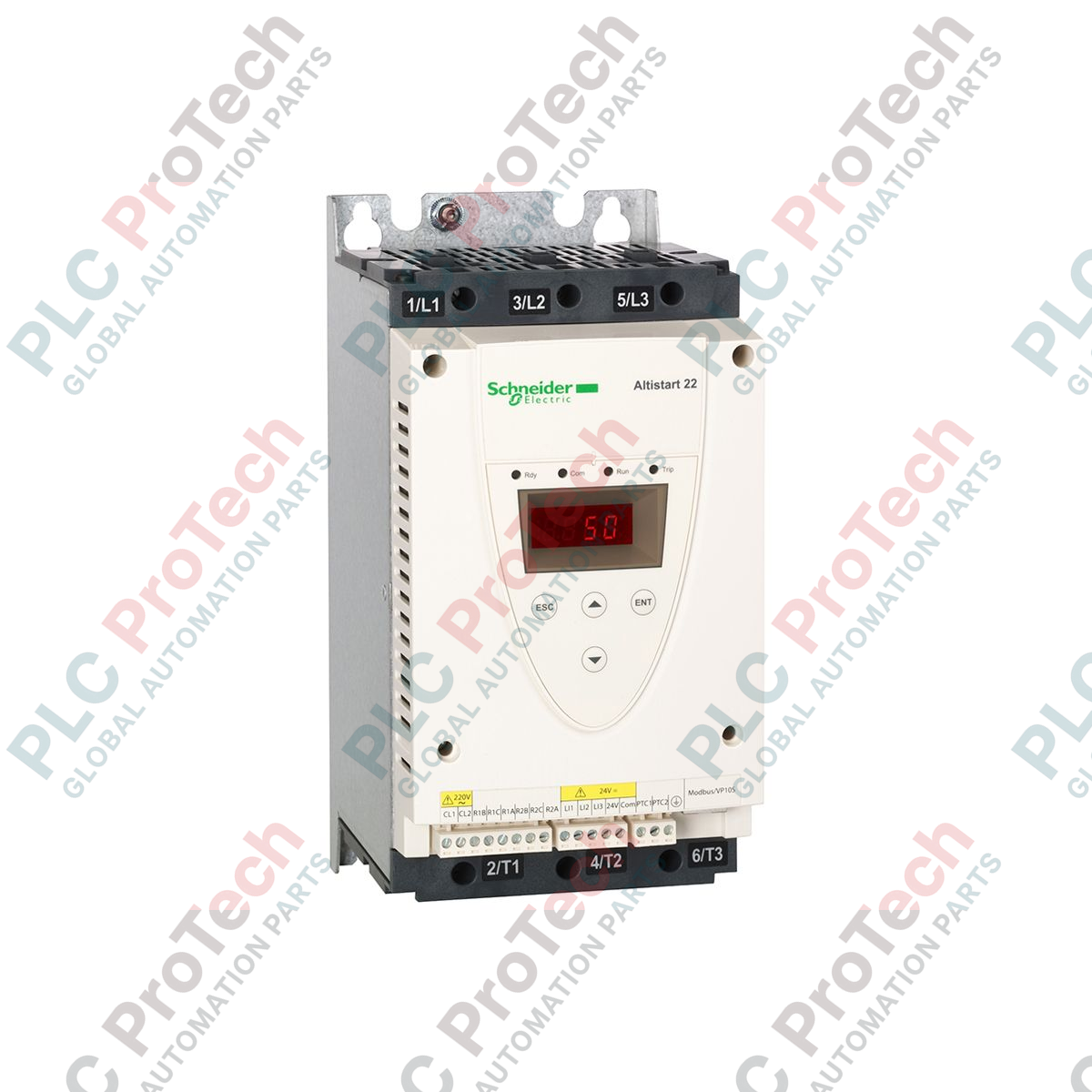

The ATS22D32Q is a Soft Starter from the Altistart 22 range, engineered for the control of three-phase asynchronous motors. Designed to provide smooth starting and stopping sequences, this unit manages current and torque to prevent mechanical stress during startup. With a rated current of 32 A and a supply voltage range of 230V to 440V, it is capable of supporting motor applications ranging from 7.5 kW to 22 kW.

Features

• Rated Current: 32 A
• Supply Voltage: 230...440V
• Motor Power Range: 7.5 to 22 kW
• Optimized startup current to reduce mechanical and electrical stress
• Compact dimensions for space-efficient panel integration

Applications

• Pumps and fan systems
• Centrifugal machines
• Conveyor systems
• Compressors
• General industrial motor control

Technical Specifications

Installation Guidelines

• Mounting: Ensure vertical mounting within the control panel. Maintain adequate clearance above and below the unit to facilitate necessary airflow for cooling.
• Wiring: Connect the three-phase supply and motor leads to the appropriate power terminals. Ensure all wiring is rated for the 32 A operational current.
• Grounding: Establish a robust connection to a protective earth to ensure safe operation and mitigate electrical noise.
• Environment: Install in a clean, dry location protected from extreme temperature fluctuations and excessive dust or moisture.
• Commissioning: Verify motor settings and supply parameters before initiating the first start sequence.
