Description

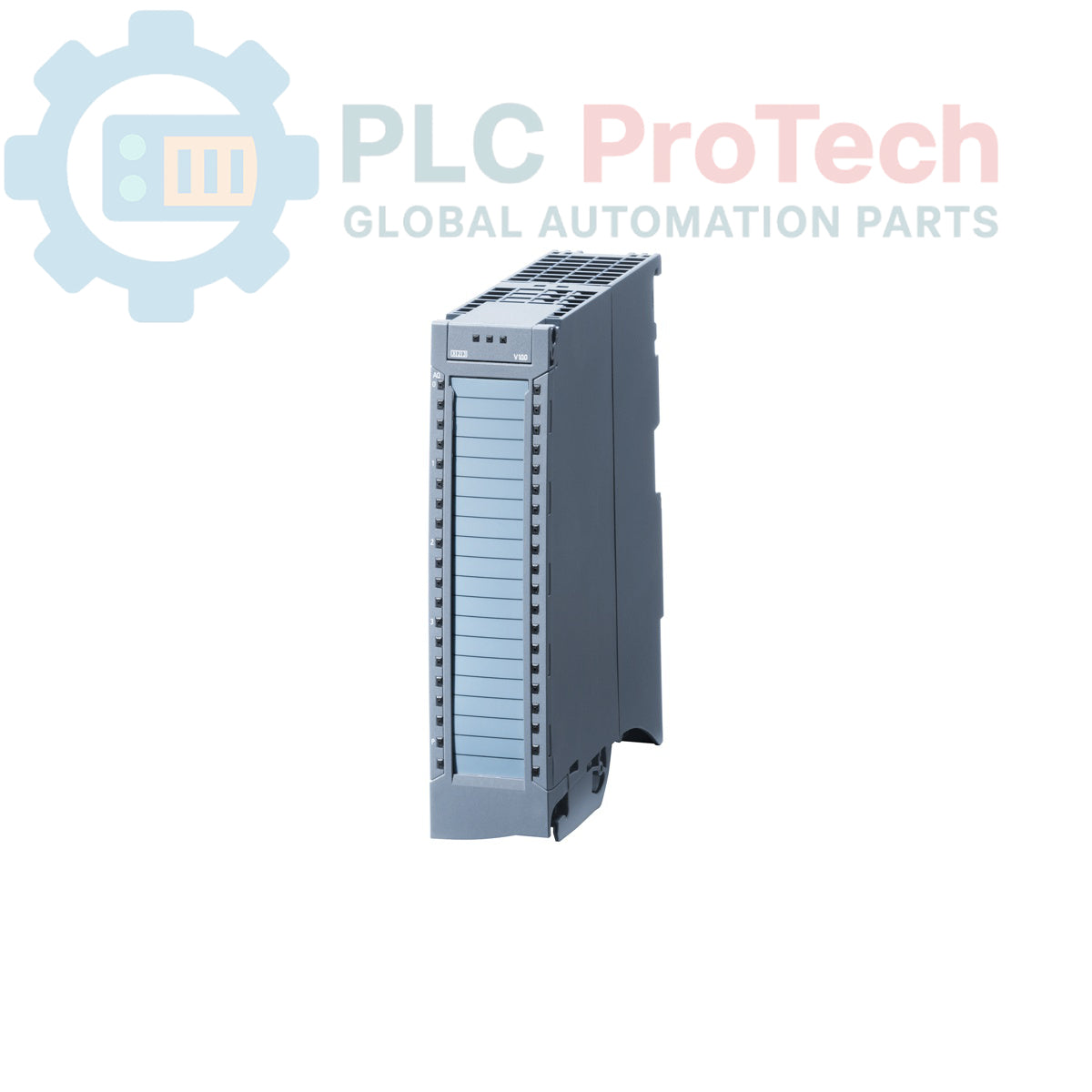

The 6AG1532-5HF00-7AB0 is a high-performance SIPLUS S7-1500 Analog Output (AQ) module designed for ruggedized industrial applications. Based on the standard 6ES7532-5HF00-0AB0 module, this unit features conformal coating to protect circuitry against extreme environmental conditions, such as humidity, gases, or dust. It provides 8 analog output channels (configurable for Voltage or Current) with 16-bit resolution and an accuracy of 0.4%. Built for high-speed performance, the module features a conversion time of 0.125 ms, making it suitable for high-dynamic control loops.

Features

• Environmental Resilience: Conformal coating allows for operation in temperatures ranging from -40 °C to +70 °C (startup at -25 °C).
• High-Speed Execution: Fast cycle time of 0.125 ms for high-precision analog control.
• Versatile Output: 8 channels grouped for flexibility in both voltage and current signaling.
• Complete Package: Includes the necessary infeed element, shielding bracket, and shield terminal for immediate industrial deployment.
• Diagnostic Capabilities: Integrated diagnostics for monitoring output integrity and channel health.

Technical Specifications

Installation Guidelines

• Shielding: Utilize the provided shielding bracket and terminal to ensure the analog signals are protected from electromagnetic interference (EMI), which is vital given the 16-bit high-resolution output.
• Infeed Element: Ensure the infeed element is properly installed to provide the necessary power to the output circuits.
• Thermal Management: While SIPLUS modules are rated for extreme temperatures, ensure natural convection is maintained around the S7-1500 rack to ensure longevity.
• Configuration: Use TIA Portal to configure the channel types (e.g., ±10V, 0-20mA, 4-20mA) before energizing the output circuits.
• Wiring: Analog signals should be wired using twisted-pair, shielded cable, and the cable shield should be connected to the shield terminal at the module side to prevent ground loops.
