Description

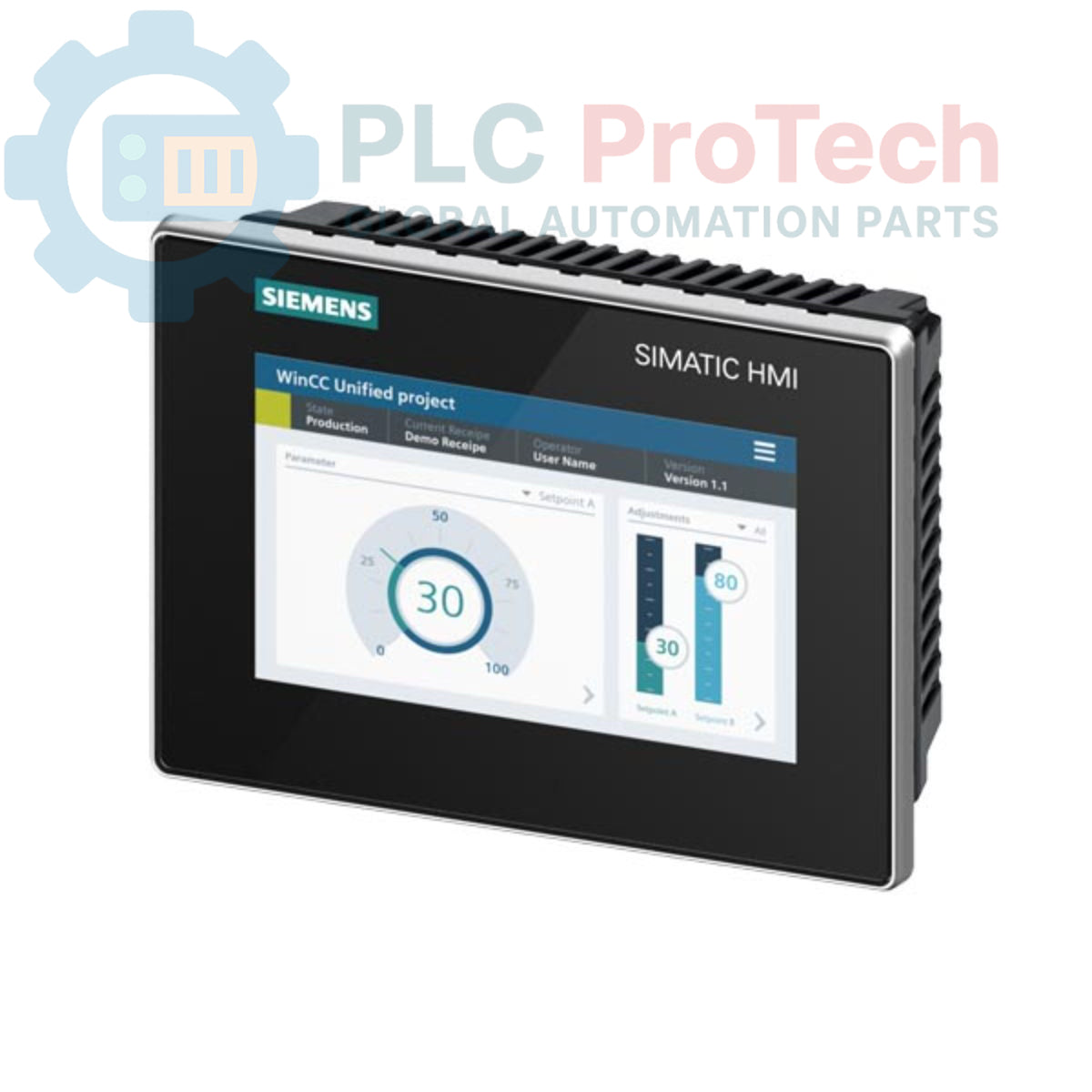

The 6AV2128-3GB06-0AX1 is a SIMATIC HMI MTP700 Unified Comfort Panel designed for high-performance visualization in industrial automation environments. This device features a 7-inch widescreen TFT display capable of rendering 16 million colors, providing high-resolution graphical interfaces for machine and process monitoring.

The Unified Comfort Panel series leverages the WinCC Unified visualization software, enabling scalable and modular HMI solutions. It provides a robust PROFINET interface for seamless integration into existing industrial networks. This operator interface is engineered for touch-based interaction and is suitable for demanding industrial applications requiring reliable performance, clear data representation, and efficient system control within a compact hardware footprint.

Features

• 7-inch widescreen TFT display
• 16 million colors for detailed graphics
• Touch operation interface
• Integrated PROFINET interface
• Configurable via WinCC Unified Comfort V16 or higher
• Open-source software integration

Applications

• Automated manufacturing lines
• Machine tool control and monitoring
• Process automation systems
• Building automation and facility management
• Industrial data acquisition and logging

Technical Specifications

Installation Guidelines

• Panel Mounting: Ensure the panel is mounted in a cutout compliant with the manufacturer's specified dimensions to maintain IP rating integrity.
• Ventilation: Maintain adequate clearance around the unit to ensure proper heat dissipation and prevent overheating during continuous operation.
• Grounding: Connect the functional ground terminal to a low-impedance ground point to minimize electromagnetic interference (EMI).
• Cable Routing: Separate communication cabling from high-voltage power lines to reduce the risk of signal noise and interference.
• Operating Conditions: Ensure the installation environment remains within the specified temperature and humidity ranges defined in the product manual.
