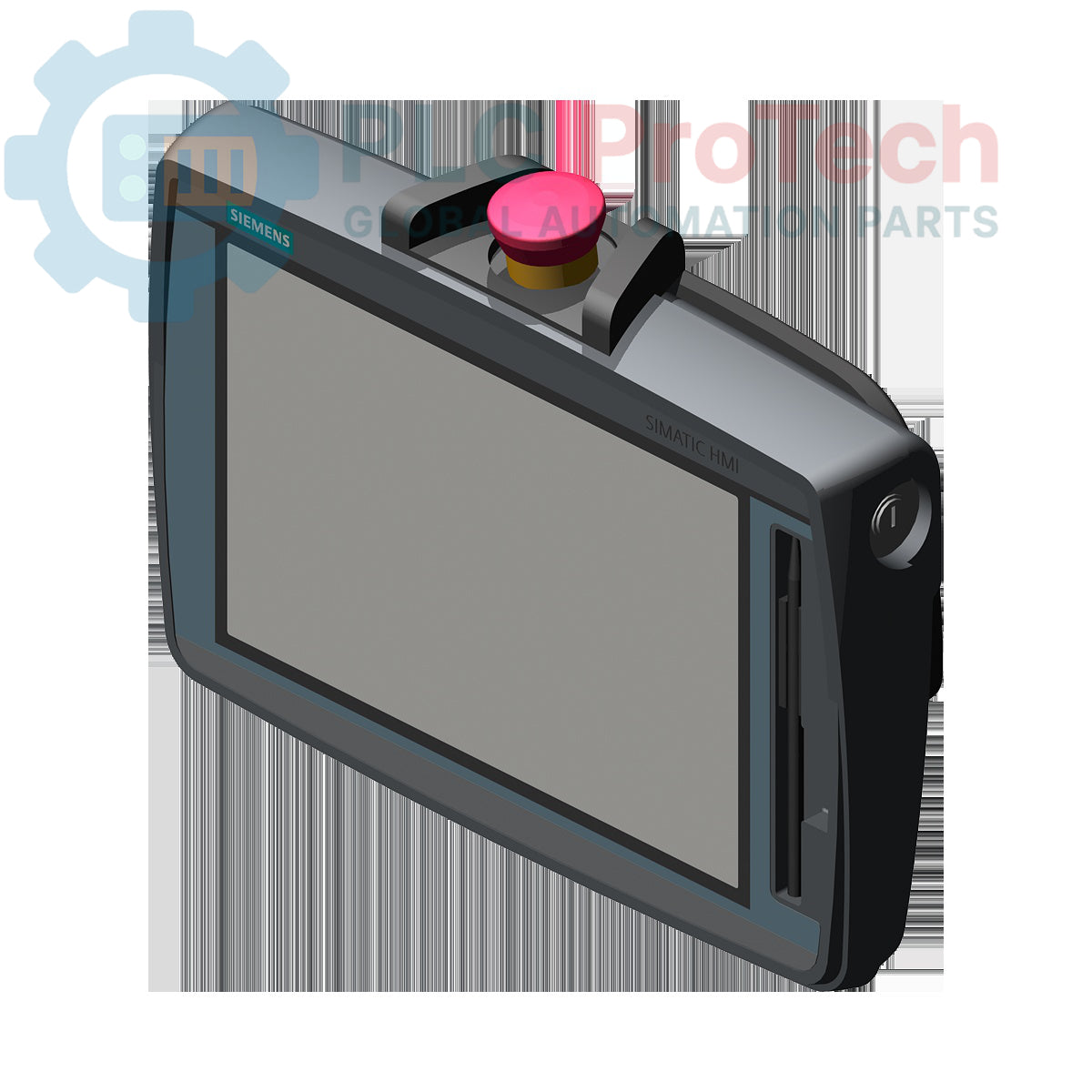

Siemens 6AV2145-6KB20-0AS0 SIMATIC HMI TP1000F MOBILE Panel

SKU 6AV2145-6KB20-0AS0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV2145-6KB20-0AS0
Origin Germany
Product Type: Mobile Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 1.77 kg
Dimensions: 30.75 x 9.10 x 22.40 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6AV2145-6KB20-0AS0 is a SIMATIC HMI TP1000F MOBILE Panel featuring a 10.0" TFT display, offering a resolution of 1280x800 pixels and 16 million colors for clear visualization. Designed for touch operation, it includes a touch pen, a PROFINET/Industrial Ethernet interface, a multimedia card slot, and a USB port. This mobile panel integrates essential safety and control elements such as a key-operated switch, an acknowledgement button, and a configurable emergency stop/stop button, all manageable from WinCC Comfort V14.

Features

10.1" TFT color display with 1280 x 800 pixel resolution
Supports 16 million display colors
Touch operation with included touch pen
Integrated PROFINET/Industrial Ethernet interface
Equipped with 1x multimedia card slot and 1x USB port
Includes a key-operated switch and an acknowledgement button
Features a configurable emergency stop/stop button
Configurable using WinCC Comfort V14 software

Applications

The Siemens 6AV2145-6KB20-0AS0 SIMATIC HMI TP1000F MOBILE Panel is suitable for a wide range of industrial applications requiring flexible and mobile operator control. Typical uses include machine operation and monitoring, process visualization, safety-related control tasks, and mobile diagnostics in manufacturing, automation, and material handling systems where operators need to interact with machinery from various vantage points.

Technical Specifications

Attribute	Value
Manufacturer	Siemens
Range	SIMATIC HMI
Product Phase	Active
Supply Voltage	24V DC
Screen Diagonal	10.1" inch
Display Resolution	1280 x 800 pixels
Color Display	Yes
Display Colors	16777216
Memory	12288 kbyte
Supporting Protocol	Profinet
Package Dimensions (Calculated)	30.75 x 9.10 x 22.40 cm
Shipping Weight	1.77 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	EAR99

Connections / Interfaces

1x PROFINET/Industrial Ethernet interface
1x Multimedia Card slot
1x USB interface
Key-operated switch
Acknowledgement button
Emergency Stop/Stop button

Installation Guidelines

Power Supply: Connect the device to a stable 24V DC power source, ensuring correct polarity and adequate current capacity.
Mounting: Securely mount the mobile panel in its intended operational area, ensuring clear visibility of the display and easy access to control elements.
Network Connection: Connect the PROFINET/Industrial Ethernet interface to the automation network using appropriate industrial Ethernet cables.
USB and Multimedia Card: Utilize the USB port for data transfer or peripheral connection, and the multimedia card slot for data storage or program loading as required.
Safety Elements: Ensure the key-operated switch, acknowledgement button, and emergency stop/stop button are correctly wired and configured according to safety standards and application requirements.
Configuration: Configure the HMI panel using Siemens WinCC Comfort V14 software, setting up screens, tags, alarms, and safety functions as per the application design.
Cable Management: Route all cables to prevent strain, interference, and damage, securing them with appropriate cable ties or conduits.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the display resolution of the 6AV2145-6KB20-0AS0?

The panel features a 10.1-inch TFT display with a resolution of 1280 x 800 pixels and supports 16 million colors.

Which software is used to configure this SIMATIC HMI panel?

The Siemens 6AV2145-6KB20-0AS0 is configurable using WinCC Comfort V14 software.

What communication interfaces are available on the panel?

It includes one PROFINET/Industrial Ethernet interface, one multimedia card slot, and one USB port.

Does this mobile panel include safety features?

Yes, it is equipped with a key-operated switch, an acknowledgement button, and a configurable emergency stop/stop button.

What is the required supply voltage for the device?

The panel operates on a 24V DC supply voltage.
