Description

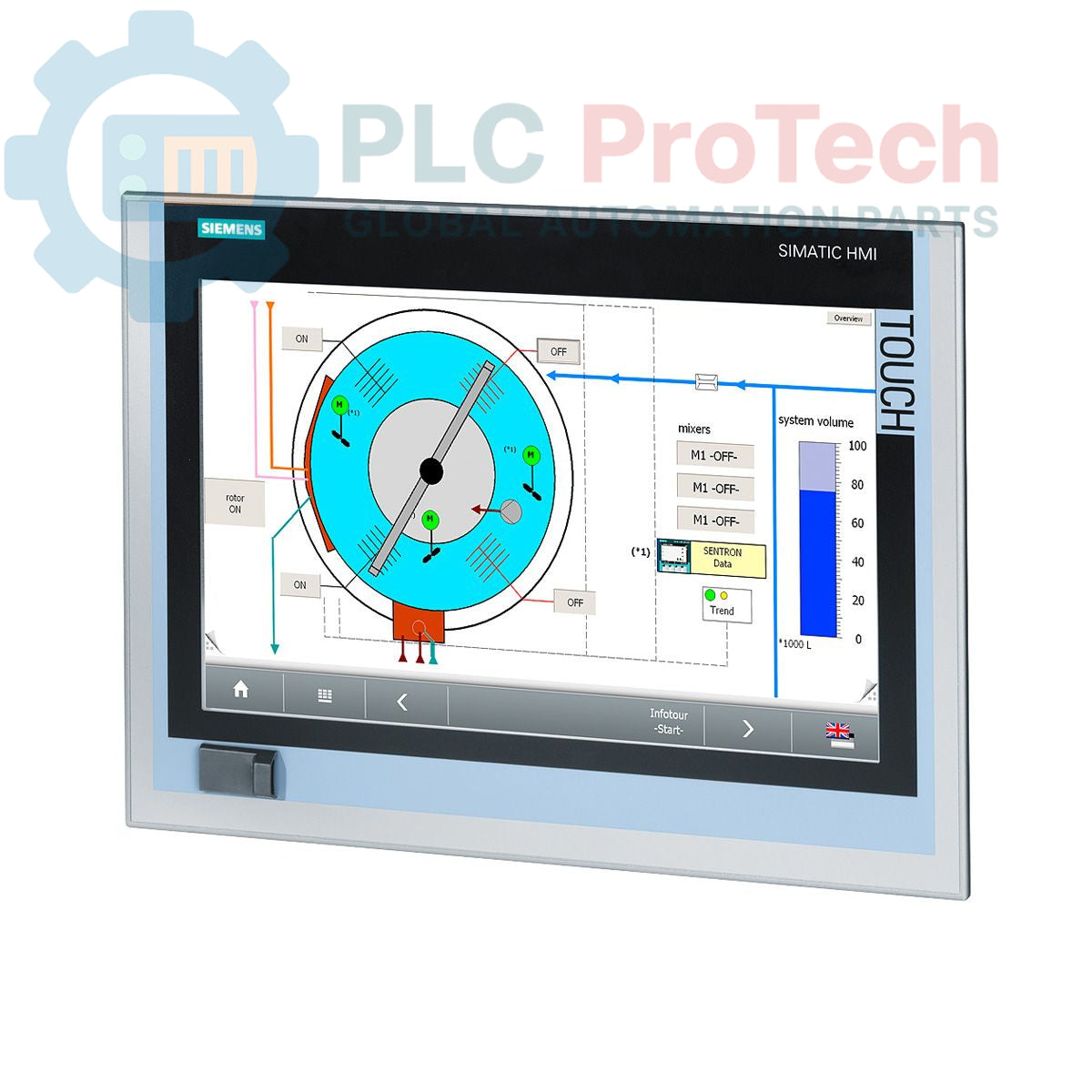

The Siemens 6AV7881-4AF00-4DT0 is a SIMATIC IPC277D Nanopanel PC, an integrated human-machine interface (HMI) solution for industrial environments. This unit features a 15-inch touch TFT display, an Intel Atom E660 (1.3 GHz) processor, and 2 GB of RAM for demanding visualization and control tasks. It is equipped with a comprehensive set of interfaces, including dual Gigabit Ethernet ports, multiple USB 2.0 ports, and a serial port, all powered by a standard 24 V DC supply. The system comes pre-loaded with Windows Embedded Standard 7 SP1 and includes licenses for WinCC Advanced RT, providing a ready-to-deploy platform for automation projects.

Features

• 15-inch color TFT resistive touch display
• Fanless design with Intel Atom E660 1.3 GHz processor
• 2 GB of integrated RAM
• 16 GB CompactFlash card for storage and operating system
• Pre-installed Windows Embedded Standard 7 SP1 (WES 7 SP1)
• Includes WinAC RTX F 2010, WinCC Advanced RT V13, and WinCC RT Advanced V14 license package
• Dual 10/100/1000 Mbps Ethernet interfaces for network connectivity
• Multiple USB 2.0 ports, including a front-accessible port
• Operates on a 24 V DC power supply

Applications

• Machine-level operator control and monitoring
• Process visualization (SCADA/HMI)
• Data acquisition and logging
• Factory and process automation control systems
• Manufacturing Execution Systems (MES) terminals

Technical Specifications

Installation Guidelines

1. 1
   Panel Cutout and Mounting: Prepare the control cabinet panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and rigid. Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps to maintain the specified ingress protection rating.
2. 2
   Protective Earth (PE) Connection: Connect the chassis to the control cabinet's protective earth system using a low-impedance conductor. Use the designated PE terminal on the Panel PC. This connection is critical for electrical safety and noise immunity.
3. 3
   Power Supply Wiring: Connect a stable, filtered 24 V DC power source to the designated power supply terminals. Verify correct polarity (+/-) before energizing. Use appropriately sized conductors and ensure the power supply is adequately rated for the PC's current draw.
4. 4
   Interface Connections: Connect Ethernet, USB, and serial cables as required by the application. Use shielded cables for all data communication lines and ensure shields are properly terminated to ground at one end to minimize electromagnetic interference (EMI). Route data cables separately from high-voltage power lines.
5. 5
   System Power-Up and Configuration: After verifying all connections, remove the LOTO device and apply power to the unit. The pre-installed operating system will boot. Proceed with network configuration, application software installation, and system commissioning as required.
