Siemens 6AV7861-2AA00-0AA0 SIMATIC FP77-15 Flat Panel

SKU 6AV7861-2AA00-0AA0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7861-2AA00-0AA0
Origin Germany
Product Type: Flat Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 0.003 kg
Dimensions: 39.50 x 30.00 x 17.00 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

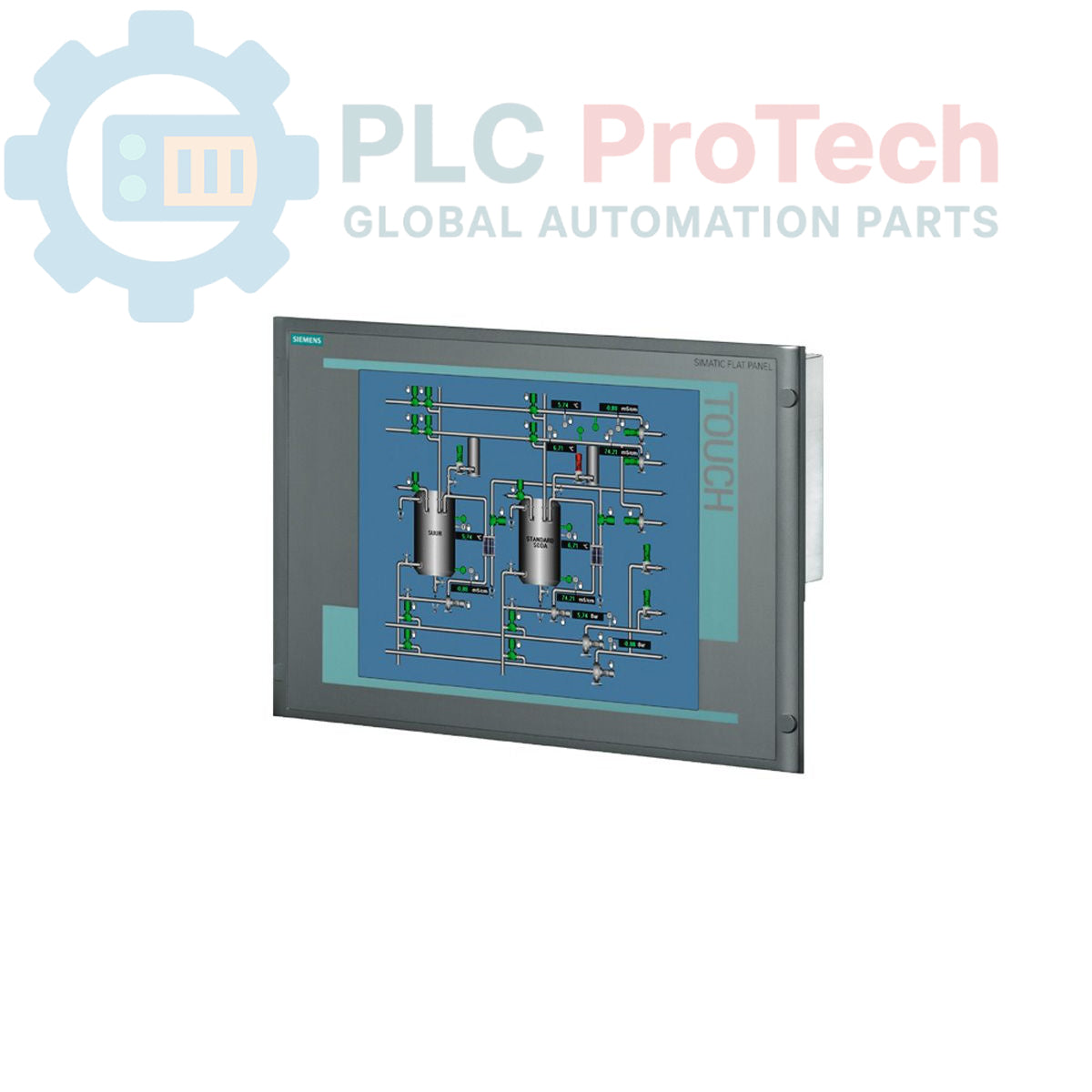

The Siemens 6AV7861-2AA00-0AA0 is a SIMATIC FP77-15 Flat Panel, designed as a human-machine interface for industrial automation applications. This unit features a 15-inch TFT display with a resolution of 1024x768 pixels, providing clear visualization for operators. It operates on a 24V DC power supply and offers versatile connectivity through both VGA and DVI-D interfaces. The panel includes a 1.8m VGA cable for immediate integration. This specific model is identified as an obsolete product phase within the SIMATIC FP subrange.

Features

15-inch TFT Display
1024x768 Pixel Resolution
24V DC Power Input
VGA and DVI-D Interfaces
Includes 1.8m VGA Cable

Applications

Industrial visualization and monitoring
Operator control stations for machinery
Process control systems
Human-machine interface (HMI) for automation environments

Technical Specifications

Manufacturer	Siemens
Brand	Siemens
Range	SIMATIC
Subrange	FP
Product Type	Flat Panel
Model	6AV7861-2AA00-0AA0
Display Size	15 inch
Display Type	TFT
Resolution	1024x768 pixels
Power Supply	24V DC
Interfaces	VGA, DVI-D
Included Cable	VGA Cable, 1.8m
Product Phase	Obsolete
Package Dimensions (Calculated)	39.50 x 30.00 x 17.00 cm
Shipping Weight	3.00 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	EAR99

Installation Guidelines

De-energize System: Before commencing installation, ensure all power to the control cabinet or mounting location is disconnected and locked out according to safety protocols.
Mounting: Securely mount the flat panel into the designated panel cutout. Ensure proper sealing to maintain the enclosure's ingress protection rating.
Power Connection: Connect the 24V DC power supply to the appropriate terminals on the flat panel. Observe correct polarity to prevent damage.
Video Signal Connection: Connect the video source (e.g., industrial PC, controller) to the flat panel using either the VGA or DVI-D interface. Utilize the provided 1.8m VGA cable if applicable.
Cable Management: Route all cables to prevent strain, interference, and damage. Use cable ties and conduits where necessary.
Grounding: Ensure the flat panel and its associated equipment are properly grounded to the system's protective earth.
Verify Connections: Double-check all power, video, and grounding connections for security and correctness.
Re-energize and Test: Restore power to the system and verify the flat panel's functionality, display quality, and responsiveness.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the display size and resolution of the FP77-15?

The FP77-15 features a 15-inch TFT display with a resolution of 1024x768 pixels.

What power supply is required for this flat panel?

The Siemens 6AV7861-2AA00-0AA0 requires a 24V DC power supply.

What video interfaces does this flat panel support?

It supports both VGA and DVI-D video interfaces.

Is a VGA cable included with the product?

Yes, a 1.8m VGA cable is included with the flat panel.

What is the product phase of this SIMATIC flat panel?

This model is currently in the obsolete product phase.
