Description

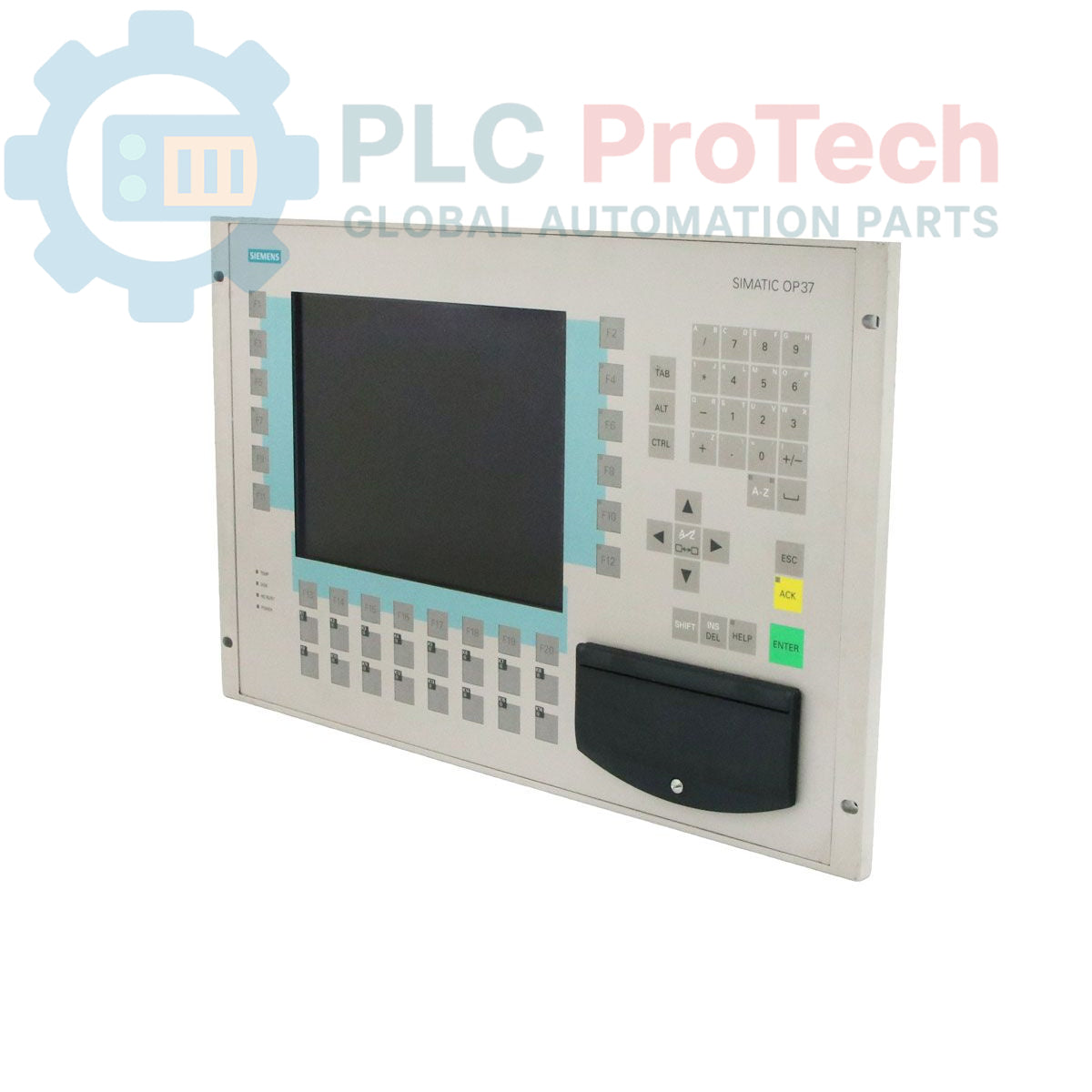

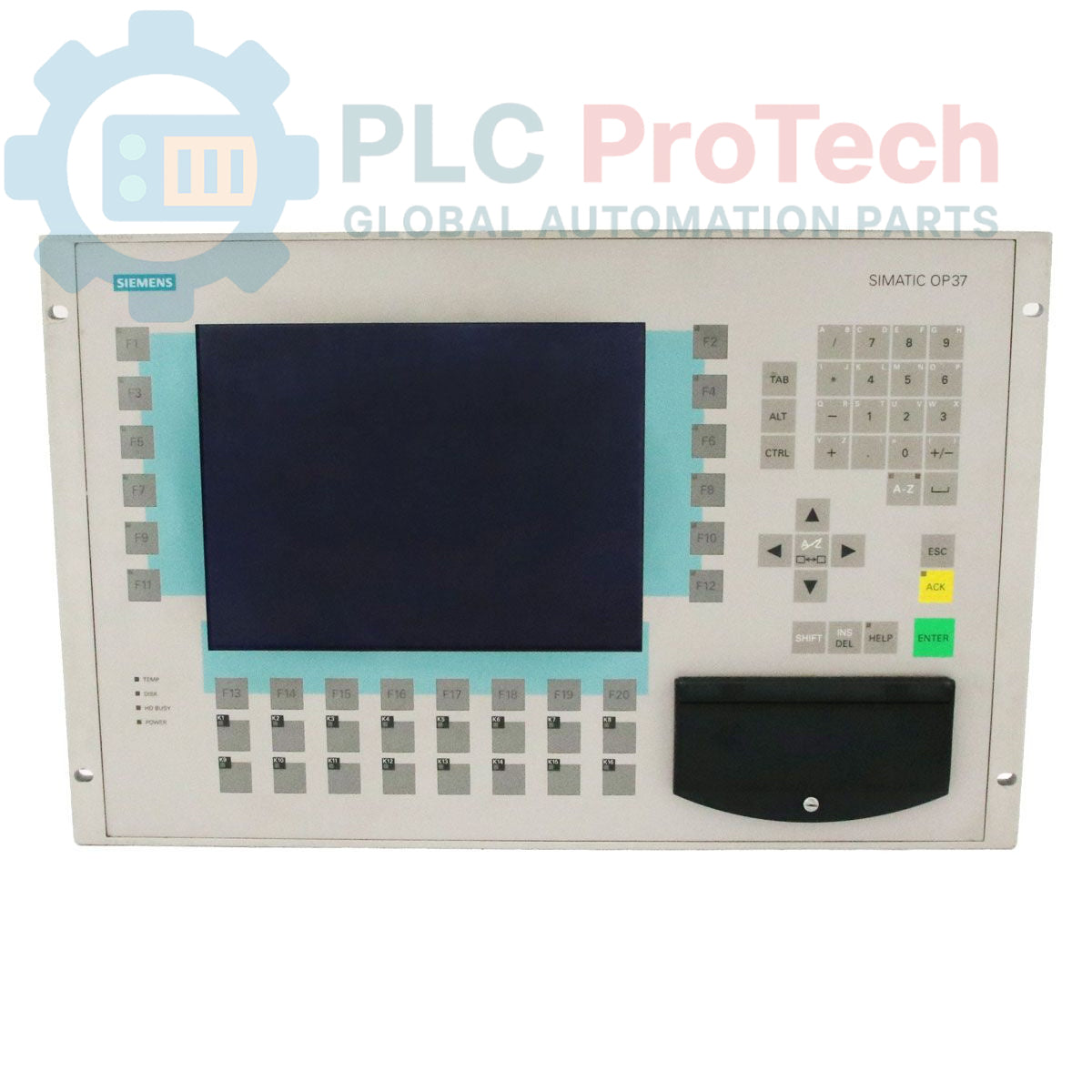

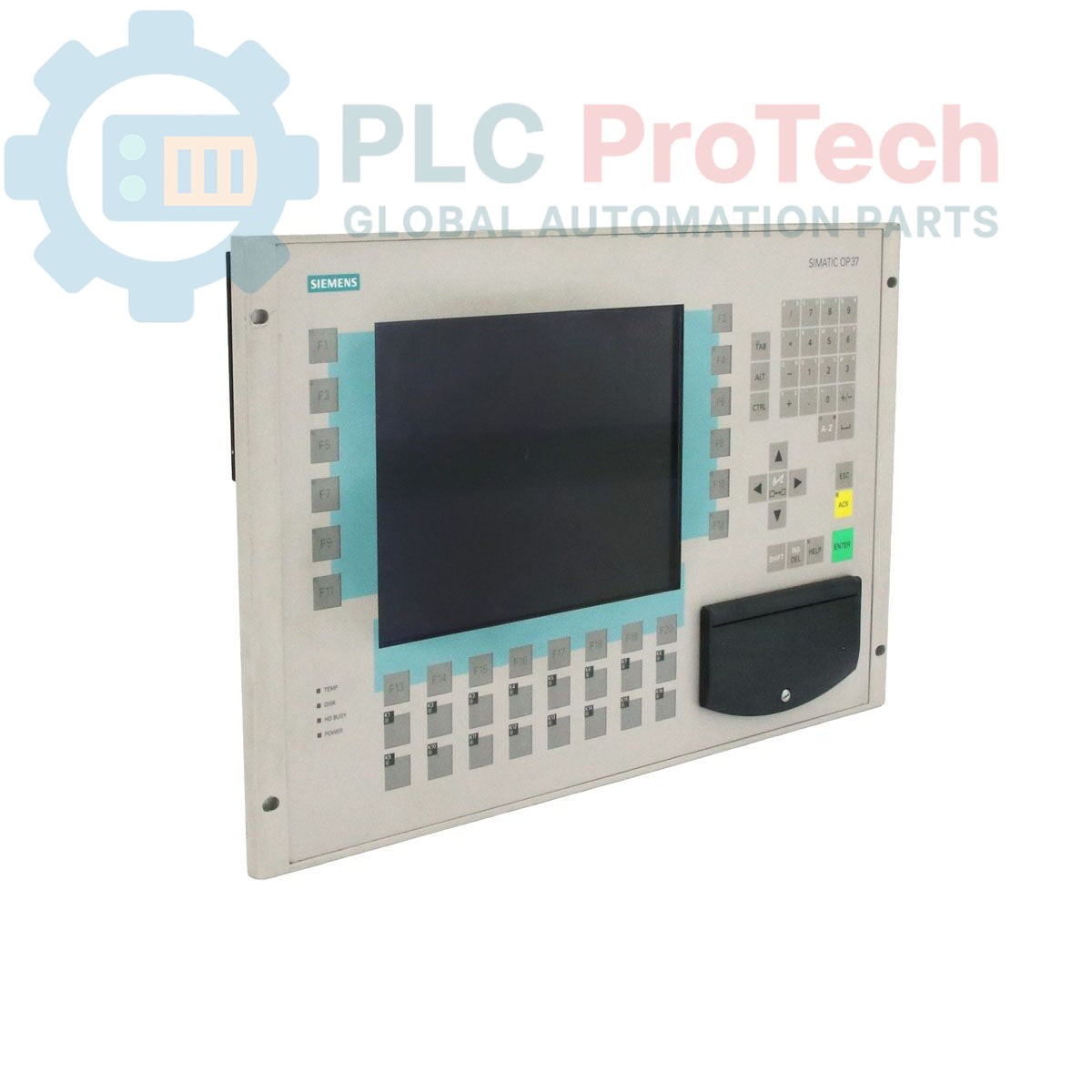

The Siemens 6AV3637-1LL00-0FX1 is an operator panel from the SIMATIC HMI OP37 series, designed for machine-level visualization and control in industrial settings. This unit is equipped with a Pentium 100 MHz processor and 8 MB of RAM to manage process control applications. It features a 10.4-inch STN color display with a resolution of 640 x 480 pixels for clear data representation. For data storage and transfer, the panel includes an integrated floppy disk drive and does not contain a hard drive. Operation is managed through a durable, key-based interface, suitable for demanding production environments.

Features

• 10.4-inch STN color graphical display
• 640 x 480 pixel display resolution
• Powered by a Pentium 100 MHz processor
• Equipped with 8 MB of system RAM
• 2048 kbyte user memory for applications
• Physical key-based operator controls
• Integrated floppy disk drive for data handling
• Requires a 24V DC power supply

Applications

• Machine control and monitoring
• Process visualization systems
• Factory automation and data entry
• Supervisory control and data acquisition (SCADA) interfaces

Technical Specifications

Installation Guidelines

1. 1 De-energize Equipment: Isolate and de-energize all power sources to the control cabinet or mounting location. Verify the absence of voltage before proceeding.
2. 2 Prepare Panel Cutout: Ensure the mounting cutout in the enclosure panel corresponds to the HMI's required dimensions. Clean the mounting surface to ensure a proper seal.
3. 3 Mount the HMI: Insert the operator panel into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to maintain the IP rating.
4. 4 Connect Protective Earth (PE): Connect a low-impedance protective earth conductor to the designated PE terminal on the HMI chassis. This is critical for safety and noise immunity.
5. 5 Connect Power Supply: Connect the 24V DC power supply to the designated power terminals. Ensure correct polarity is observed. Use appropriately sized conductors for the load.
6. 6 Connect Communication Cables: Connect the necessary communication cables (e.g., PROFIBUS, MPI) to their respective ports. Ensure proper shielding and grounding practices are followed to prevent interference.
7. 7 Final Checks and Power-Up: Verify all connections are secure. Remove LOTO devices and re-energize the cabinet. The HMI should power on and begin its startup sequence. Proceed with software configuration and testing.
