Description

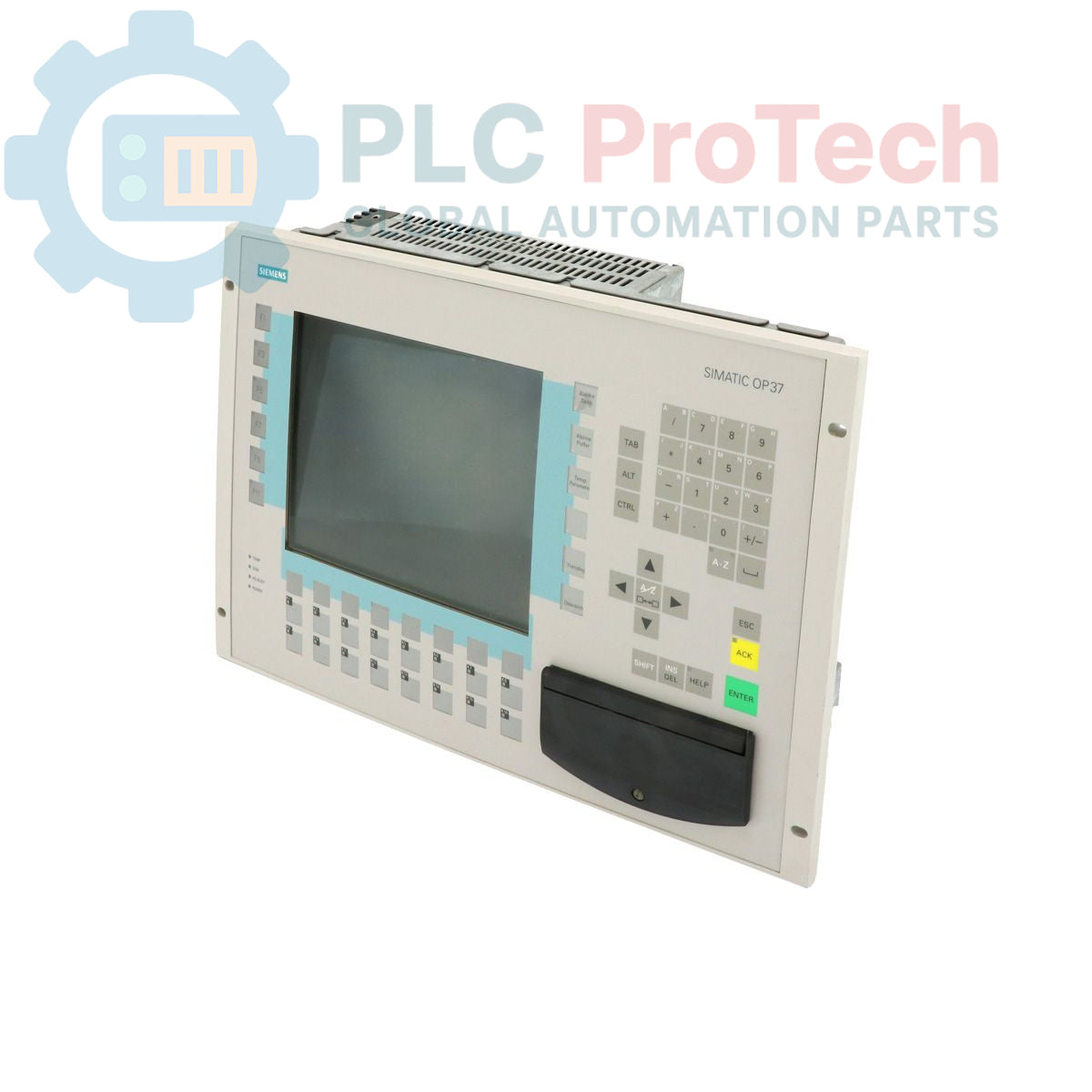

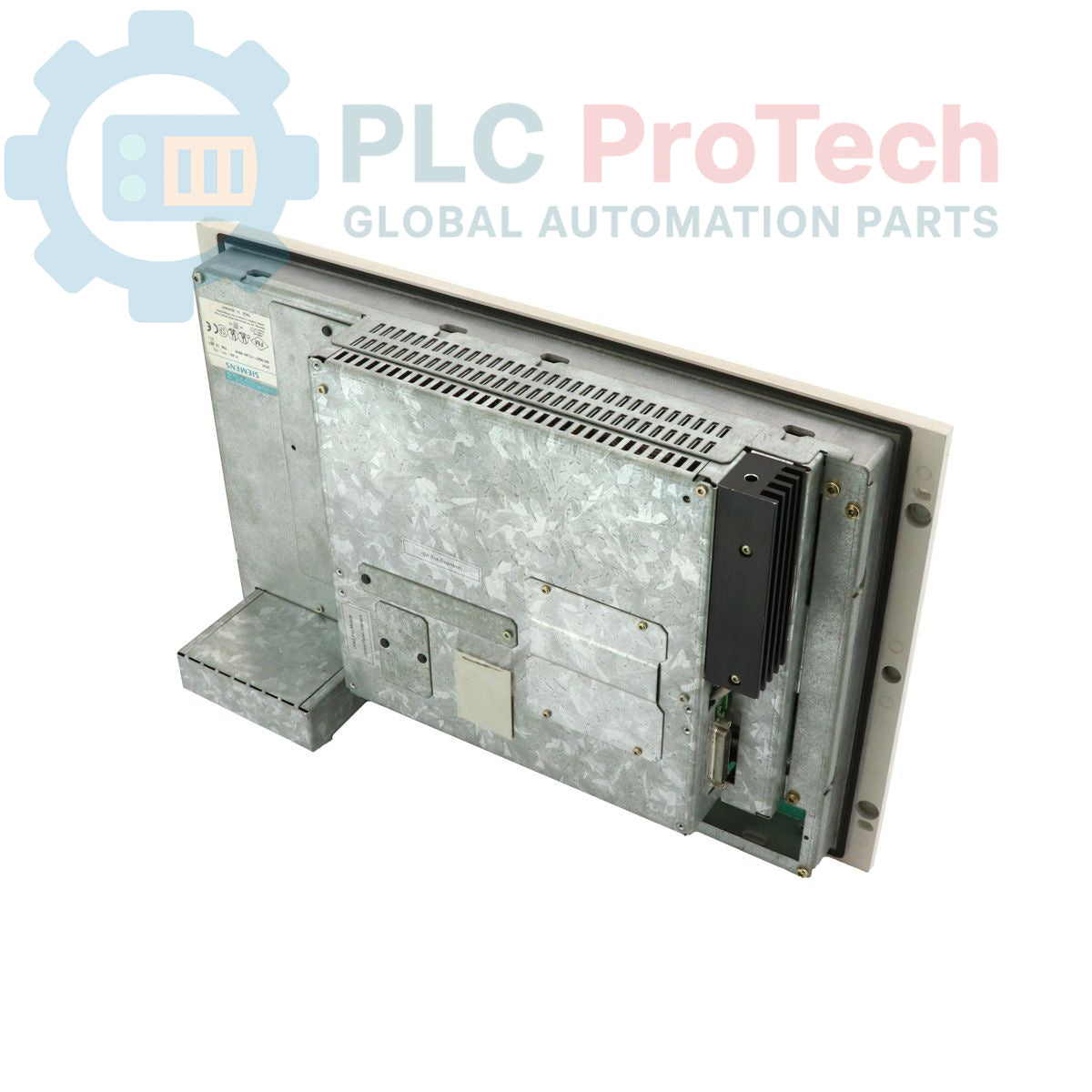

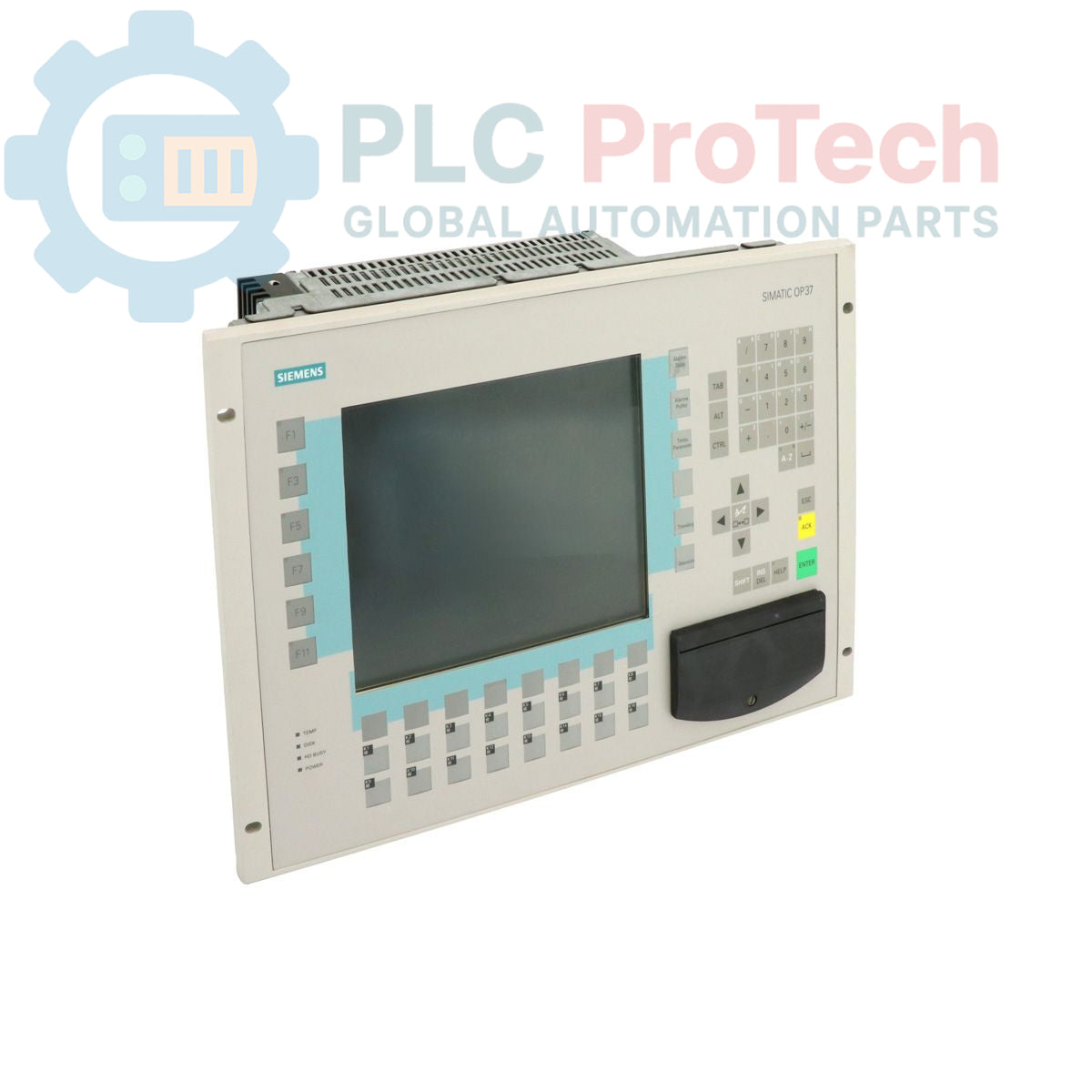

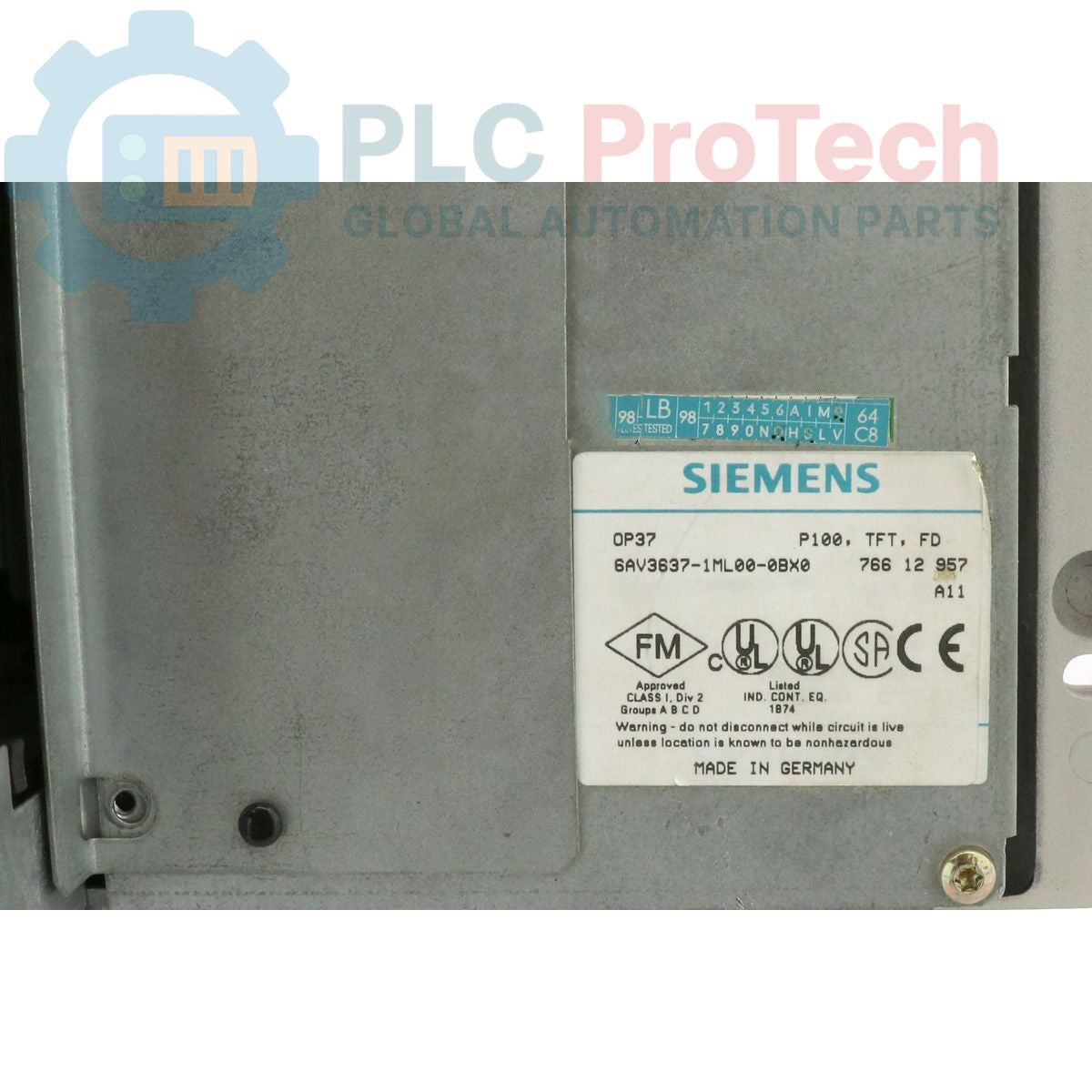

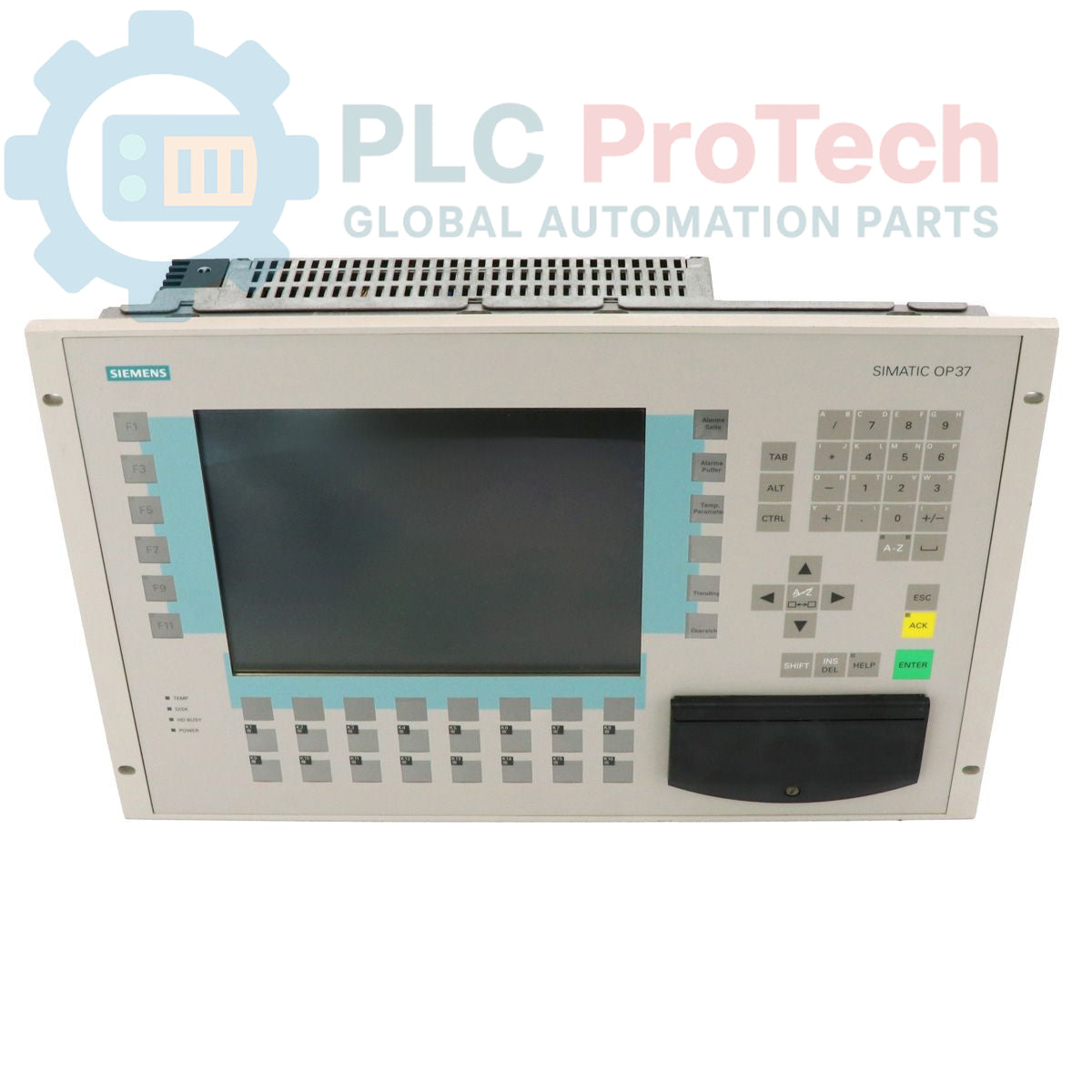

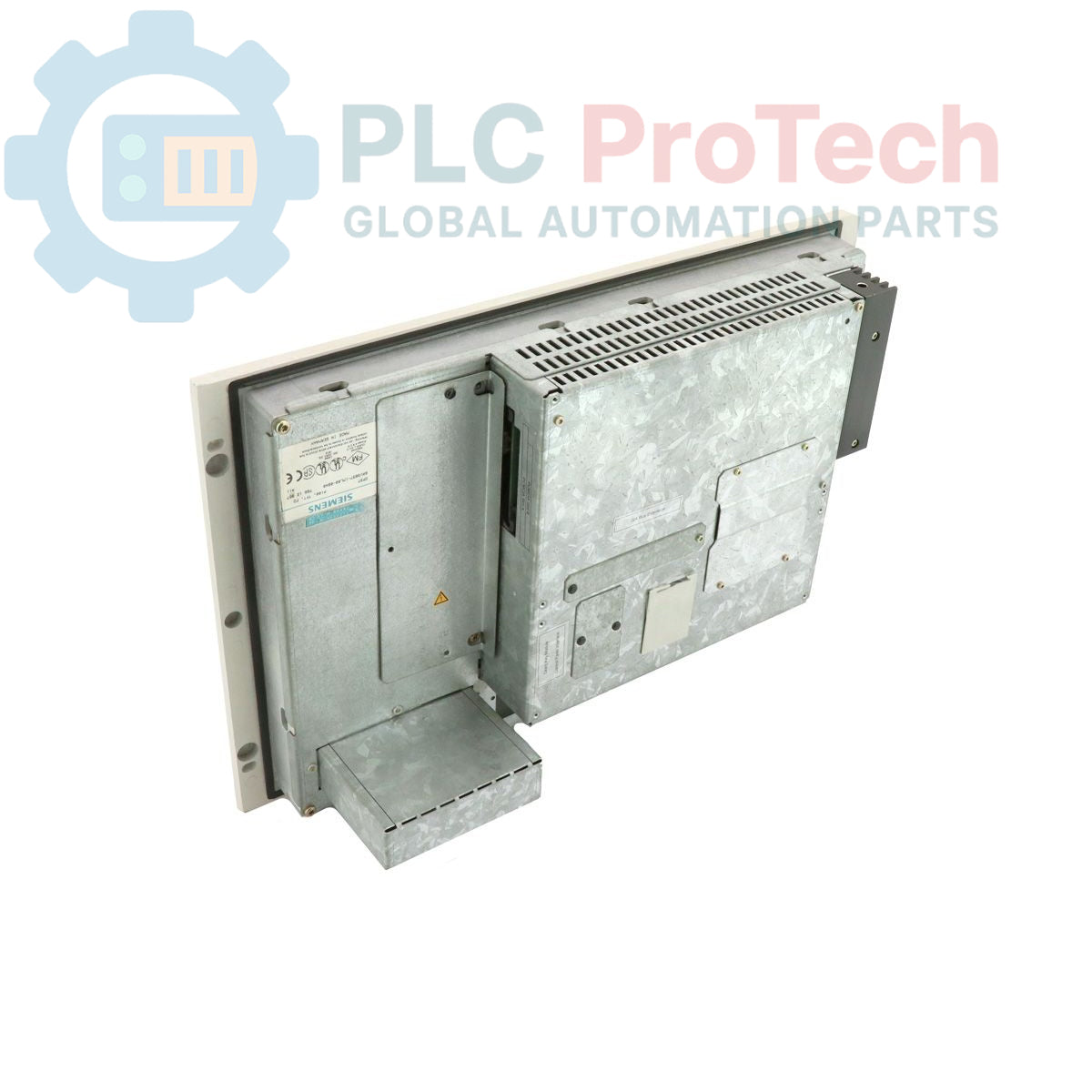

The Siemens 6AV3637-1ML00-0BX0 is an OP 37 series operator panel for industrial machine and process control applications. This HMI is engineered with a 100 MHz Pentium processor and 8 MB of system RAM to provide responsive performance for visualization and control tasks. It features a 10.4-inch LC color graphic TFT display with a resolution of 640 x 480 pixels, delivering clear process feedback. For legacy data handling, the unit is equipped with an integrated floppy disk drive and is supplied without an internal hard drive. Its robust construction ensures dependable operation in demanding factory environments.

Features

• ■10.4-inch color TFT display with 640 x 480 pixel resolution
• ■Powered by a 100 MHz Pentium processor
• ■Equipped with 8 MB of system RAM and 2048 kbyte of user memory
• ■Key-based operator interface for tactile control
• ■Integrated floppy disk drive for legacy project transfer
• ■Operates on a standard 24 VDC industrial power supply

Applications

• ■Machine control and process visualization
• ■Automated manufacturing lines
• ■Replacement HMI for legacy SIMATIC systems
• ■Data logging and recipe management

Technical Specifications

Installation Guidelines

1. 1 Verify the panel cutout dimensions in the enclosure door match the HMI's required mounting dimensions. Ensure the mounting surface is clean, flat, and free of debris.
2. 2 Insert the operator panel into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them sequentially and evenly to ensure a proper seal.

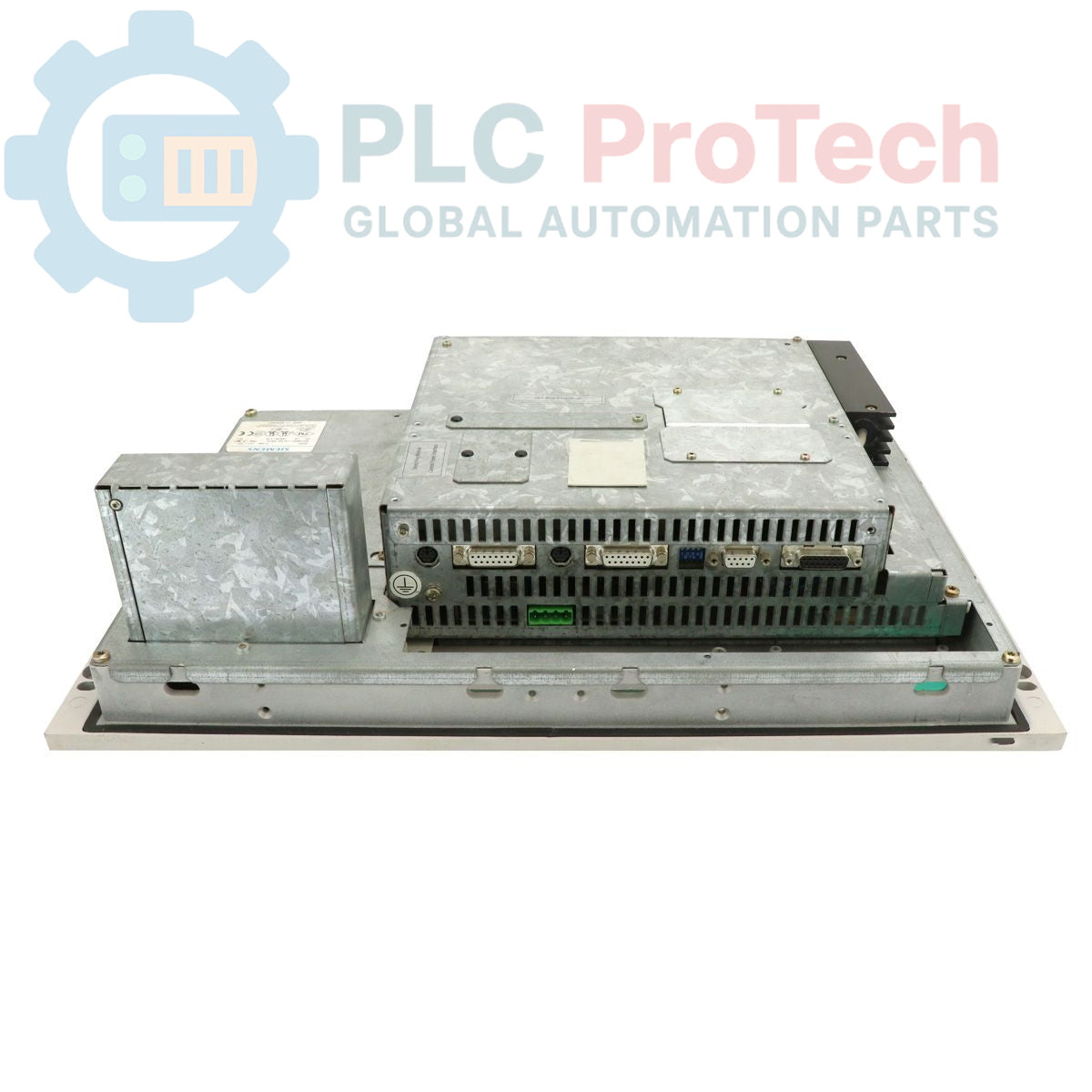

3. 3 Connect the 24 VDC power supply to the designated terminals on the rear of the unit. Use appropriately sized conductors and observe correct polarity (+/-).
4. 4 Establish a low-impedance connection from the HMI's protective earth (PE) terminal to the main cabinet ground bar. This is critical for operator safety and noise immunity.
5. 5 Connect communication cables (e.g., PROFIBUS, MPI/DP) to the appropriate ports. Ensure cable shields are properly terminated at one end to prevent ground loops.
