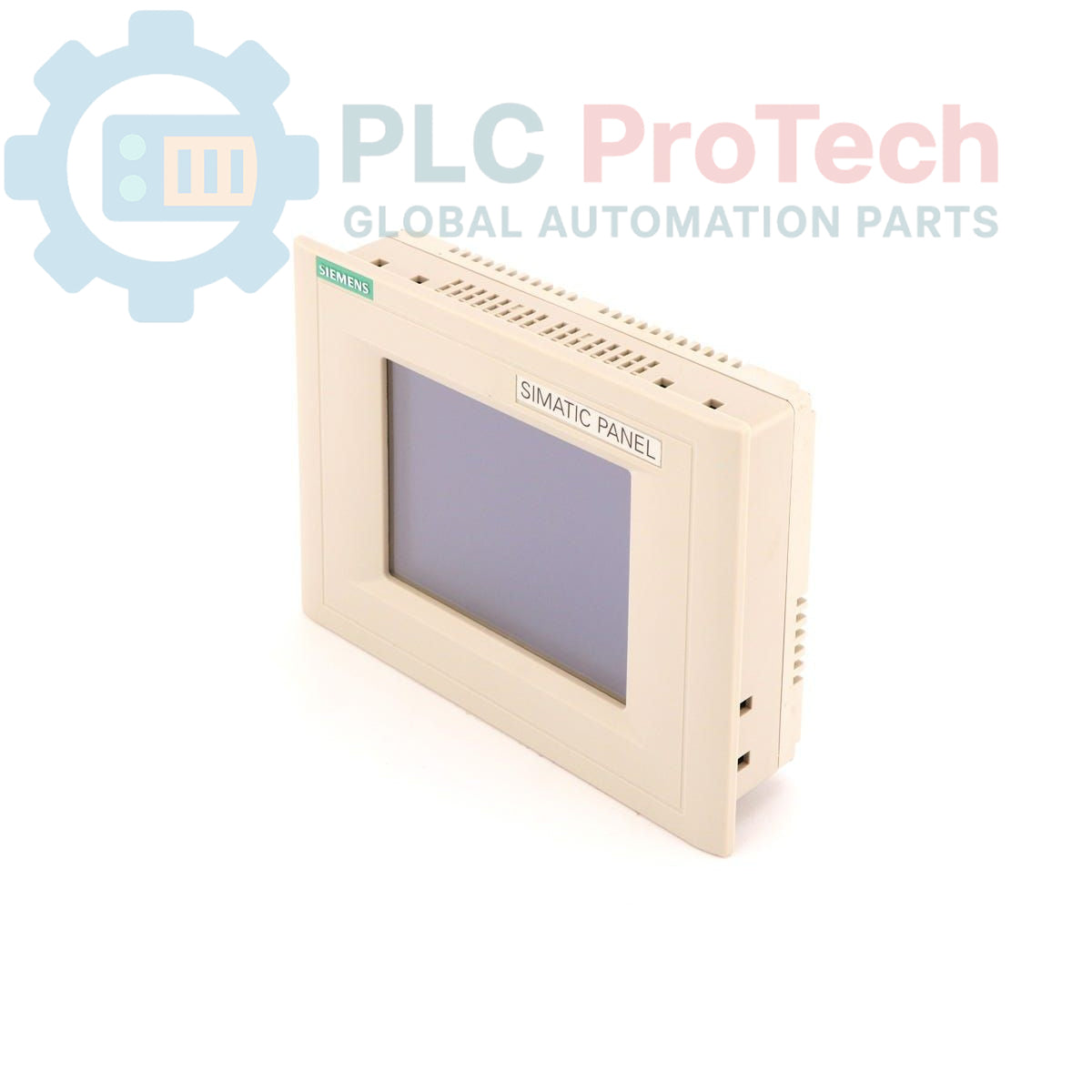

Siemens 6AV6545-5BC00-0BQ0 SIMATIC HMI TP170A Touch Panel

SKU 6AV6545-5BC00-0BQ0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV6545-5BC00-0BQ0
  • Origin Germany
  • Product Type: Touch Panel
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 3.24 kg
  • Dimensions: 19.00 x 32.50 x 11.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Simatic HMIs Touch Panels
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV6545-5BC00-0BQ0 is a SIMATIC HMI TP170A Touch Panel, identified as a customer-specific design version C. This unit is delivered with a standard front and is part of the SIMATIC HMI Touch Panels 170 series, designed for industrial human-machine interface applications. It facilitates operator control and monitoring in various automation environments.

Features

  • Customer-specific design version C
  • Delivered with standard front

Applications

The Siemens SIMATIC HMI TP170A Touch Panel is typically deployed in industrial settings for:
  • Machine operation and control
  • Process visualization and monitoring
  • Data input and parameter adjustment
  • Alarm management and diagnostics
  • Integration into SIMATIC automation systems

Technical Specifications

Parameter Value
Brand Siemens
Manufacturer Siemens
Range SIMATIC HMI
Subrange Touch Panels 170 series
Type of Product Touch panel
PLM Product Phase Obsolete
Package Dimensions (Calculated) 19.00 x 32.50 x 11.00 cm
Shipping Weight 3.24 kg
Commodity Code 85371091
Export Control Regulations (ECCN) N
Country of Origin Not specified

Installation Guidelines

Proper installation ensures reliable operation and safety for the Siemens 6AV6545-5BC00-0BQ0 Touch Panel.
  1. De-energize System: Before beginning any installation or wiring, ensure all power to the control system and the HMI mounting area is completely de-energized and locked out.
  2. Mounting: Securely mount the touch panel into a prepared panel cutout. Ensure adequate clearance for ventilation and cable routing.
  3. Power Connection: Connect the power supply according to the specified voltage and polarity. Verify all connections are tight and correct before applying power.
  4. Communication Wiring: Connect necessary communication cables (e.g., MPI, PROFIBUS, Ethernet if applicable) to the designated ports. Ensure proper shielding and grounding for communication lines to prevent interference.
  5. Grounding: Establish a robust protective earth (PE) connection to the HMI chassis to ensure electrical safety and minimize electromagnetic interference.
  6. Cable Routing: Route power and communication cables separately where possible to avoid signal interference. Use cable ties to secure wiring and maintain an organized installation.
  7. Environmental Considerations: Ensure the installation environment meets the HMI's specified operating conditions regarding temperature, humidity, and vibration.
  8. Power-Up and Test: After all connections are verified, re-energize the system and perform functional tests to confirm proper operation of the touch panel and its interface with the PLC.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the Siemens 6AV6545-5BC00-0BQ0?
This unit functions as an industrial Human-Machine Interface (HMI) for operator control, process visualization, and monitoring within automation systems.
Which product series does this touch panel belong to?
It is part of the Siemens SIMATIC HMI Touch Panels 170 series.
Is the 6AV6545-5BC00-0BQ0 still actively manufactured?
According to the provided specifications, the product phase for this model is 'Obsolete'.
