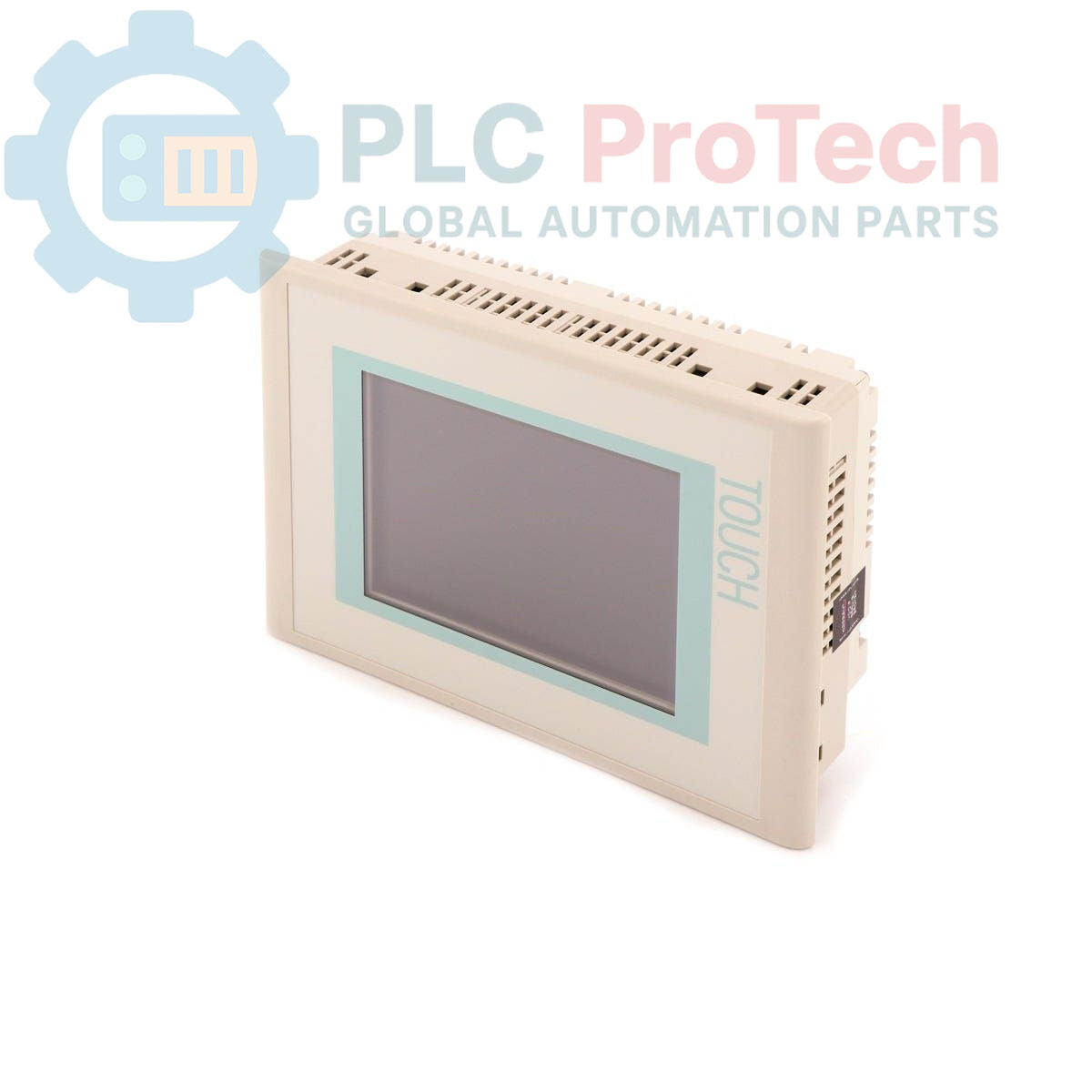

Siemens 6AV6642-5BA00-0BP0 SIMATIC TP 177 B DP/PN Touch Panel

SKU 6AV6642-5BA00-0BP0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV6642-5BA00-0BP0
  • Origin Germany
  • Product Type: Touch Panel
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 1.13 kg
  • Dimensions: 33.00 x 23.50 x 6.60 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Simatic HMIs Touch Panels
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV6642-5BA00-0BP0 is a SIMATIC TP 177 B DP/PN Touch Panel from the SIMATIC HMI 170 series, designed for human-machine interface applications in industrial environments. This unit is delivered with a standard front and is based on the 6AV6642-0BA01-1AX0 model. It serves as an operator interface for visualizing and controlling industrial processes, providing a user-friendly platform for interaction. The product phase for this model is listed as obsolete.

Features

  • Part of the SIMATIC HMI 170 series
  • Designated as SIMATIC TP 177 B DP/PN
  • Delivered with a standard front
  • Based on the 6AV6642-0BA01-1AX0 model

Applications

  • Industrial process visualization and control
  • Machine operation and monitoring
  • Data input and display for automation systems
  • Operator interface for various manufacturing and process industries

Technical Specifications

Brand Siemens
Manufacturer Siemens
Range SIMATIC HMI
Subrange Touch Panels 170 series
Type of Product Touch panel
Product Phase Obsolete
Package Dimensions (Calculated) 33.00 x 23.50 x 6.60 cm
Shipping Weight 1.13 kg
Commodity Code 85371091
Export Control Regulations (ECCN) N

Installation Guidelines

  1. De-energize System: Before beginning any installation or maintenance, ensure that all power to the control system and the HMI panel's mounting location is completely de-energized and locked out according to safety protocols.
  2. Mounting: Secure the touch panel in its designated panel cutout. Ensure proper sealing to maintain the specified IP rating, if applicable, against dust and moisture.
  3. Cable Routing: Route all communication and power cables away from sources of electrical noise (e.g., power lines, motor drives) to prevent interference. Use shielded cables where appropriate and ensure proper grounding of shields.
  4. Power Connection: Connect the power supply according to the panel's voltage requirements, observing correct polarity.
  5. Communication Connections: Connect the necessary communication cables (e.g., PROFIBUS DP, PROFINET, if applicable to the specific DP/PN configuration) to the respective ports on the panel and the automation system.
  6. Grounding: Ensure the panel is properly grounded to the control cabinet's protective earth to minimize electromagnetic interference and for safety.
  7. Environmental Considerations: Verify that the installation environment meets the panel's specified temperature, humidity, and vibration ratings to ensure reliable operation.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the Siemens 6AV6642-5BA00-0BP0?
The 6AV6642-5BA00-0BP0 is a SIMATIC TP 177 B DP/PN Touch Panel designed for human-machine interface applications, enabling visualization and control of industrial processes.
What is the product phase of this SIMATIC TP 177 B DP/PN?
This specific SIMATIC TP 177 B DP/PN model is currently listed as obsolete.
What are the package dimensions of the unit?
The package dimensions are 33.00 cm (length) x 23.50 cm (width) x 6.60 cm (height).
What is the shipping weight of this touch panel?
The shipping weight for this touch panel is 1.13 kg.
What does the 'DP/PN' designation typically indicate for Siemens HMI panels?
In Siemens HMI terminology, 'DP/PN' typically indicates support for both PROFIBUS DP and PROFINET communication protocols, allowing flexible integration into various network architectures.
