Description

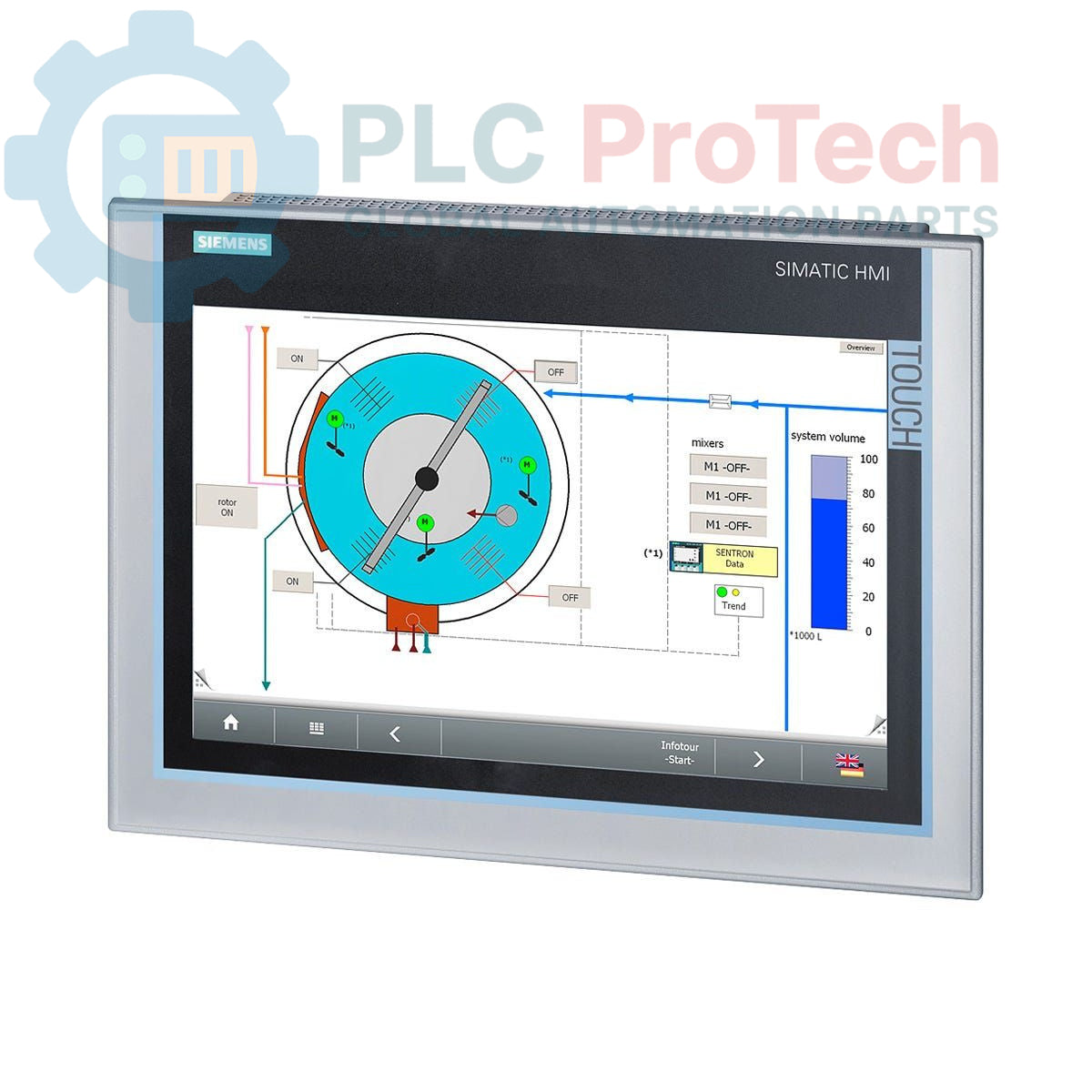

The Siemens 6AV7240-3AB04-3AE0 is a SIMATIC IPC 477D series Panel PC designed for human-machine interface (HMI) and control tasks in industrial environments. This unit features a 12-inch touch display and is powered by an Intel Core i3-3217UE processor with 2 GB of RAM. It is equipped with multiple communication interfaces, including two Gigabit Ethernet ports and four USB ports. The system operates on a 24 V DC industrial power supply and comes pre-loaded with Windows Embedded Standard 7 and a WinCC RT Advanced license package, making it a comprehensive solution for plant-floor visualization and data logging.

Features

• 12-inch TFT touch display for operator interaction
• Powered by an Intel Core i3-3217UE processor
• Equipped with 2 GB of system memory
• Dual Gigabit Ethernet (IE/PN) interfaces for network connectivity
• Four rear-mounted USB ports for peripherals
• One RS-232 serial communication port
• Windows Embedded Standard 7 (32-bit) on an 8 GB CFast card
• Includes WinCC RT Advanced V13 SP1 license (2048 PowerTags)
• Includes WinCC RT Advanced V15 license package

Applications

• Machine-level HMI and visualization
• Process control and monitoring systems
• Data acquisition and logging
• Manufacturing execution systems (MES) interface
• Automotive and assembly line control

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet or mounting panel is fully de-energized and locked out before beginning work. Verify the absence of voltage.
2. 2 Prepare the panel cutout according to the device's mechanical specifications. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps. Do not overtighten the clamps, as this can warp the bezel.
4. 4 Connect a dedicated protective earth (PE) or functional ground wire to the designated terminal on the IPC chassis. This is critical for safety and noise immunity.
5. 5 Connect the 24 V DC power supply, ensuring correct polarity. Use appropriately sized wiring for the load and distance from the power source.
6. 6 Connect Ethernet, USB, and any other required communication cables. Ensure proper cable routing and strain relief to prevent accidental disconnection.
7. 7 After all connections are secure, remove the lockout and re-energize the panel. Power on the IPC and verify that the operating system boots correctly.
