Description

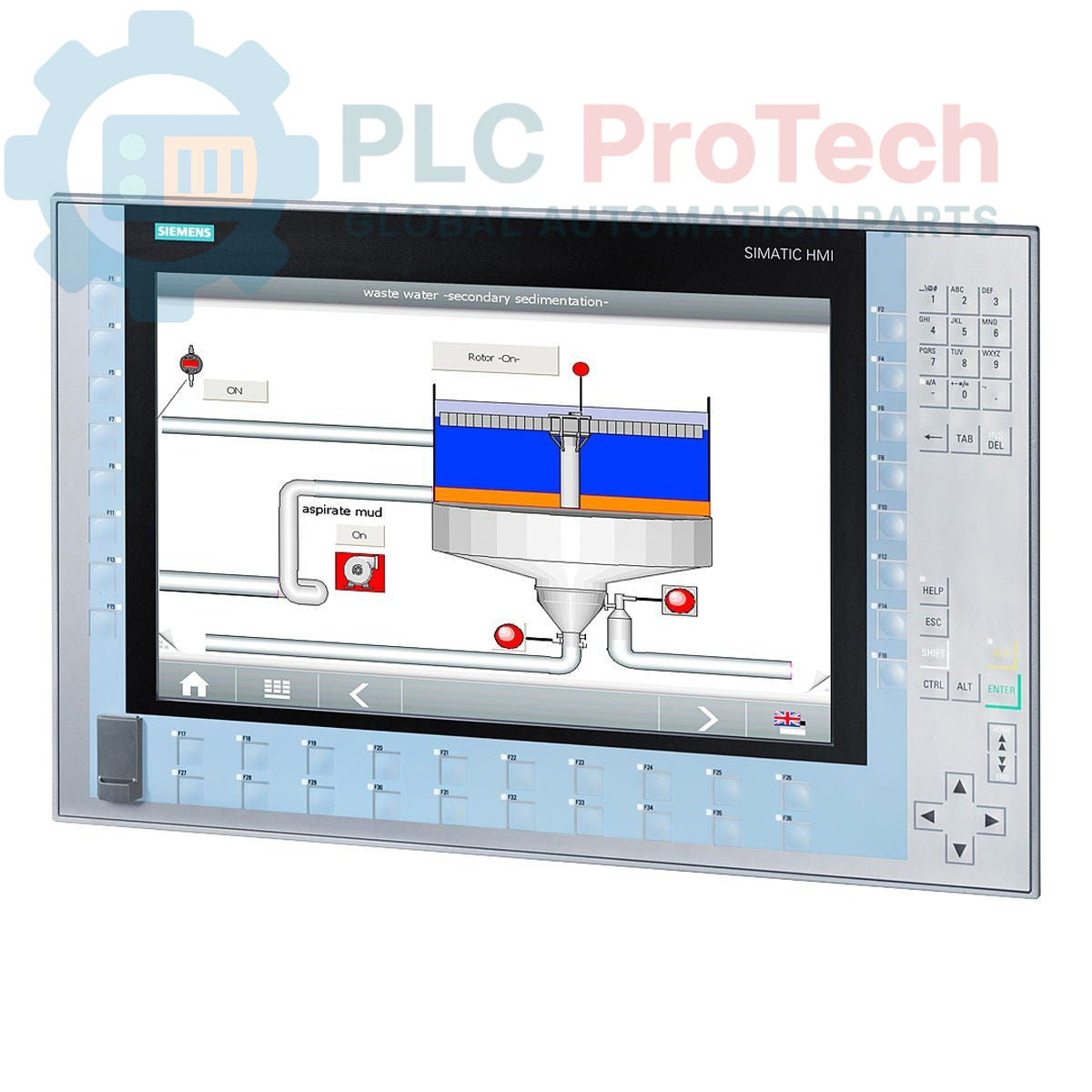

The Siemens 6AV7240-3CC04-2AA0 is a SIMATIC IPC 477D Panel PC, featuring a 15-inch touch/key display for industrial human-machine interface applications. This robust industrial computer is equipped with an Intel Core i3-3217UE processor, 4 GB of RAM, and a 24 V DC industrial power supply. It provides versatile connectivity with four USB ports on the back and one on the front, along with dual Gigabit Ethernet interfaces (IE/PN) and a single RS-232 serial port. The unit supports Windows Embedded Standard 7 (32-bit) and offers cFAST 4 GB storage capability (for software, if no internal mass storage is present), though it is delivered without internal mass storage or SIMATIC software.

Features

• 15-inch Touch/Key Display
• Intel Core i3-3217UE Processor
• 4 GB RAM
• Multiple USB Interfaces (4 rear, 1 front)
• Dual Gigabit Ethernet (IE/PN)
• 1x RS-232 Serial Interface
• 24 V DC Industrial Power Supply
• Designed for Windows Embedded Standard 7, 32-bit (software not included)
• cFAST 4 GB support (if no internal mass storage)

Applications

• Industrial control and visualization systems
• Human-Machine Interface (HMI) tasks in manufacturing
• Data acquisition and processing in factory automation
• Machine operation and monitoring
• Embedded system deployments requiring a robust PC platform

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Ensure the system is de-energized before beginning installation or connection procedures.
2. Mount the Panel PC securely in a suitable industrial enclosure or panel, ensuring adequate ventilation and clearance for cable routing.
3. Connect the 24 V DC industrial power supply to the designated power input terminals, observing correct polarity.
4. Properly ground the Panel PC chassis to the protective earth to minimize electrical noise and ensure safety.
5. Connect Ethernet cables to the Gbit Ethernet ports for network communication.
6. Connect USB devices to the available USB ports as required.
7. Connect any RS-232 serial devices to the serial interface.
8. Verify all connections are secure and correctly terminated before applying power.
9. Adhere to all local electrical codes and safety regulations during installation.
