Description

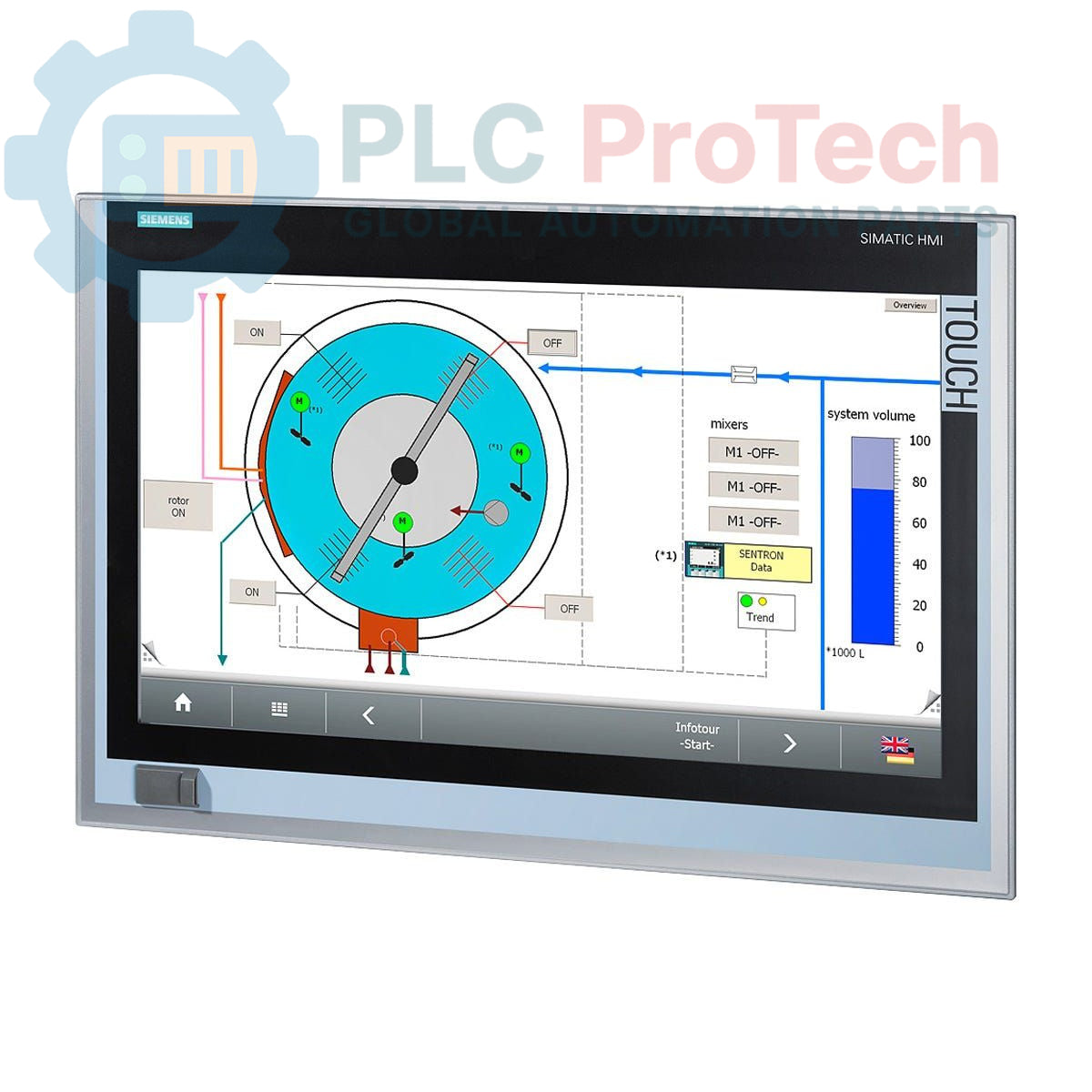

The Siemens 6AV7240-3EC07-0HA0 is a SIMATIC IPC 477D series Panel PC designed for industrial automation and control applications. This unit features a 22-inch touchscreen display, powered by an Intel Core i3-3217UE processor with 4 GB of RAM. It is equipped with an 80 GB MLC solid-state drive (SSD) and comes pre-installed with the Windows 7 Ultimate 64-bit operating system. Connectivity is provided through dual Gigabit Ethernet ports, multiple USB interfaces, and an RS-232 serial port, all powered by a 24 V DC industrial power supply.

Features

• 22-inch widescreen touch display for operator interaction
• Intel Core i3-3217UE processor for reliable performance
• 4 GB of system memory
• 80 GB standard MLC solid-state drive for fast boot and data access
• Integrated DVD drive
• Dual Gigabit Ethernet ports supporting IE/PN protocols
• Multiple USB ports on front and rear panels for peripheral connectivity
• Operates on a 24 V DC industrial power supply

Applications

• Human-Machine Interface (HMI) for process control
• Data acquisition and logging in manufacturing environments
• Supervisory Control and Data Acquisition (SCADA) nodes
• Machine vision and quality control stations
• Shop floor control and production monitoring

Technical Specifications

Installation Guidelines

1. 1 Panel Mounting: Ensure the control cabinet or panel cutout meets the specified dimensions for the 22-inch display. Secure the Panel PC using all provided mounting clamps, tightening them evenly to the manufacturer's recommended torque to ensure a proper seal and prevent chassis warping.
2. 2 Power Connection: Connect a stable, filtered 24 V DC power source to the designated power input terminals. Use appropriately sized wiring for the expected current draw. Verify correct polarity (+/-) before applying power.
3. 3 Grounding: Connect the chassis ground terminal to the main control panel's protective earth (PE) ground bus using a low-impedance conductor. Proper grounding is essential for operator safety and noise immunity.
4. 4 Interface Connections: Connect Ethernet, USB, and RS-232 cables as required. Use shielded cables for all data communication lines and ensure shields are properly terminated to minimize electromagnetic interference (EMI). Maintain separation between power and signal wiring.
5. 5 System Startup: Once all connections are secure, re-apply power to the system. The Panel PC will boot into the pre-installed Windows 7 operating system. Proceed with application software installation and network configuration.
