Description

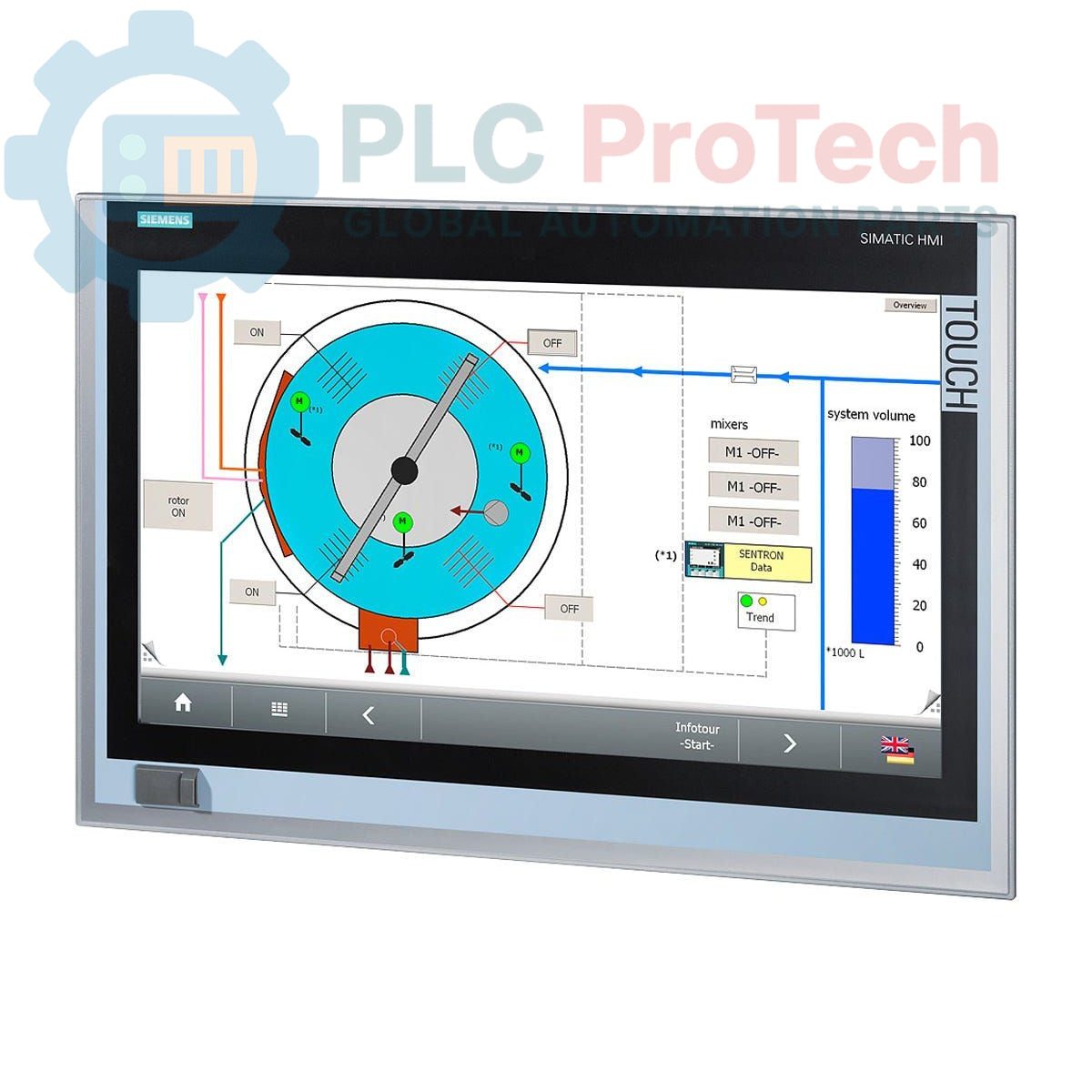

The Siemens 6AV7240-6EC07-0HA0 is a SIMATIC IPC 477D industrial panel PC, featuring a 22-inch touch display for human-machine interface applications. This unit is equipped with an Intel Core i7-3517UE processor, 4 GB of RAM, and an 80 GB Standard SSD (MLC) for robust industrial operation. It provides versatile connectivity with multiple USB ports (four at the back, one at the front), dual Gigabit Ethernet (IE/PN), and an additional 10/100/1000 Ethernet port. A single RS-232 serial interface is also included, and the unit operates on a 24 V DC industrial power supply. The IPC comes pre-installed with Windows 7 Ultimate 64-bit and is designed for easy replacement without requiring a drive.

Features

• 22-inch touch display
• Intel Core i7-3517UE processor
• 4 GB RAM
• 80 GB Standard SSD (MLC)
• Multiple USB interfaces (4 rear, 1 front)
• Dual Gigabit Ethernet (IE/PN) and one 10/100/1000 Ethernet port
• 1x RS-232 serial interface
• Pre-installed Windows 7 Ultimate 64-bit operating system
• 24 V DC industrial power supply
• Designed for drive-less replacement

Applications

The Siemens SIMATIC IPC 477D is suitable for a range of industrial automation applications, including:

• Human-Machine Interface (HMI) for process visualization and control
• Data acquisition and processing in manufacturing environments
• Machine control and monitoring systems
• Embedded PC solutions for industrial machinery
• Operator workstations in harsh industrial settings

Technical Specifications

Connections / Interfaces

• USB Ports: 4 ports located at the back, 1 port at the front.
• Ethernet Ports: Two Gigabit Ethernet ports (IE/PN) and one 10/100/1000 Ethernet port.
• Serial Port: One RS-232 interface.
• Power Supply: 24 V DC industrial power input.

Installation Guidelines

1. De-energization: Ensure all power to the system is disconnected and locked out before commencing installation.
2. Mounting: Securely mount the panel PC in a suitable enclosure or panel cutout, ensuring adequate ventilation for heat dissipation.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Grounding: Establish a proper protective earth (PE) connection to the panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Interface Connections: Connect Ethernet cables to the appropriate ports for network communication. Connect USB devices and RS-232 serial devices as required for the application.
6. Cable Routing: Route all cables to prevent strain, interference, and damage. Separate power and signal cables where possible.
7. Environmental Considerations: Ensure the operating environment complies with the specified temperature, humidity, and vibration ratings for industrial equipment.
8. Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and functionality of the touch display.
