Description

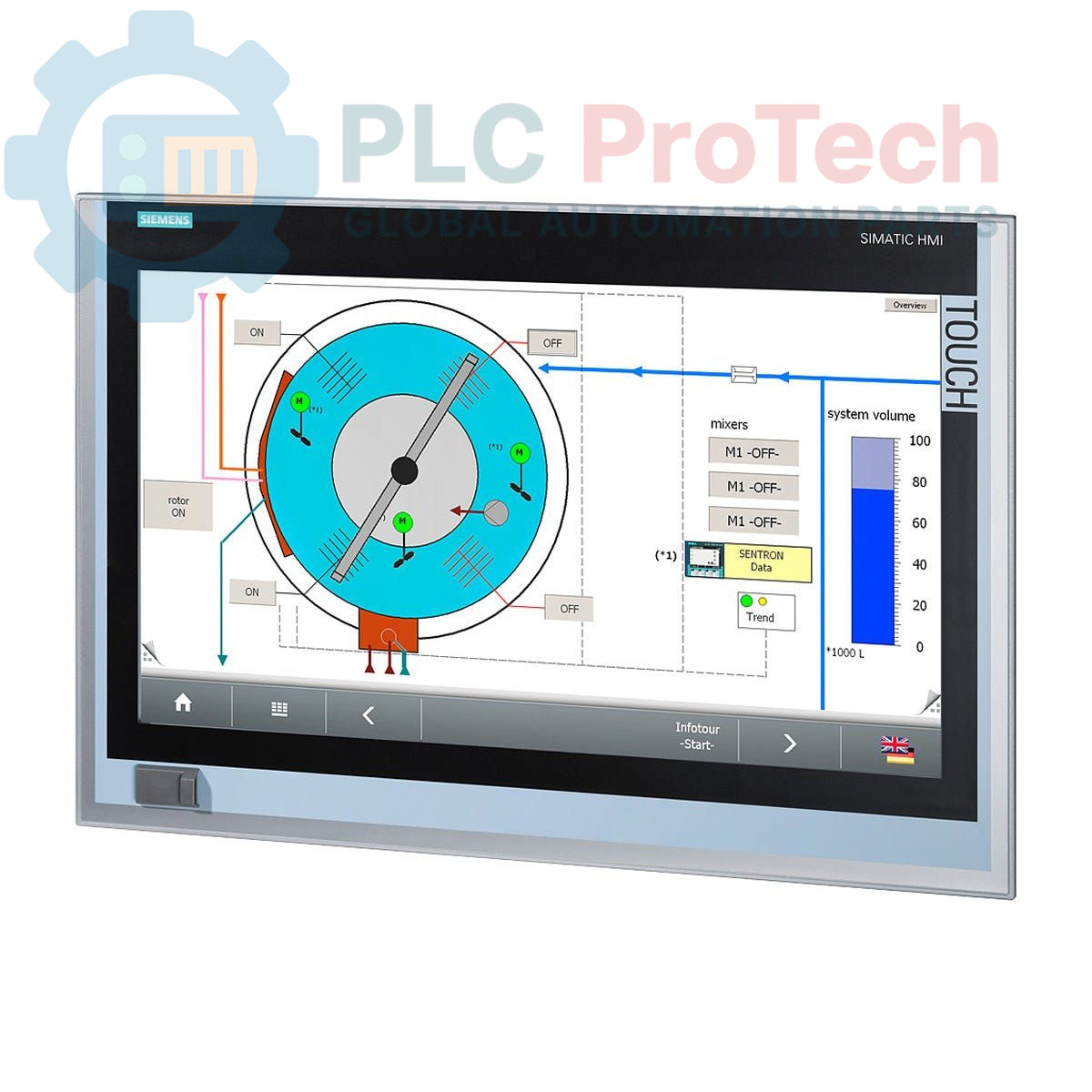

This device is a Siemens 6AV7240-6ED07-0PA0 SIMATIC IPC 477D, an industrial panel PC designed for demanding visualization and control tasks in industrial environments. It features a large 22-inch touch display, an Intel Core i7-3517UE processor, 8 GB of memory, and a 240 GB MLC SSD for reliable performance and data storage. The unit is engineered to operate on a 24 V DC industrial power supply and comes pre-installed with the Windows 7 Ultimate (64-bit) operating system, providing a familiar platform for HMI and SCADA applications.

Features

• 22-inch widescreen touch display for operator interaction
• Powered by an Intel Core i7-3517UE processor
• Equipped with 8 GB of RAM for multitasking
• Includes a 240 GB Standard (MLC) Solid State Drive
• Pre-installed with Windows 7 Ultimate (64-bit)
• Features two Gigabit Ethernet ports (IE/PN) for network integration
• Provides extensive connectivity with five USB ports and one RS-232 port
• Designed for a 24 V DC industrial power supply

Applications

• Human-Machine Interface (HMI) stations
• SCADA system visualization nodes
• Process control and monitoring terminals
• Data acquisition and logging systems
• Manufacturing Execution System (MES) client terminals

Technical Specifications

Installation Guidelines

1. 1 De-energize System: Before installation, completely disconnect the main power supply to the control cabinet or mounting location. Verify the absence of voltage using a calibrated multimeter.
2. 2 Panel Mounting: Prepare the panel cutout according to the device's mechanical drawings. Secure the Panel PC into the cutout using all provided mounting clamps, ensuring an even and secure fit for proper sealing.
3. 3 Protective Grounding: Connect the chassis ground terminal to the control cabinet's protective earth (PE) busbar using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
4. 4 Connect Power Supply: Connect the 24 V DC power supply to the designated power input terminals. Ensure correct polarity (+/-). Use appropriately sized wiring and ensure the power source is stable and within the specified voltage range.
5. 5 Connect Peripherals: Connect all required network, USB, and serial cables. Ensure all connectors are fully seated. Route cables away from high-voltage lines to minimize electromagnetic interference.
6. 6 System Power-Up: After verifying all connections, remove LOTO devices and re-energize the main power supply. Power on the Panel PC and confirm proper boot-up and operation.
