Description

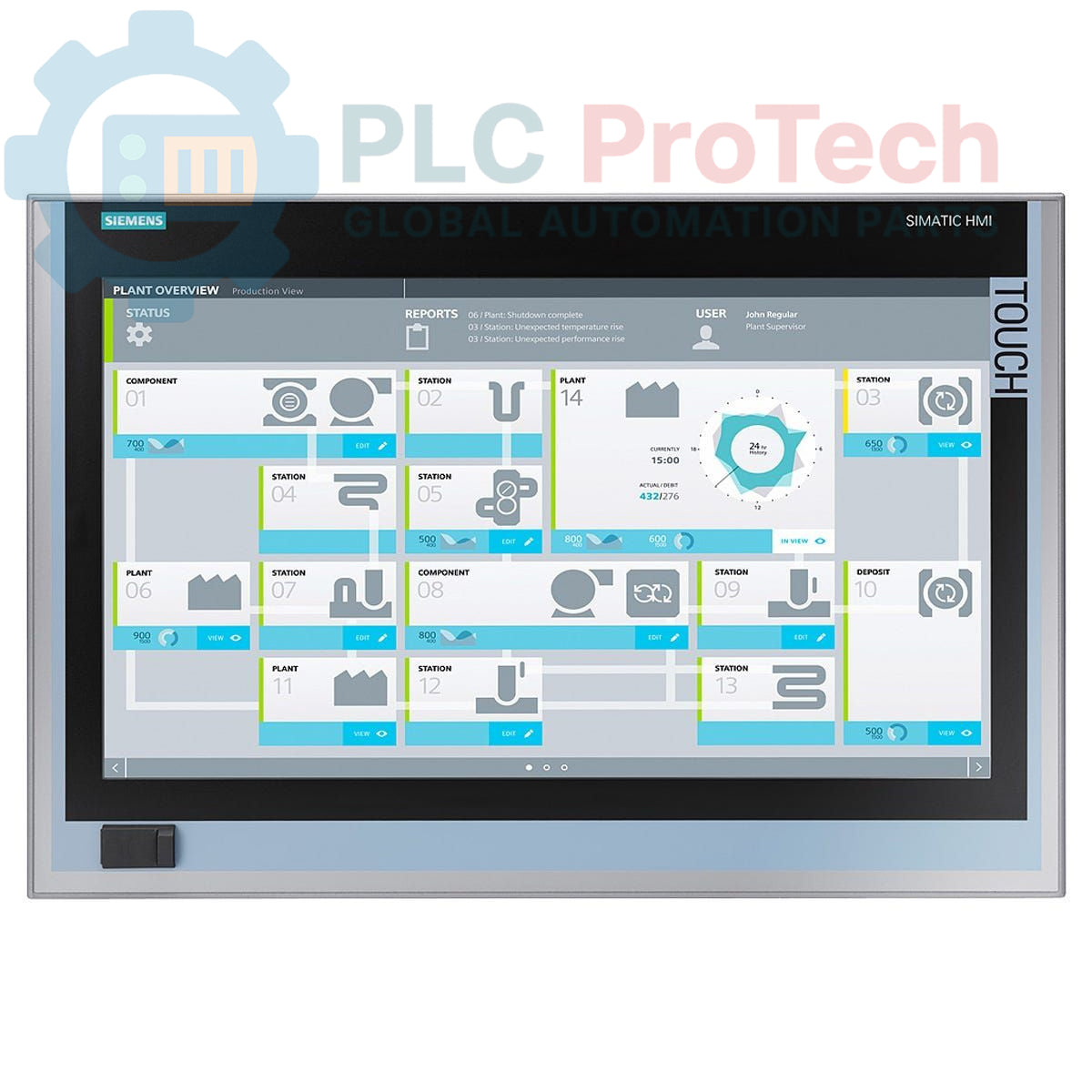

The Siemens 6AV7260-1GA10-1AX6 is a SIMATIC IPC677D Panel PC designed for industrial applications, integrating a powerful computing unit with a 19-inch touch display. This unit features multiple connectivity options, robust monitoring capabilities, and an onboard RAID controller, making it suitable for demanding HMI and control tasks in various industrial environments. It comes pre-installed with Windows 7 Ultimate 32-bit SP1 and is powered by a 24 V DC industrial power supply.

Features

• Integrated 19-inch touch display with 1366x768 resolution
• Equipped with Xeon E3-1268LV3 processor (4C/8T, 2.3 (3.3) GHz, 8 MB cache, VT-D, AMT)
• Includes 2 GB DDR3 1600 DIMM RAM
• 500 GB SATA HDD storage
• Dual 10/100/1000 Mbit/s Ethernet interfaces
• Four USB V3.0 ports (with additional front USB)
• One serial interface (COM1)
• Integrated watchdog, temperature, and fan monitoring functions
• Onboard RAID controller for data redundancy
• Two PCI expansion slots and two additive USB ports (one slot occupied)
• Pre-installed with Windows 7 Ultimate 32-bit SP1, Multi-User Interface (DE, EN, FR, ES, IT)

Applications

The Siemens SIMATIC IPC677D Panel PC is typically deployed in industrial settings requiring a robust, integrated computing and display solution. Common applications include:

• Human Machine Interface (HMI) for process visualization and control
• Data acquisition and processing in manufacturing and automation systems
• Machine control and monitoring
• Industrial workstation for SCADA systems
• Embedded control applications requiring a compact and durable PC platform

Technical Specifications

Installation Guidelines

Proper installation ensures reliable operation and longevity of the SIMATIC IPC677D Panel PC.

1. De-energize System: Before beginning any installation or wiring, ensure all power to the system and the Panel PC is completely de-energized and locked out.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate ventilation for heat dissipation. Follow the manufacturer's recommendations for mounting orientation and hardware.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated power input terminals. Observe correct polarity. Ensure the power supply is stable and within the specified voltage range.
4. Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to minimize electromagnetic interference and ensure safety. Use the designated grounding terminal.
5. Ethernet Connections: Connect industrial Ethernet cables to the 10/100/1000 Mbit/s Ethernet ports for network communication. Use shielded cables if operating in environments with high electromagnetic noise.
6. Peripheral Connections: Connect USB devices, keyboards, mice, or other peripherals to the available USB V3.0 ports. Use the COM1 port for serial communication as required.
7. Cable Management: Route all cables neatly and securely, separating power cables from signal cables to prevent interference. Use cable ties and conduits where appropriate.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings for industrial PCs to prevent premature failure.
9. Power On and Configuration: After all connections are secure, re-energize the system. Verify proper boot-up and configure the operating system and application software as needed.
