Description

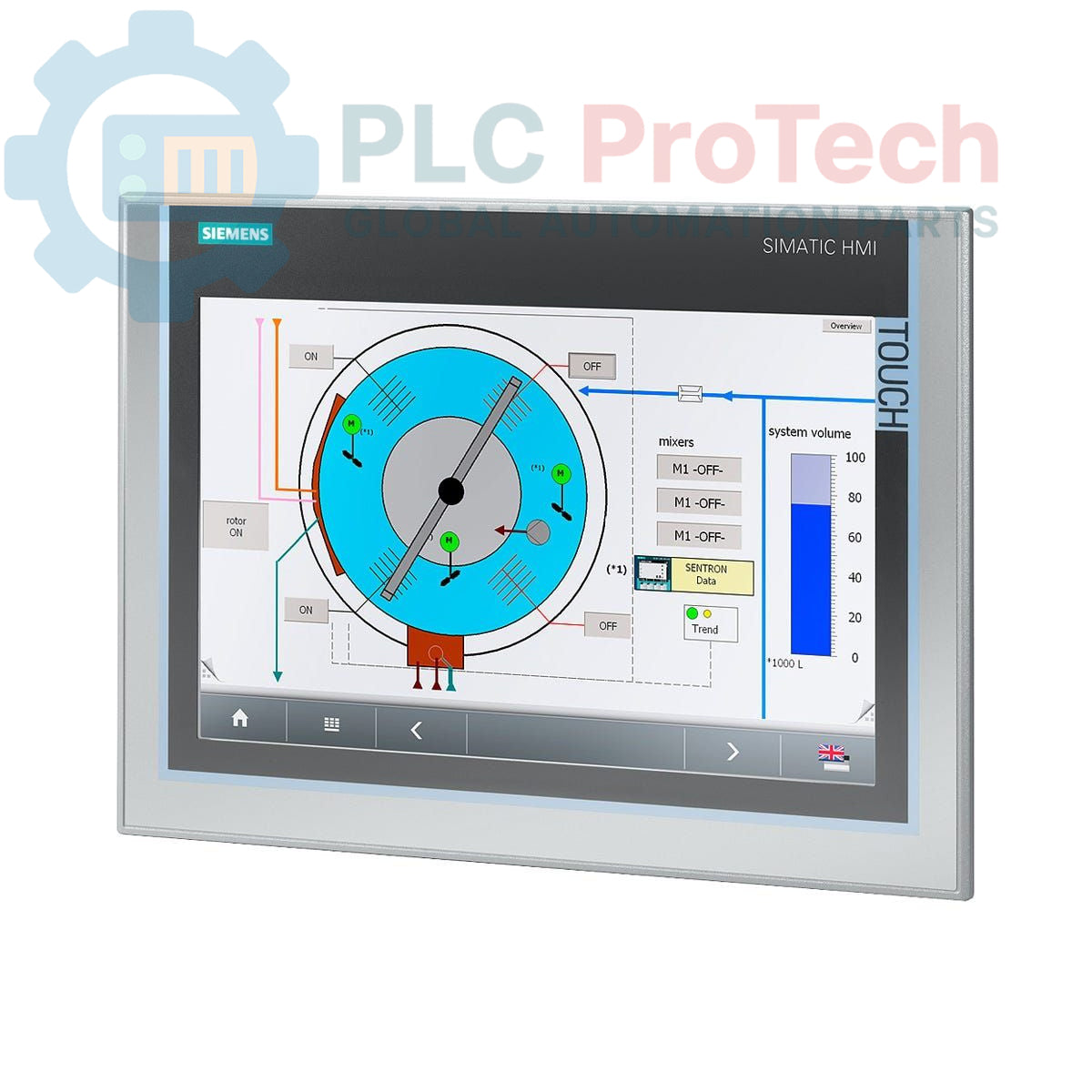

This is a Siemens 6AV7413-4AB00-1FW0 SIMATIC IPC277D, a robust industrial computer designed for human-machine interface (HMI) applications. The unit features a 12-inch touchscreen display for intuitive operator control and visualization. It comes pre-licensed with WinCC flexible RT 512 and includes SIMATIC WinCC flexible/Archives, providing a comprehensive platform for machine-level control and data logging. This specific part number is a customer-specific Design 'B' configuration originally manufactured for Flottweg, based on the 6AV7881-3AE00-3DA0 hardware platform. Please note that this product is in the 'Phase-Out' stage of its lifecycle.

Features

• 12-inch touchscreen interface for operator control
• Integrated WinCC flexible RT 512 runtime license
• Includes SIMATIC WinCC flexible/Archives software
• Part of the durable SIMATIC IPC277D series for industrial environments
• Customer-specific configuration based on the 6AV7881-3AE00-3DA0 model

Applications

• Machine control and process visualization
• Data acquisition and local archiving
• Operator panels in manufacturing and process industries
• Factory automation systems requiring a ruggedized HMI

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is de-energized and locked out according to safety procedures. Verify the absence of voltage before proceeding.
2. 2 Prepare the panel cutout according to the manufacturer's dimensional drawings for the IPC277D series. Ensure the mounting surface is clean, flat, and free of burrs.
3. 3 Insert the Panel PC into the cutout from the front of the panel. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the IPC chassis. This is critical for safety and noise immunity.
5. 5 Connect the 24V DC power supply to the power input terminals, observing correct polarity. Use a dedicated, regulated power source suitable for industrial environments.
6. 6 Connect all required communication (e.g., Ethernet, PROFIBUS) and peripheral (e.g., USB) cables. Ensure proper cable shielding and grounding practices are followed.
7. 7 After verifying all connections, remove the lockout/tagout and re-energize the cabinet. The Panel PC will boot, and the operating system and HMI application can be configured.
