Siemens 6AV7423-2AA01-0LS0 SIMATIC HMI IPC677C Panel PC

SKU 6AV7423-2AA01-0LS0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7423-2AA01-0LS0
Origin Germany
Product Type: Industrial Panel PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 12.0 kg
Dimensions: 55.0 x 45.0 x 25.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

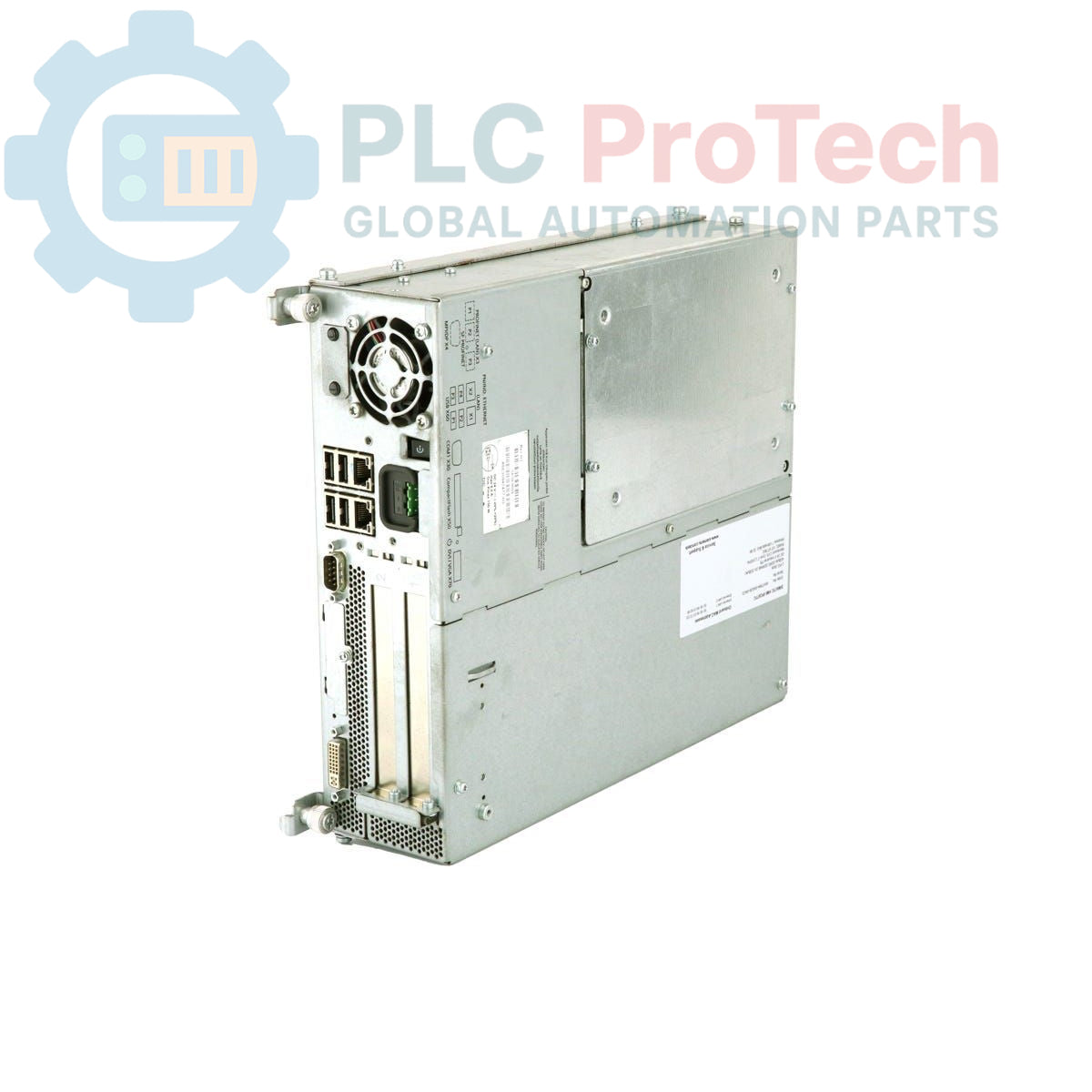

The Siemens 6AV7423-2AA01-0LS0 is a high-performance industrial workstation designated as a SIMATIC HMI IPC677C, engineered to handle simultaneous human-machine interface (HMI) visualization and demanding real-time machine control tasks. This heavy-duty system features a broad 15-inch display paired with an integrated rugged tactile keypad layout supporting a native resolution of 1024 x 768 pixels. It is equipped with dual integrated 10/100/1000 Mbit/s Gigabit Ethernet ports for independent control and corporate IT routing, four rear-mounted USB 2.0 ports, and a front-side USB port for quick maintenance access. Plant-floor reliability is optimized via an onboard hardware RAID controller for data redundancy alongside persistent internal system watchdog, temperature, and fan status monitoring circuits. Operating on an industrial wide-range 110/230 V AC power supply designed to strict NAMUR specifications, this obsolete hardware serves as a critical drop-in node to maintain continuous uptime across legacy production lines.

Features

Keypad-Driven Display Node: Ruggedized 15-inch display with a built-in industrial keypad panel interface designed for reliable operator inputs in harsh environments.
Dual-Channel Gigabit Trunking: Equipped with two independent 10/100/1000 Mbit/s Ethernet interfaces to ensure clean operational network segmentation.
Fault-Tolerant Storage System: Integrated hardware RAID controller enables real-time storage mirroring to minimize mechanical failure risks and process downtime.
Proactive Health Diagnostics: Onboard watchdog micro-circuits alongside direct fan and temperature monitoring utilities maintain system integrity.

Applications

Supervisory Control & SCADA Nodes: Central machine-level visualization terminal designed for managing distributed plant sectors and assembly structures.
Manufacturing Execution Systems (MES): High-reliability computing node for localized material tracking, recipe management, and ERP data interfacing.
Legacy System Architecture Support: Drop-in direct-replacement platform to ensure continuous execution of custom control systems running on vintage IPC677C setups.

Technical Specifications

Specification Parameter	Verified Technical Value
Manufacturer	Siemens
Model Number	6AV7423-2AA01-0LS0
Product Series	SIMATIC Panel PC IPC677C
Product Type	Industrial Panel PC HMI Workstation
Display Dimensions	15-inch Display
Operator Interface	Integrated Tactile Keypad Panel
Native Resolution	1024 x 768 pixels
Mains Power Configuration	110/230 V AC Power Module (NAMUR Compliant)
Network Interfaces	2 x 10/100/1000 Mbit/s Gigabit Ethernet Ports
USB Ports	4 x USB 2.0 (Rear Face), 1 x USB Interface (Front Face)
Serial Interface	1 x COM1 (RS-232)
Data Redundancy	Onboard Hardware RAID Controller Module
Diagnostic Monitoring	Watchdog, Internal Temperature Control, Fan Status Control
Product Phase Status	Obsolete / Legacy Production Node
Country of Origin	Germany
Net Shipping Weight	12.00 kg
Package Dimensions (Calculated)	55.0 x 45.0 x 25.0 cm

Installation Guidelines

CRITICAL WARNING:

Isolate, shut down, and verify all upstream electrical feeder channels prior to mechanical mounting. Ensure total compliance with proper Lockout/Tagout (LOTO) procedures. Cabinet wiring and hardware provisioning must be completed exclusively by certified industrial engineering personnel.

Enclosure Verification: Ensure the target electrical cabinet is fully de-energized, checking for the absolute absence of residual voltage using a properly calibrated testing tool.

Cutout Dimensions Audit: Cross-check the panel layout cutout geometry against the exact installation footprint of the IPC677C chassis. Confirm the surface area is clean, flat, and structurally reinforced.

Workstation Alignment & Clamping: Seat the workstation into the prepared cutout from the front. Secure the frame tightly from the rear side using all supplied mounting brackets, applying uniform torque to create a tight front gasket seal.

Protective Earth Grounding: Run a dedicated, low-impedance copper protective earth (PE) grounding wire directly to the chassis ground stud. This step is mandatory to minimize electromagnetic interference (EMI) and establish safety boundaries.

Mains Power Termination: Wire the main 110/230 V AC supply cables (Line, Neutral, and Earth) straight into the designated power distribution block terminals, verifying that feed voltages fit the product nameplate ratings.

Trunk Interface Connections: Attach all structural communication links, Gigabit Ethernet connections, serial lines, and USB cables. Utilize proper cord tracking mechanisms to prevent accidental strain or mechanical disconnects.

Enclosure Boot Evaluation: Secure the enclosure door assemblies, restore branch circuit power, and monitor the device initialization phase to verify complete boot performance and network link state connectivity.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What kind of user input mechanism does this specific SIMATIC HMI panel use?

This module features an integrated rugged industrial keypad interface layout rather than a standard touch-only design, allowing accurate tactile operation.

How does the onboard storage layout handle fault tolerance and data redundancy?

The workstation is built with an integrated hardware RAID controller configuration that allows simultaneous drive mirroring to prevent runtime failure data losses.

What electrical standards are applied to the alternating current power module inside this unit?

The computing system functions via an integrated wide-range 110/230 V AC power network unit configured specifically to meet rugged industrial NAMUR specifications.
