Description

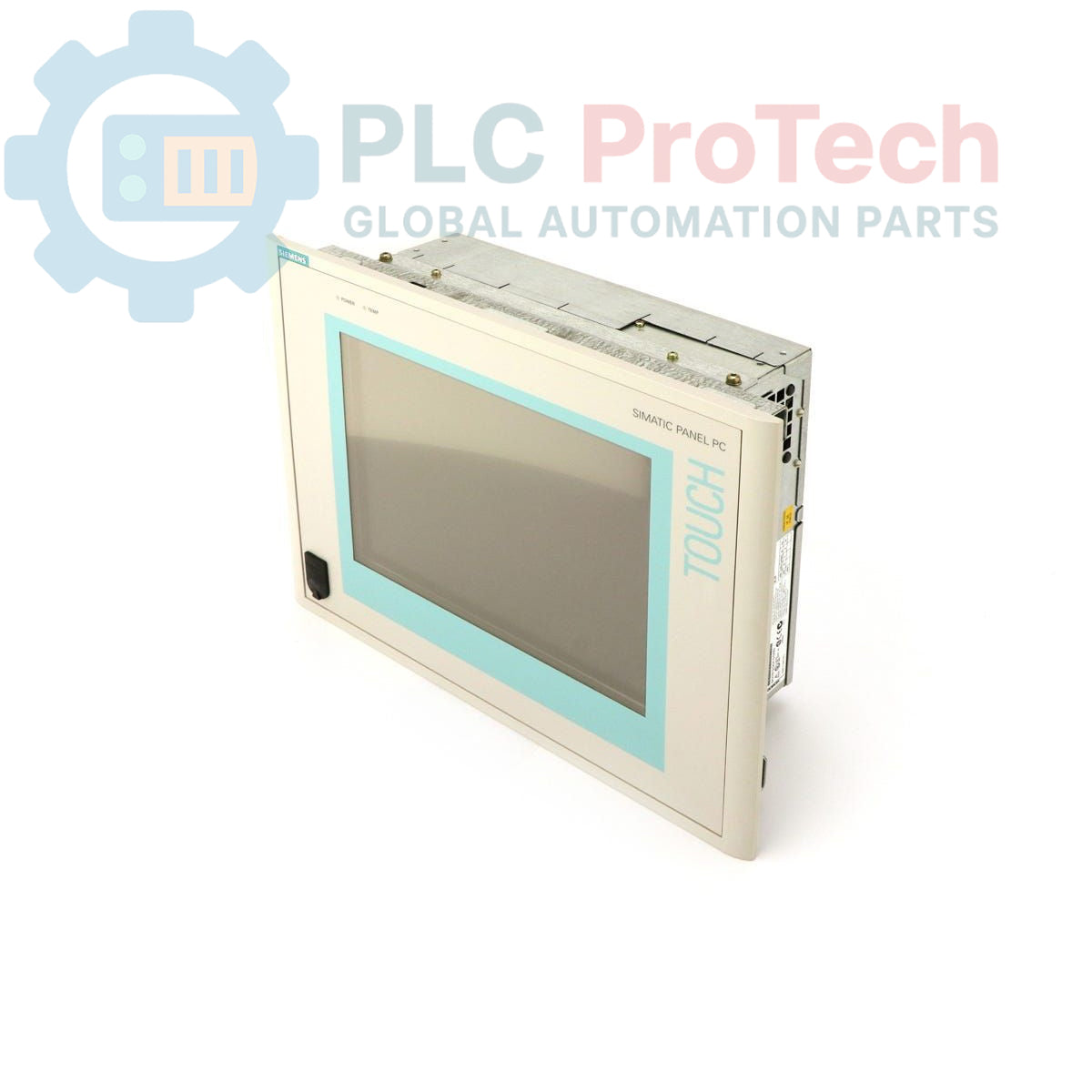

This is a Siemens 6AV7613-0AF22-0BE0 SIMATIC Panel PC 670, a panel-mounted industrial computer designed for visualization and control tasks. This standard configuration features a 12-inch TFT display, a Pentium III 500 MHz CPU, 128 MB of RAM, and a 40 GB hard drive. The unit includes a CD-ROM drive and is supplied with a U.S. mains power cable for operation on 115-230V AC. This specific model comes pre-installed with a German-language version of Windows 98. Please note that this product is considered obsolete by the manufacturer, making it suitable for legacy system maintenance and spares.

Features

• 12-inch color TFT display
• Integrated Pentium III 500 MHz processor
• 128 MB of system RAM
• 40 GB hard disk drive for storage
• Built-in CD-ROM optical drive
• Includes a U.S. standard mains power cable
• Pre-installed with Windows 98 (German language)

Applications

• Human-Machine Interface (HMI) for industrial machinery
• Process visualization and control in manufacturing plants
• Data acquisition and logging systems
• Supervisory Control and Data Acquisition (SCADA) nodes
• Replacement unit for existing SIMATIC PC 670 installations

Technical Specifications

Installation Guidelines

1. 1
   Prepare Mounting Location: Ensure the panel cutout dimensions match the PC 670 specifications. The mounting surface must be clean, flat, and able to support the unit's weight (12.00 kg). Verify adequate clearance for ventilation and cable routing at the rear of the unit.
2. 2
   Mount the Unit: Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a diagonal pattern to ensure a uniform seal against the panel gasket. Do not overtighten.
3. 3
   Connect Protective Earth (PE): Connect the chassis grounding terminal to the cabinet's main protective earth bus using a low-impedance conductor. This is a critical step for both safety and noise immunity.
4. 4
   Connect Power: Before connecting the supplied U.S. mains cable, verify the source voltage is within the 115-230 V AC range. Connect the power cable securely to the unit's power inlet and then to the de-energized power source.
5. 5
   Connect Peripherals: Connect all required interface cables (e.g., Ethernet, serial, USB) to their respective ports. Ensure all connectors are fully seated and secured if locking mechanisms are present. Energize the system and verify correct boot-up and operation.
