6AV7704-2CC10-0AD0

Siemens

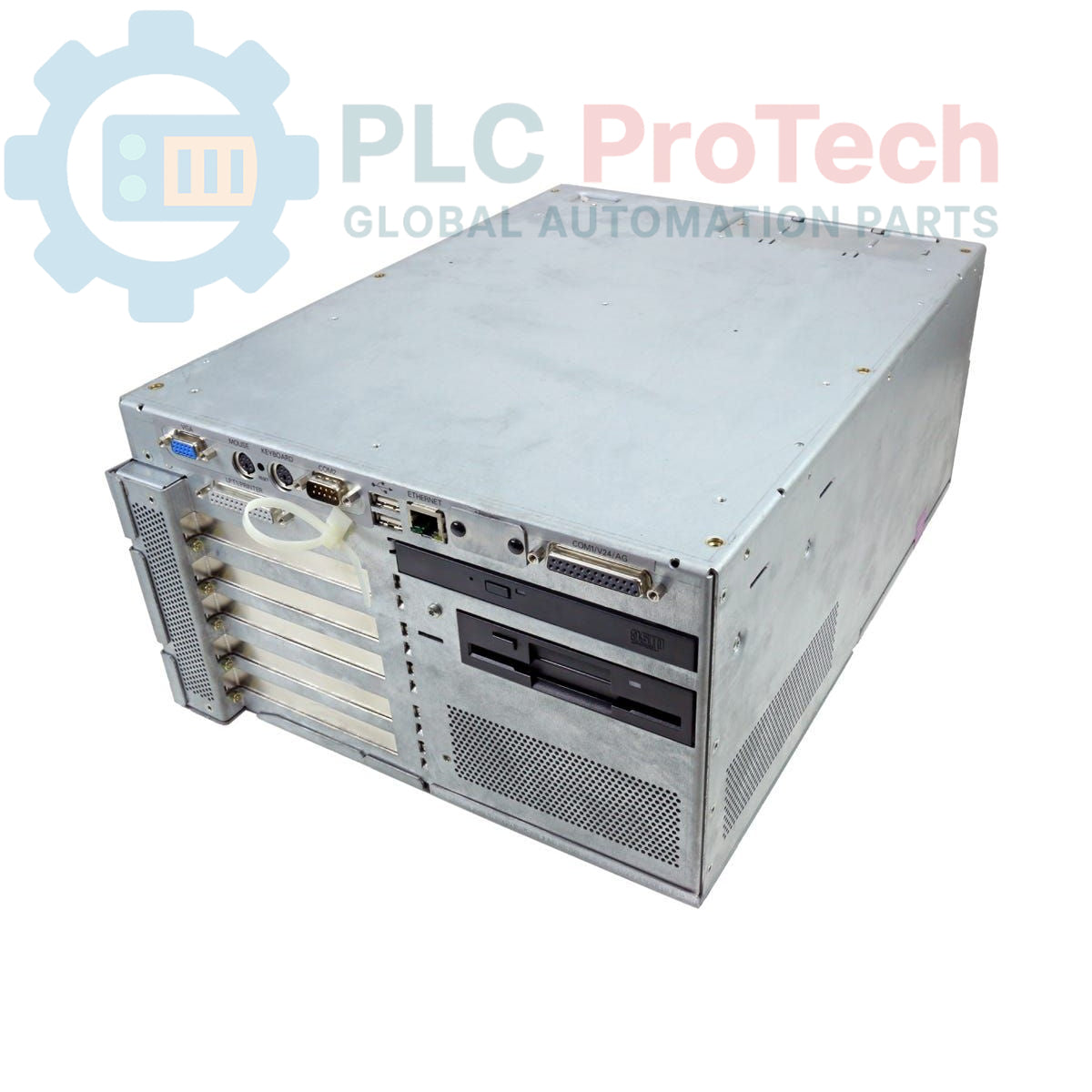

Siemens 6AV7704-2CC10-0AD0 SIMATIC Panel PC 870

SKU 6AV7704-2CC10-0AD0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7704-2CC10-0AD0
  • Origin Germany
  • Product Type: Panel PC
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 18.1 kg
  • Dimensions: 48.3 x 31.1 x 25.4 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Industrial PCs SIMATIC Panel PC
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV7704-2CC10-0AD0 is a SIMATIC Panel PC 870, a robust industrial computer designed for human-machine interface (HMI) and control tasks. This unit features a 15.1-inch color TFT touch display, 256 MB of RAM, a 40 GByte EIDE hard drive, and an integrated CD-ROM drive. The provided source information details two standard configurations for this model series, differing in processor, power supply, and pre-installed operating system.

Features

  • 15.1-inch Color TFT Display
  • Integrated Touch Screen Interface
  • 256 MB System RAM
  • 40 GByte EIDE Hard Disk Drive (HDD)
  • Built-in CD-ROM Drive
  • Panel-mount industrial form factor

Applications

  • Process visualization and control
  • Data acquisition and logging
  • Manufacturing Execution Systems (MES)
  • Machine-level HMI applications
  • Industrial automation control rooms

Technical Specifications

Specification Value
Manufacturer Siemens
Product Range Simatic Panel PC
Model Series PC 870
Display 15.1" Color TFT with Touch Interface
Memory (RAM) 256 MByte
Storage 40 GByte HDD EIDE
Optical Drive CD-ROM
Processor (Configuration 1) Celeron 1.2 GHz
Power Supply (Configuration 1) 230V with European Plug
Operating System (Configuration 1) Windows 2000 Multi-Language (EN, GER, FR, IT, SP)
Processor (Configuration 2) Pentium III 866 MHz
Power Supply (Configuration 2) 115V with US Plug
Operating System (Configuration 2) Windows NT 4.0 SP5 Workstation (English)
Product Lifecycle Status Obsolete
Shipping Weight 18.10 kg
Package Dimensions (Calculated) 48.3 x 31.1 x 25.4 cm
Commodity Code 85371091
ECCN 5D992
Country of Origin Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Hazardous voltages are present. Installation must be performed by qualified personnel only. Failure to de-energize equipment and follow Lockout/Tagout (LOTO) procedures before installation or maintenance can result in severe injury or death.
  1. 1 Prepare Mounting Location: Ensure the panel cutout dimensions are accurate and the mounting surface is clean, flat, and can support the weight of the unit (18.10 kg). Verify adequate clearance for ventilation and cable routing.
  2. 2 Mount the Panel PC: Insert the unit into the panel cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal and prevent chassis distortion.
  3. 3 Establish Ground Connection: Connect the chassis grounding terminal to the cabinet's protective earth (PE) bus bar using a low-impedance conductor. This is critical for both safety and noise immunity.
  4. 4 Connect Peripherals and Power: Connect all required interface cables (e.g., Ethernet, serial, USB) before applying power. Route signal cables separately from high-voltage power lines. Connect the appropriate mains power cable (115V or 230V) to a stable, correctly-rated power source.
  5. 5 System Power-Up: Once all connections are secure, remove LOTO devices and energize the circuit. Power on the Panel PC and verify correct boot-up of the operating system and application software.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the screen size and type for the 6AV7704-2CC10-0AD0?
This SIMATIC Panel PC is equipped with a 15.1-inch color TFT display that features an integrated touch screen interface.
What are the storage specifications for this Panel PC?
The unit comes with a 40 GByte EIDE Hard Disk Drive (HDD) and includes a built-in CD-ROM drive for optical media.
What operating systems are mentioned for this model series?
The source data lists two possible pre-installed operating systems depending on the specific configuration: Windows 2000 Multi-Language or Windows NT 4.0 SP5 Workstation (English).
How much memory does this Panel PC have?
The Siemens 6AV7704-2CC10-0AD0 is configured with 256 MByte of RAM.
Is this a current product from Siemens?
No, the product lifecycle status for this model is listed as Obsolete.
