Description

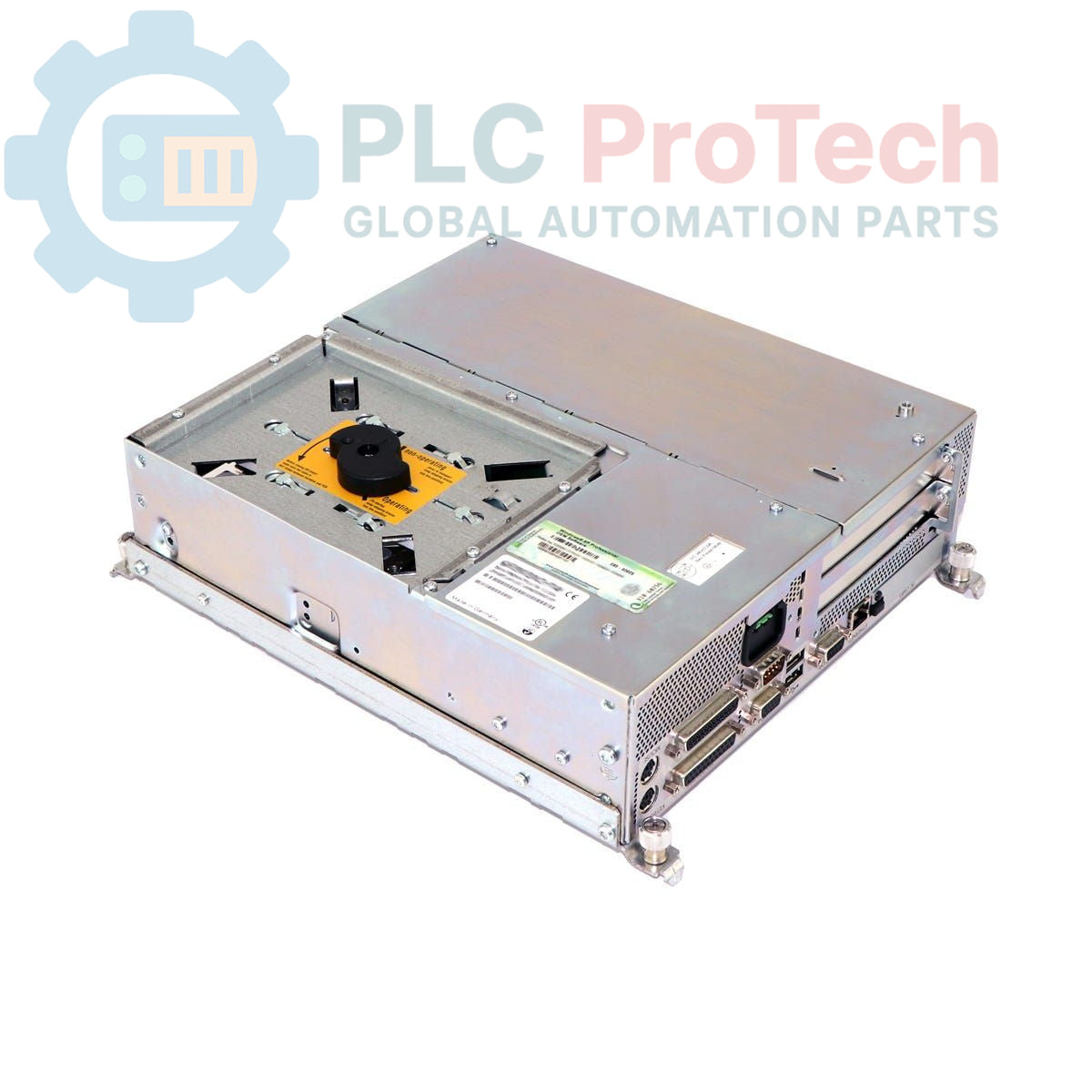

The Siemens 6AV7721-1AC10-0AC0 is a SIMATIC Panel PC 670 configured with a 10-inch color TFT display for industrial human-machine interface (HMI) applications. This unit is equipped with a Celeron 1.2 GHz processor, 128 MB of SDRAM-133, and a 30 GB EIDE hard drive for local data storage and application execution. It operates on a 115-230V AC power supply and includes a DVD-ROM drive. The pre-installed operating system is Windows NT 4.0 SP6a Workstation (English). Please note this model is considered obsolete by the manufacturer, making it a suitable spare part for maintaining existing systems.

Features

• 10-inch Color TFT Display
• Intel Celeron 1.2 GHz Processor
• 128 MB SDRAM-133 Memory
• 30 GB EIDE Hard Disk Drive (HDD)
• Integrated DVD-ROM Drive
• Pre-installed Windows NT 4.0 SP6a Workstation (English)
• 115-230V AC Power Supply Input

Applications

• Legacy system maintenance and spare parts replacement
• Process visualization and control
• Machine-level HMI for manufacturing lines
• Data acquisition and logging stations

Technical Specifications

Installation Guidelines

1. 1 Verify that the control panel or enclosure is fully de-energized and locked out. Use a calibrated multimeter to confirm zero energy state at the intended power connection point.
2. 2 Prepare the panel cutout according to the device's mechanical specifications. Ensure the mounting surface is clean, flat, and free of debris to guarantee a proper seal.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to avoid warping the bezel.
4. 4 Connect the protective earth (PE) or chassis ground terminal to the enclosure's main ground bus using a low-impedance conductor. This is critical for electrical safety and noise immunity.
5. 5 Connect the AC mains power cable to the unit's power input. Ensure the source voltage matches the 115-230V AC rating. Route power cables separately from low-voltage signal and communication wiring.
6. 6 Connect all required communication and I/O cables. Ensure proper shielding and termination as required by the specific protocol (e.g., Ethernet, serial).
7. 7 After verifying all connections are secure and correct, remove the lockout/tagout devices and re-energize the main panel circuit to power on the Panel PC.
