Description

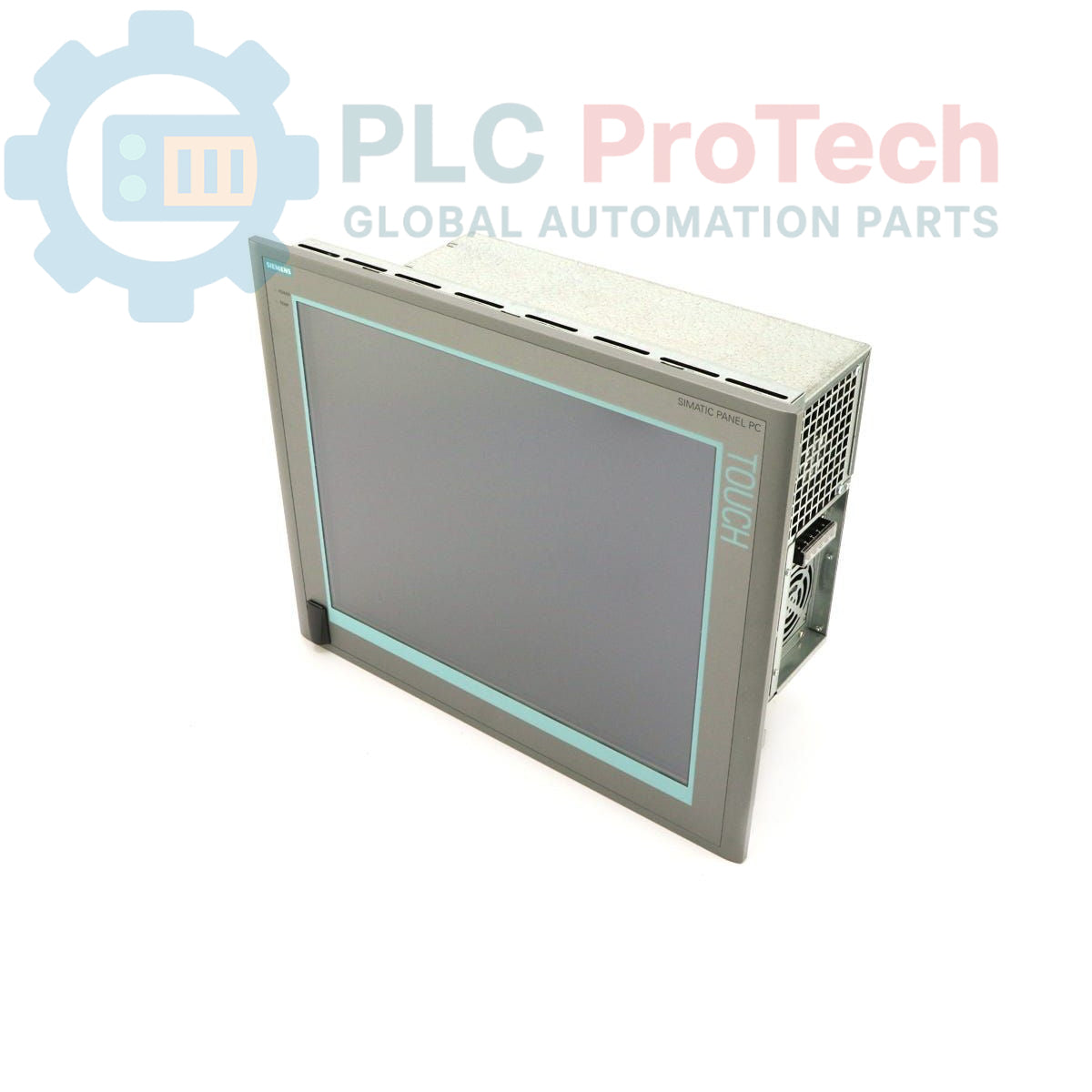

This is a Siemens 6AV7812-0BA10-1AB0 SIMATIC Panel PC 877, an industrial computer designed for machine-level visualization and control tasks. It integrates a 15-inch touch display with a resolution of 1024x768 pixels and features a convenient front-side USB interface. The system is powered by a Celeron 2.0 GHz processor and is equipped with 512MB of DDR266 SDRAM. For storage, it includes a 40 GByte EIDE hard disk drive and a DVD-ROM drive. This unit is pre-installed with Windows 2000 Professional Multi-Language User Interface (MUI) and is designed for an AC power supply of 110-230V.

Features

• 15-inch color touch screen display
• 1024 x 768 pixel screen resolution
• Integrated front-side USB interface for easy peripheral access
• Intel Celeron 2.0 GHz processor with 400 MHz FSB
• 512 MB DDR266 SDRAM system memory
• 40 GByte EIDE 3.5-inch Hard Disk Drive (HDD)
• Built-in DVD-ROM optical drive
• Pre-installed Windows 2000 Professional (MUI)
• Wide input voltage range of 110-230V AC

Applications

• Human-Machine Interface (HMI) for process control
• SCADA client for plant-wide monitoring
• Machine-level data acquisition and logging
• Industrial control panel for manufacturing lines
• Visualization station in factory automation

Technical Specifications

Installation Guidelines

1. 1 Prepare Mounting Location: Ensure the panel cutout dimensions are correct and the mounting surface is clean, flat, and can support the unit's weight (17.00 kg). Verify adequate clearance for ventilation and cable routing.
2. 2 Mount the Unit: Insert the Panel PC into the prepared cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal.
3. 3 Connect Protective Earth (PE): Connect the chassis to the control cabinet's protective earth ground using a low-impedance conductor. This is a critical step for operator safety and EMI protection.
4. 4 Connect Power Supply: Connect the 110-230V AC power cable to the unit's power input terminal. Ensure the source voltage is within the specified range and properly fused. Route power cables separately from data and communication lines.
5. 5 Connect Peripherals: Connect any required network cables, keyboards, mice, or other devices to their respective ports. Utilize the front USB port for temporary devices like flash drives. After all connections are secure, power may be restored to the system.
