Description

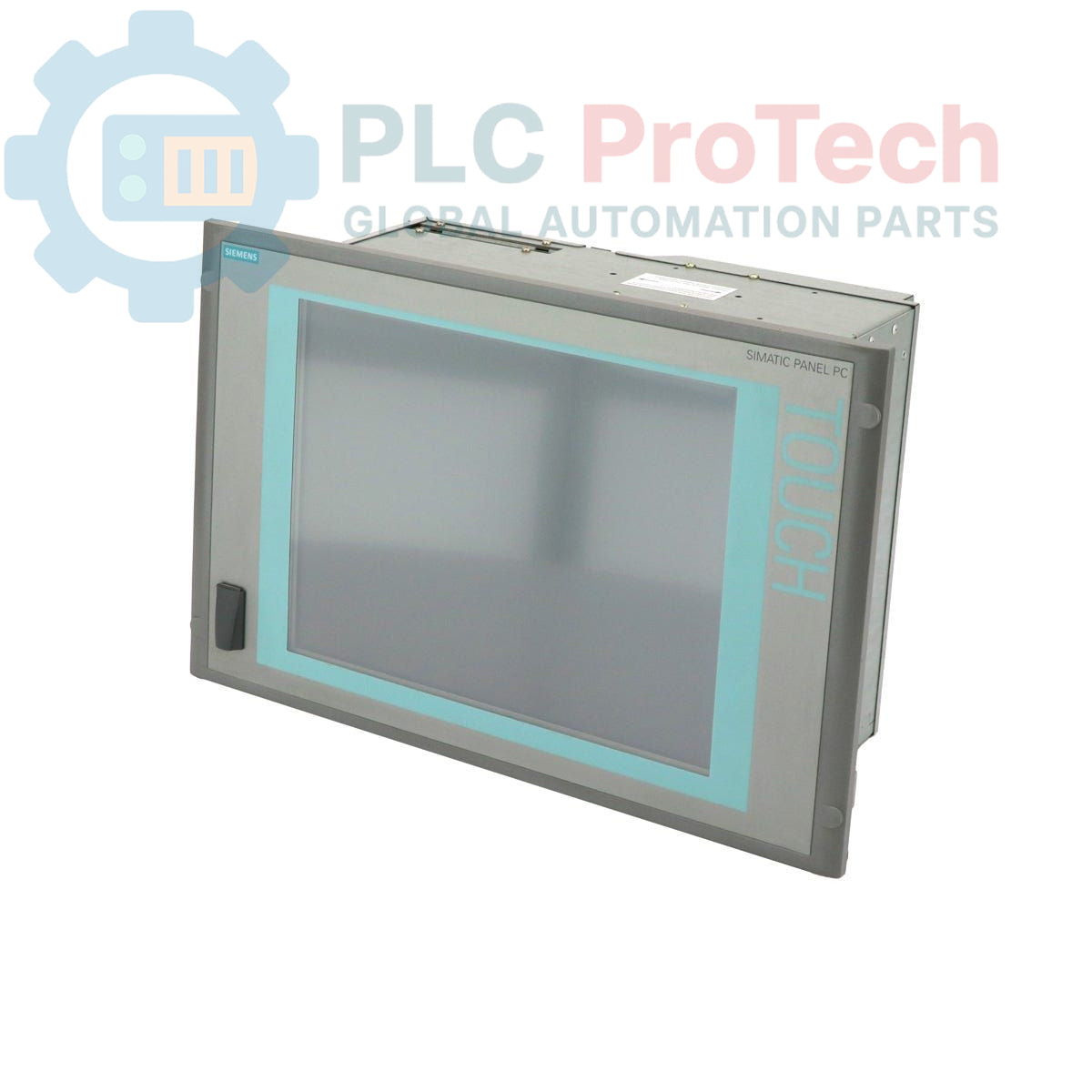

The Siemens 6AV7820-0AA10-1AC0 is a panel-mounted human-machine interface (HMI) from the SIMATIC Panel PC 577 series. This unit integrates a 12-inch touch display with an industrial computer powered by a Celeron 2.0 GHz processor and 512 MB of DDR400 SDRAM. It is equipped with an integrated DVD-ROM drive and comes pre-installed with the Windows XP SP1 Professional Multi-Language User Interface (MUI) operating system, providing a ready-to-deploy platform for machine control and process visualization tasks.

Features

• ■12-inch color touch display for operator interaction.
• ■Celeron processor operating at 2.0 GHz.
• ■512 MB DDR400 SDRAM for application support.
• ■Integrated DVD-ROM optical drive.
• ■Pre-loaded with Windows XP SP1 Professional (MUI).

Applications

• ■Machine-level operator control and monitoring.
• ■Process visualization and data acquisition (SCADA).
• ■Factory automation and production line management.
• ■Data logging and recipe management systems.

Technical Specifications

Installation Guidelines

1. 1 Prepare the panel cutout according to the device's mechanical drawings, ensuring sufficient clearance for ventilation and cable routing. Deburr all sharp edges.
2. 2 Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
3. 3 Connect a low-impedance protective earth (PE) ground wire to the designated grounding terminal on the Panel PC chassis. This is critical for both safety and noise immunity.
4. 4 Connect the main power supply to the unit, verifying the source voltage matches the rating on the device label. Ensure power cabling is segregated from high-noise signal or power lines.
5. 5 Connect all required communication and I/O cables (e.g., Ethernet, USB, serial). Use shielded cables where specified and ensure shields are properly terminated to ground.
