Description

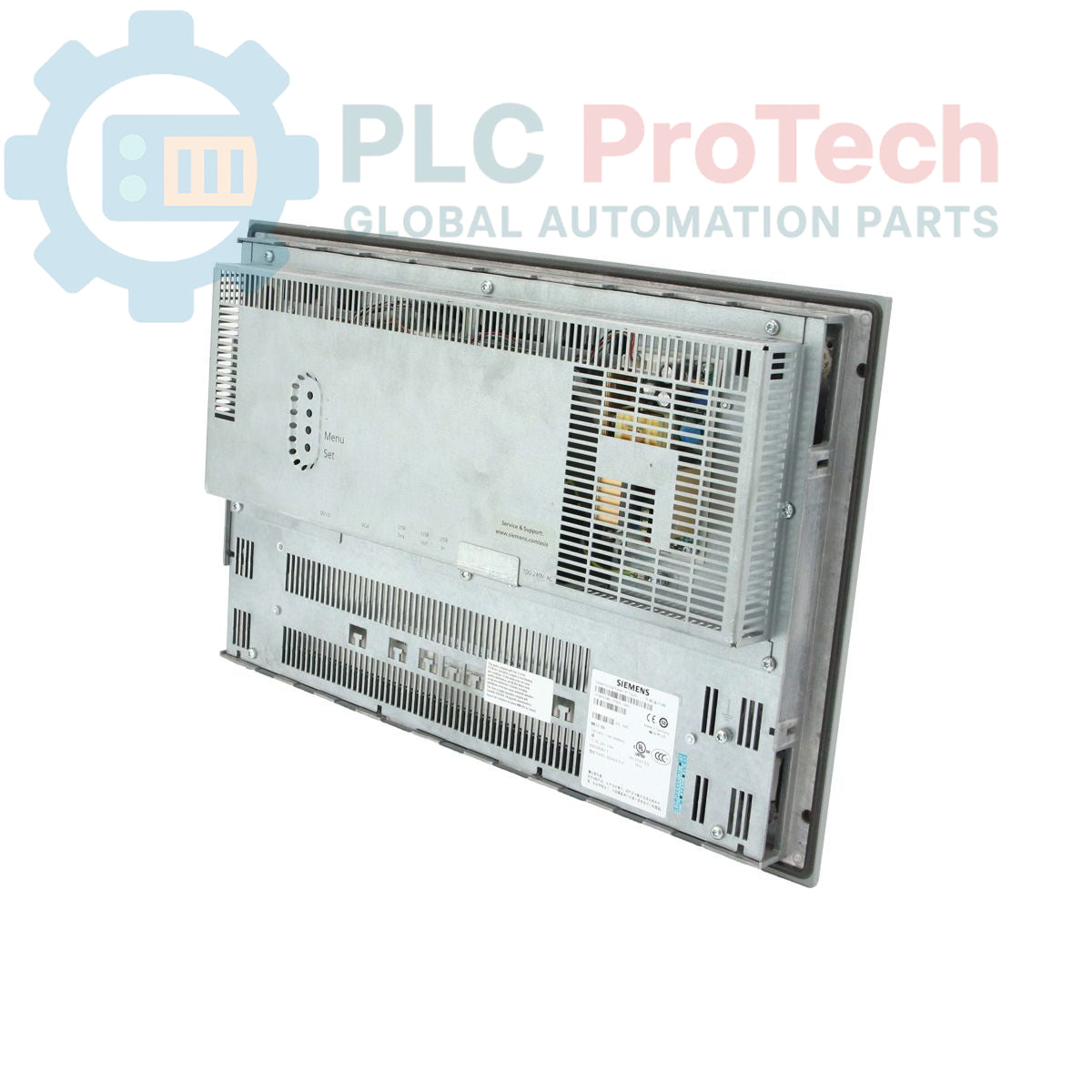

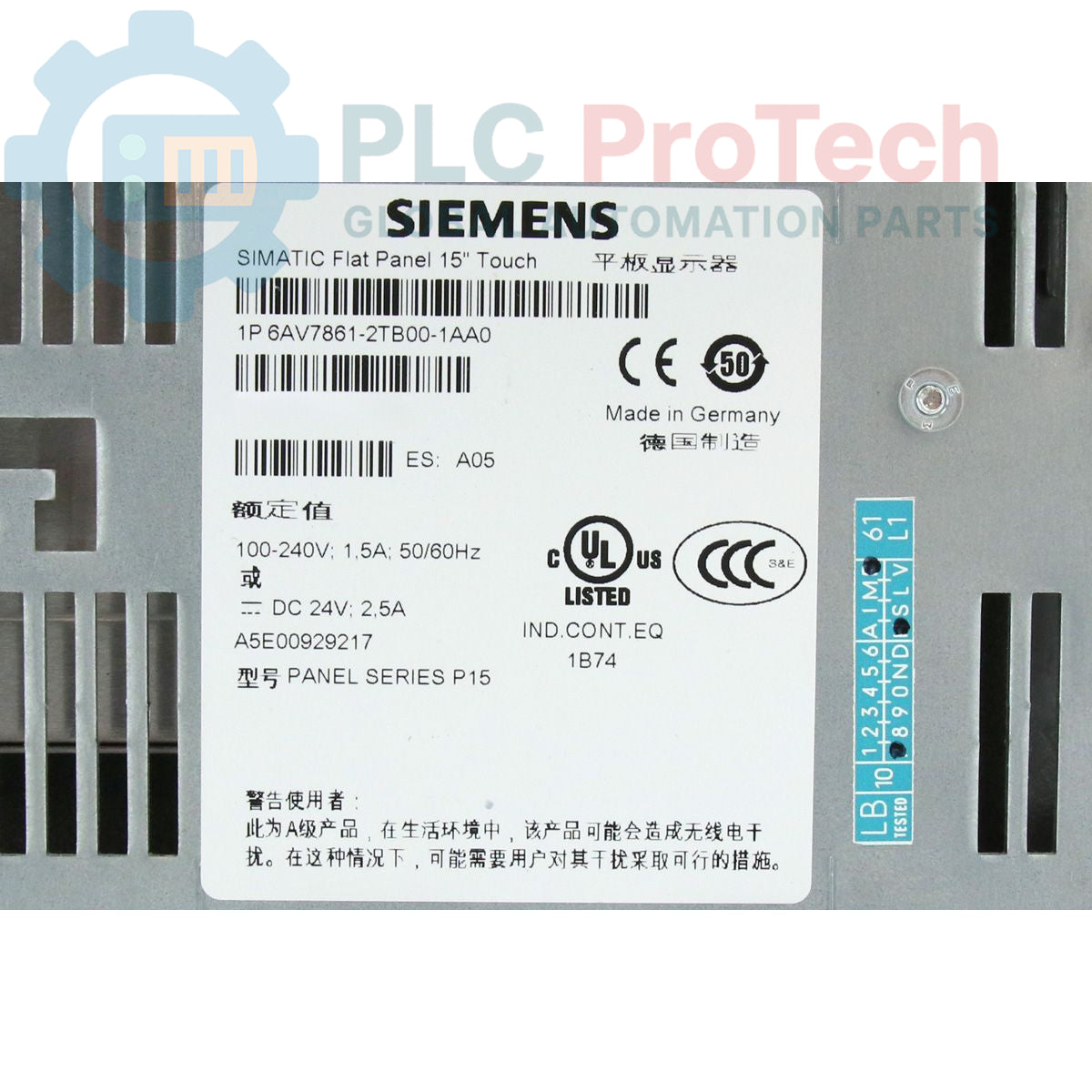

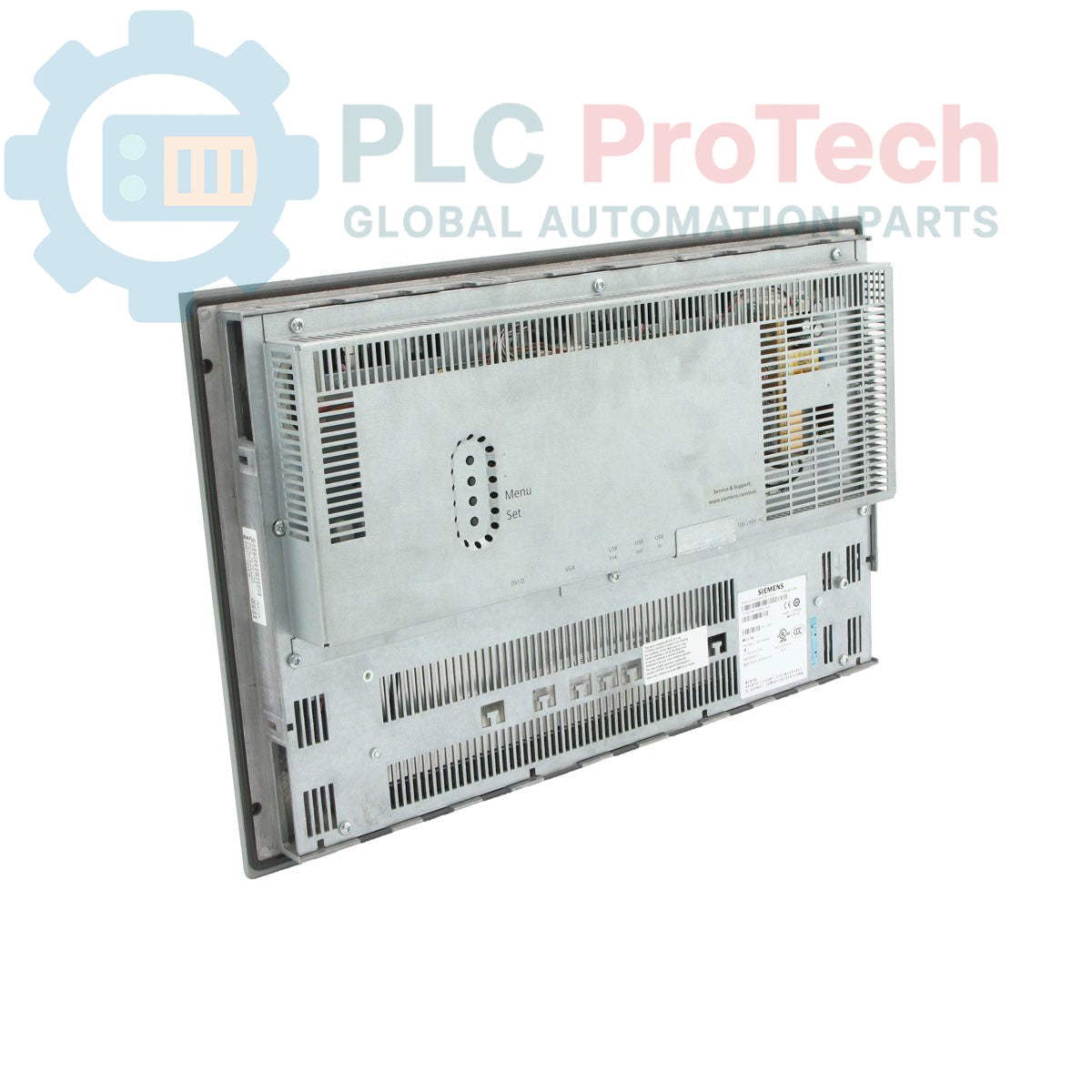

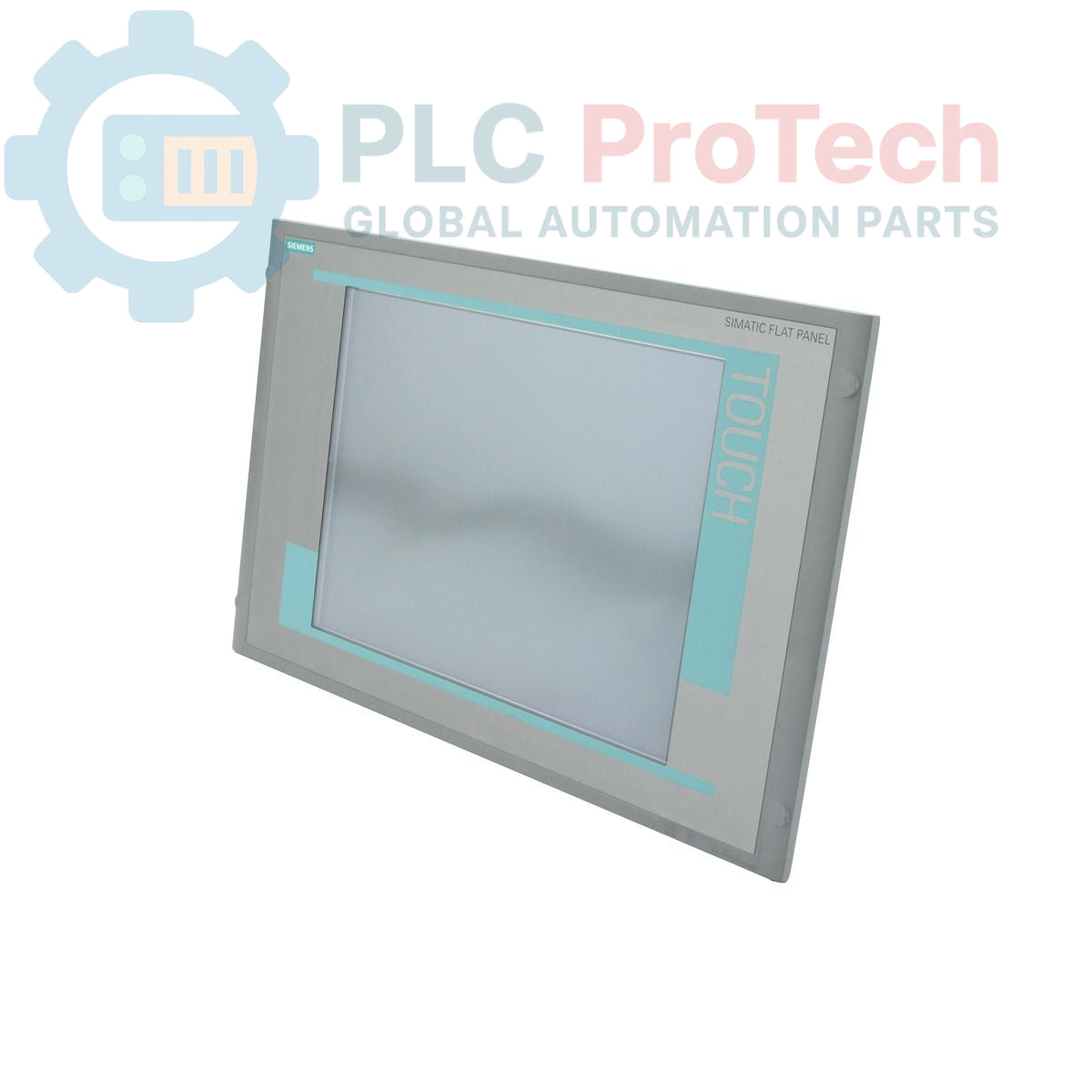

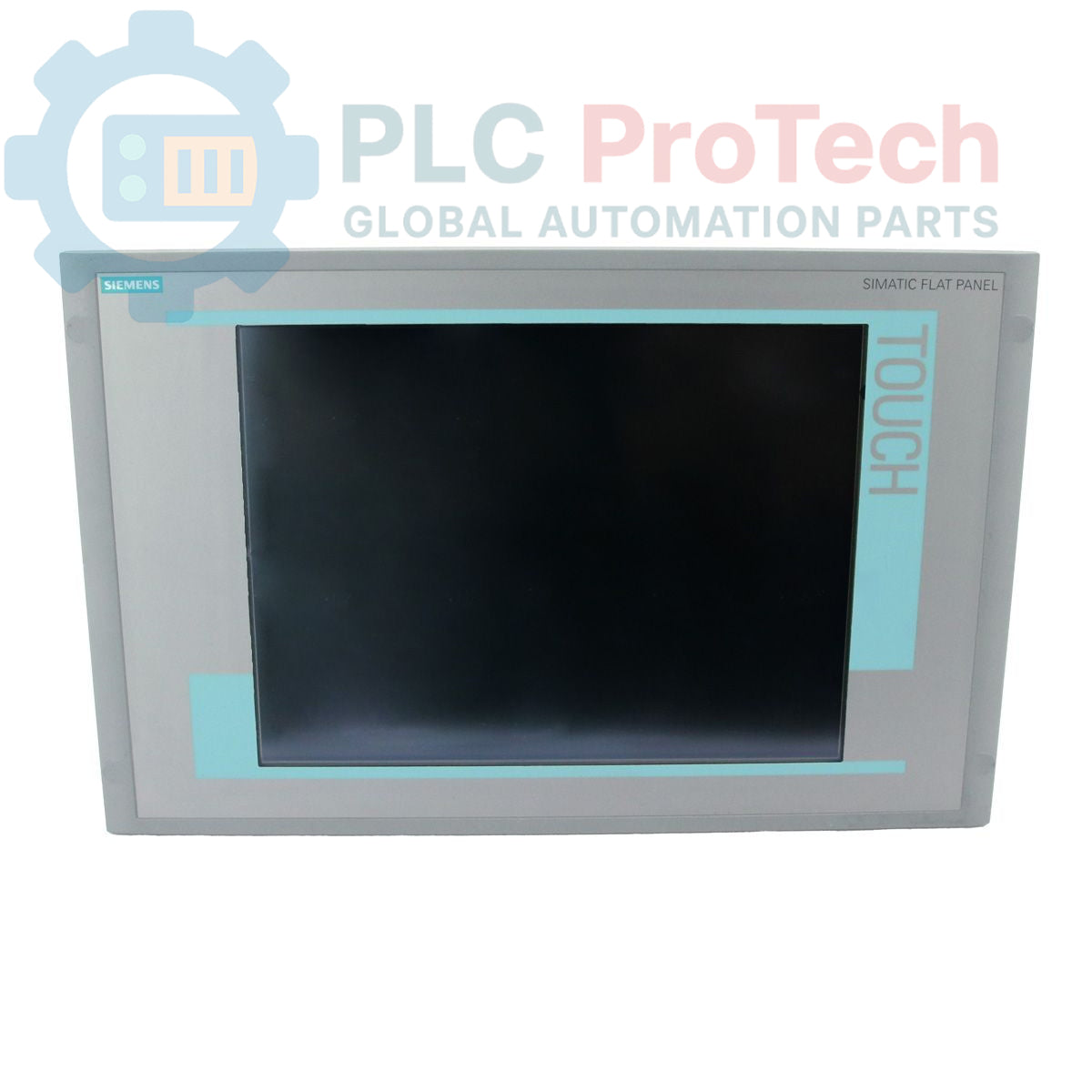

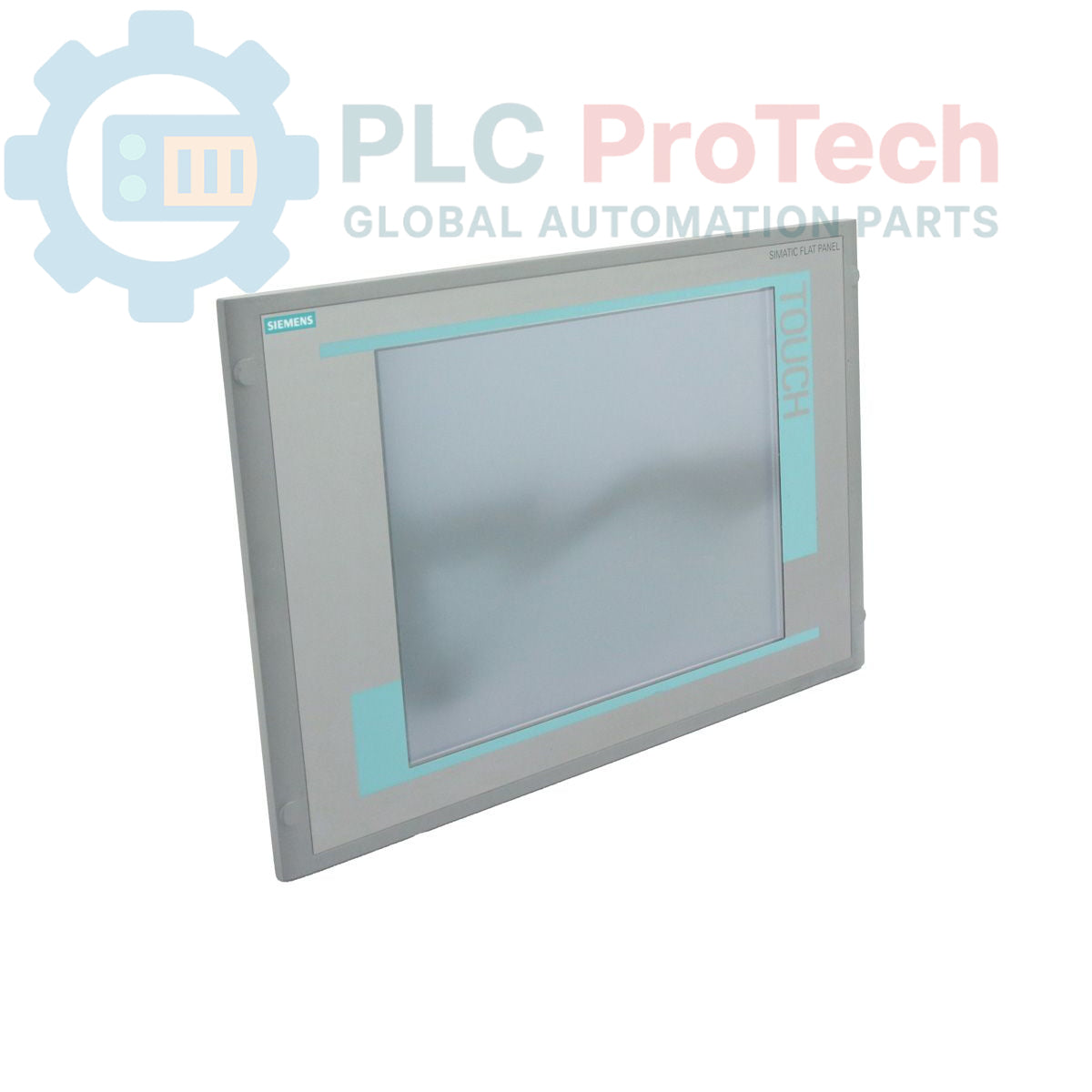

The Siemens 6AV7861-2TB00-1AA0 is a SIMATIC Flat Panel 15T, a 15-inch touch TFT screen engineered for demanding industrial environments where clarity and operational reliability are paramount. This unit provides a display resolution of 1024 x 768 pixels, ensuring sharp visual output and responsive touch functionality for human-machine interface applications. It offers versatile power input options, supporting both 24 V DC and 120/240 V AC, which allows for flexible integration into various industrial power systems. Connectivity is facilitated through VGA and DVI-D interfaces, enabling broad compatibility with industrial PCs and control systems. For immediate setup, a 1.8-meter VGA cable is included. The robust construction and selection of high-quality components ensure the 6AV7861-2TB00-1AA0 can withstand continuous operation in harsh production settings.

Features

• 15-inch Touch TFT Display
• 1024 x 768 Pixels Resolution
• Dual Power Input: 24 V DC and 120/240 V AC

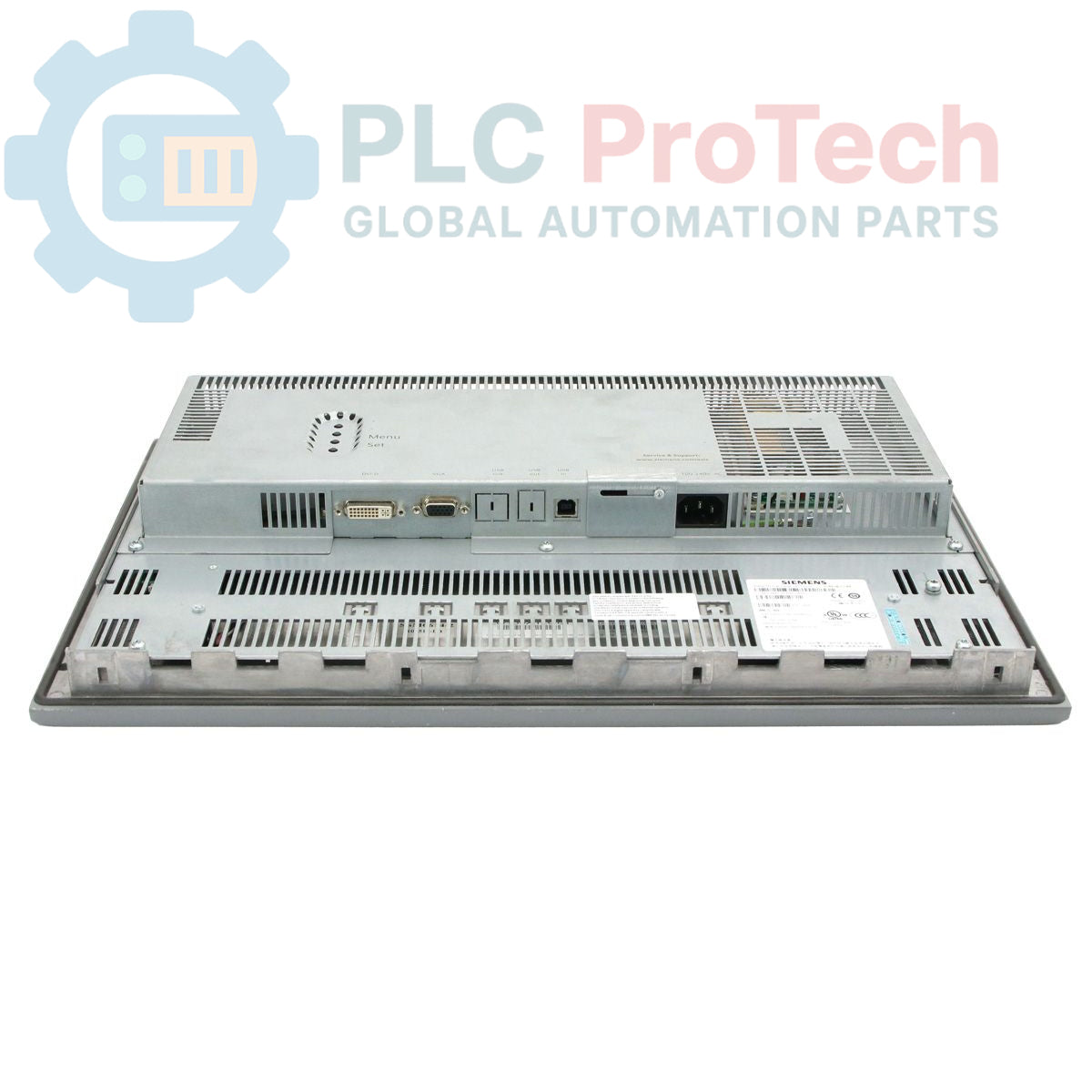

• VGA and DVI-D Interface Support
• Includes 1.8 m VGA Cable
• Designed for Industrial Environments

Applications

• Industrial Human-Machine Interface (HMI)
• Process Visualization and Control
• Machine Operation and Monitoring
• Factory Automation Systems
• Building Management Systems

Technical Specifications

Installation Guidelines

1. De-energize System: Before commencing any installation or wiring, ensure that all associated power supplies to the panel and connected equipment are completely de-energized and locked out according to safety procedures.
2. Mounting: Securely mount the flat panel in the designated enclosure or panel cutout. Ensure adequate clearance for ventilation and cable routing.
3. Connect Video Interfaces: Connect the industrial PC or control system's video output to the flat panel using either the VGA or DVI-D interface. Utilize the included 1.8-meter VGA cable if applicable.
4. Connect Power: Connect the appropriate power supply (24 V DC or 120/240 V AC) to the flat panel's power input terminals. Verify correct polarity for DC connections and proper grounding for AC connections.
5. Cable Management: Route all cables to prevent strain, interference, and damage. Ensure cables are secured and do not obstruct access to other components.
6. System Test: After all connections are made and verified, re-energize the system and perform a functional test of the display and touch functionality.
