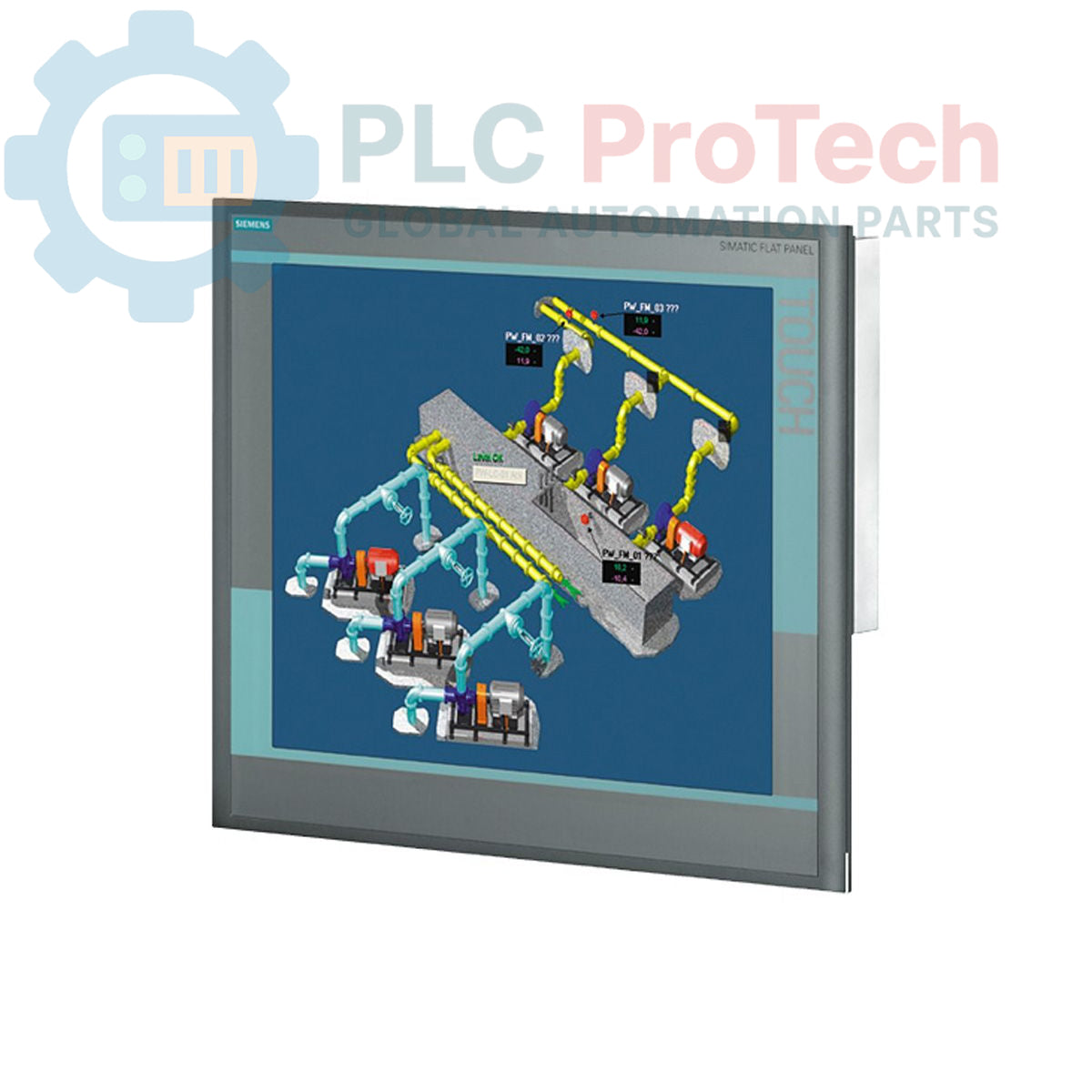

Siemens 6AV7861-3TB00-2AA0 SIMATIC FP 19T Flat Panel

SKU 6AV7861-3TB00-2AA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7861-3TB00-2AA0
  • Origin Germany
  • Product Type: Flat Panel
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.012 kg
  • Dimensions: 50.80 x 22.90 x 61.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Flat Panels SIMATIC FP
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV7861-3TB00-2AA0 is a SIMATIC Flat Panel 19T, designed for industrial human-machine interface (HMI) applications. This unit features a 19-inch touch TFT screen with a resolution of 1280 x 1024 pixels, providing clear visualization and interactive control. It supports flexible power input options, operating on either 24 V DC or 120/240 V AC. Connectivity is provided through VGA and DVI-D interfaces, and the panel includes a 1.8 m VGA cable for immediate setup.

Features

  • 19-inch touch TFT screen
  • 1280 x 1024 pixels resolution
  • Flexible power input: 24 V DC or 120/240 V AC
  • VGA and DVI-D interfaces
  • Includes 1.8 m VGA cable

Applications

The Siemens 6AV7861-3TB00-2AA0 Flat Panel is suitable for various industrial environments requiring robust and reliable visualization and operator control. Typical applications include:
  • Machine operation and control panels
  • Process visualization in manufacturing plants
  • Data display and monitoring stations
  • Human-Machine Interface (HMI) for automation systems

Technical Specifications

Manufacturer Siemens
Range SIMATIC
Subrange FP
Product Type Flat Panel
Product Phase Phase-Out
Screen Size 19-inch
Screen Type Touch TFT
Resolution 1280 x 1024 pixels
Input Voltage 24 V DC, 120/240 V AC
Interfaces VGA, DVI-D
Included Cable VGA cable 1.8 m
Package Dimensions (Calculated) 50.80 x 22.90 x 61.00 cm
Shipping Weight 12.00 kg
Commodity Code 85371091
Export Control Regulations (ECCN) EAR99

Installation Guidelines

Proper installation ensures reliable operation and longevity of the flat panel.
  1. De-energization: Before commencing any installation work, ensure that all power supplies to the control cabinet or mounting area are completely de-energized and secured against accidental re-energization.
  2. Mounting: Mount the flat panel securely into the designated panel cutout. Ensure proper sealing to maintain the specified ingress protection, if applicable.
  3. Power Connection: Connect the appropriate power supply (24 V DC or 120/240 V AC) to the panel's power input terminals. Observe correct polarity for DC connections.
  4. Signal Cable Connection: Connect the industrial PC or control unit to the panel using either the VGA or DVI-D interface. Utilize the included 1.8 m VGA cable or a suitable DVI-D cable.
  5. Grounding: Ensure the panel is properly grounded to the control cabinet's protective earth (PE) busbar to minimize electromagnetic interference and ensure safety.
  6. Cable Management: Route all cables to prevent strain, abrasion, and interference with other components. Secure cables with appropriate fasteners.
  7. Verification: After installation, re-energize the system and verify all connections and panel functionality.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the screen size and resolution of the 6AV7861-3TB00-2AA0?
The panel features a 19-inch touch TFT screen with a resolution of 1280 x 1024 pixels.
What power supply options are available for this flat panel?
The panel supports flexible power input, operating on either 24 V DC or 120/240 V AC.
What video interfaces does the Siemens 6AV7861-3TB00-2AA0 support?
It supports both VGA and DVI-D interfaces for video input.
Is a VGA cable included with the flat panel?
Yes, a 1.8 m VGA cable is included with the panel.
What is the product phase of this SIMATIC Flat Panel?
The Siemens 6AV7861-3TB00-2AA0 is currently in the Phase-Out product phase.
