Description

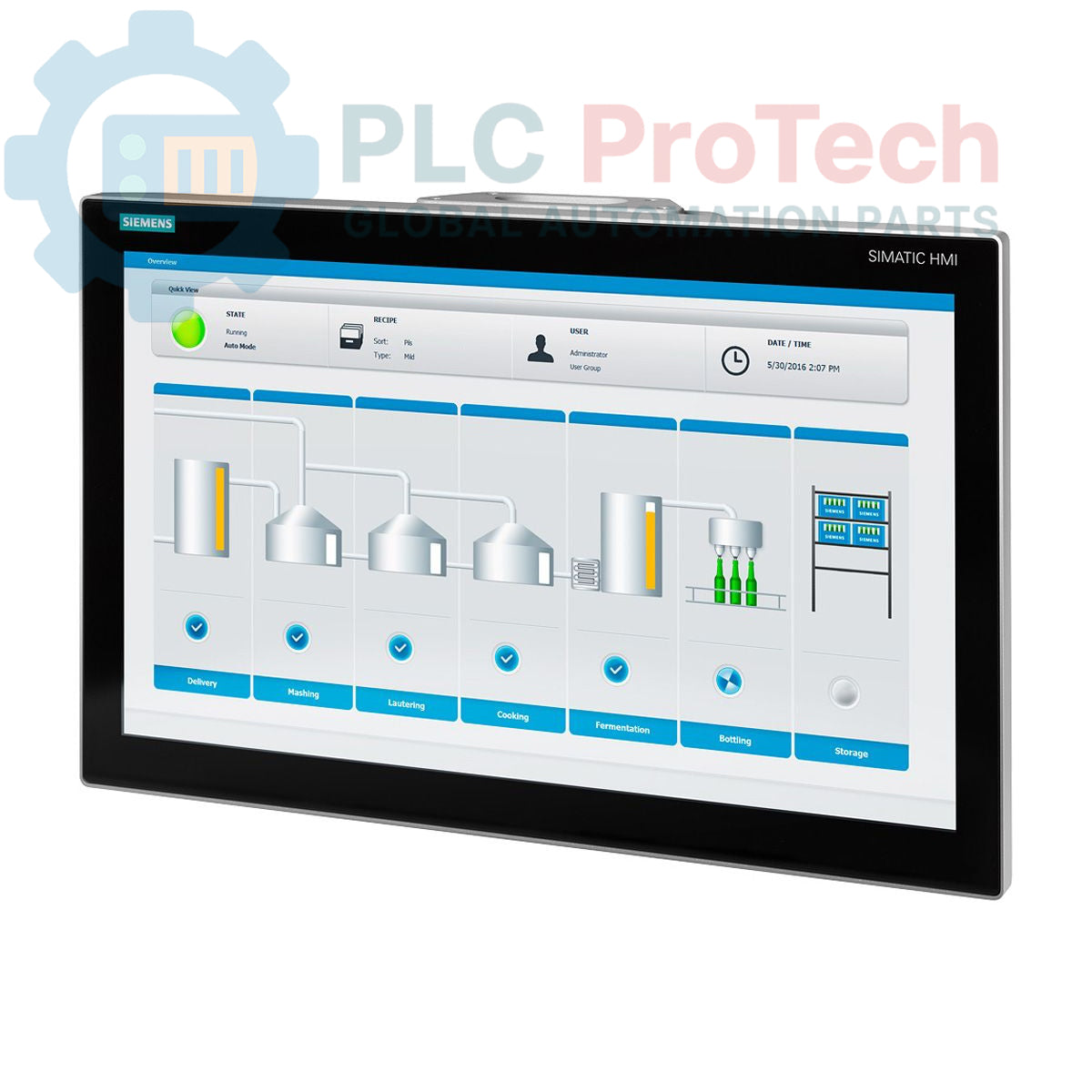

The Siemens 6AV7863-4MB10-0AA0 is a SIMATIC IFP2200 Flat Panel Display, featuring a 22-inch multitouch screen with a 16:9 aspect ratio and Full HD resolution (1920 x 1080 pixels). Designed for industrial control environments, this extended version supports installation up to 30 meters from the operating unit, providing flexibility in factory layouts.

The SIMATIC IFP2200 accommodates versatile power requirements, operating on both 24 V DC and 100-240 V AC supplies. It includes DisplayPort and DVI interfaces, and comes supplied with a 1.8-meter DVI/USB cable for straightforward integration. Its multitouch capability ensures intuitive operation, even when users are wearing gloves, making it suitable for demanding industrial applications requiring clear visualization and dependable performance.

Features

• 22-inch Multitouch Display
• Full HD Resolution (1920 x 1080 pixels)
• 16:9 Aspect Ratio
• Extended Installation Support up to 30 m
• Dual Power Supply Capability (24 V DC / 100-240 V AC)
• Integrated DisplayPort and DVI Interfaces
• Includes 1.8 m DVI/USB Cable

Applications

The Siemens SIMATIC IFP2200 Flat Panel Display is suitable for a wide range of industrial applications, including:

• Human-Machine Interface (HMI) for machine control and monitoring
• Process visualization in manufacturing and automation systems
• Control room displays for operational overview
• Integration into existing production lines requiring robust display solutions
• Environments where intuitive, glove-friendly operation is essential

Technical Specifications

Connections / Interfaces

The Siemens 6AV7863-4MB10-0AA0 Flat Panel Display is equipped with the following interfaces for connectivity:

• DisplayPort
• DVI Interface
• USB (via DVI/USB cable for touch functionality)

Installation Guidelines

1. De-energization: Before commencing installation, ensure all power to the system and the flat panel is disconnected and secured against accidental re-energization.
2. Mounting: Securely mount the flat panel in its designated panel cutout or mounting location, ensuring proper ventilation as required by the system design.
3. Power Connection: Connect the appropriate power supply (either 24 V DC or 100-240 V AC) to the panel's power input terminals. Verify correct polarity for DC connections.
4. Video and USB Connections: Connect the DisplayPort or DVI interface from the operating unit to the flat panel. Utilize the provided 1.8-meter DVI/USB cable to establish both video (if DVI is used) and touch functionality (via USB).
5. Cable Routing: Route all cables to prevent strain, interference, and damage. Ensure cables are secured and do not obstruct access or ventilation.
6. Extended Installation: When utilizing the extended version's capability, ensure the cable run between the operating unit and the flat panel does not exceed 30 meters to maintain signal integrity.
7. Grounding: Ensure the flat panel and the overall system are properly grounded according to local electrical codes and manufacturer recommendations to prevent electrical hazards and ensure stable operation.
