Description

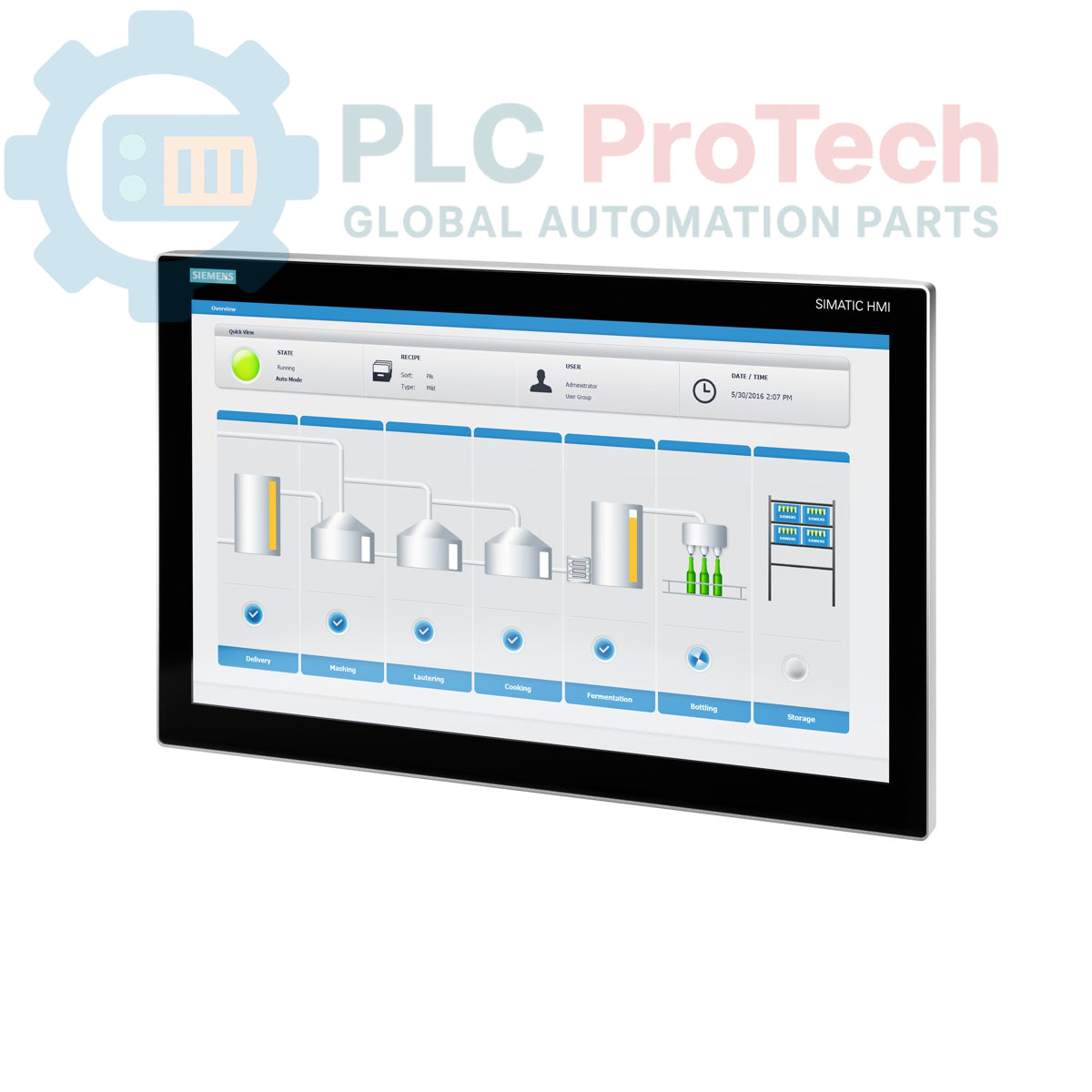

The Siemens 6AV7863-6MA10-2AA0 is a SIMATIC IFP1900 V2 EXTENDED 19-inch Multi-Touch Display, designed as a built-in unit for industrial applications. This display features a 16:9 aspect ratio with a high resolution of 1920x1080 pixels, providing clear visualization for operator interfaces. It operates on a 24 V DC power supply and includes a DisplayPort for video input. For extended installations, the unit supports HDBaseT, allowing it to be placed up to 100 meters away from the host system. A USB interface is provided on the rear side for connectivity, and the display adheres to a standard design for integration into control panels and machinery.

Features

• 19-inch Multi-Touch Display
• 16:9 Aspect Ratio
• 1920x1080 Pixel Resolution
• Designed as a Built-in Unit
• 24 V DC Power Supply
• DisplayPort Video Interface
• HDBaseT support for up to 100 m distance
• Rear-side USB Interface
• Standard Design for industrial integration

Applications

The Siemens 6AV7863-6MA10-2AA0 Multi-Touch Display is suitable for a wide range of industrial automation and control applications, including:

• Operator control panels in manufacturing and process industries
• Human-Machine Interface (HMI) systems for machine operation and monitoring
• Visualization systems in control rooms and distributed control systems (DCS)
• Data display in harsh industrial environments requiring robust, built-in solutions
• Integration into custom industrial PCs and embedded systems

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energization: Ensure all power to the control cabinet or system is de-energized before beginning installation.
2. Mounting: Mount the display securely into the designated panel cutout. Ensure proper sealing to maintain environmental protection ratings if applicable.
3. Power Connection: Connect the 24 V DC power supply to the appropriate terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Video Connection: Connect the DisplayPort cable from the host system to the display's DisplayPort input.
5. HDBaseT Connection: If utilizing the HDBaseT extension, connect compatible HDBaseT cables between the display and the HDBaseT transmitter/receiver unit, ensuring cable length does not exceed 100 meters.
6. USB Connection: Connect any required USB devices or host USB cables to the USB port on the rear side of the display.
7. Grounding: Ensure proper grounding of the display and associated components to minimize electrical noise and ensure safety.
8. Cable Management: Route all cables to prevent strain, interference, and damage, securing them with appropriate cable ties or conduits.
9. Power-up: After all connections are verified, re-energize the system and confirm proper display operation.
