Description

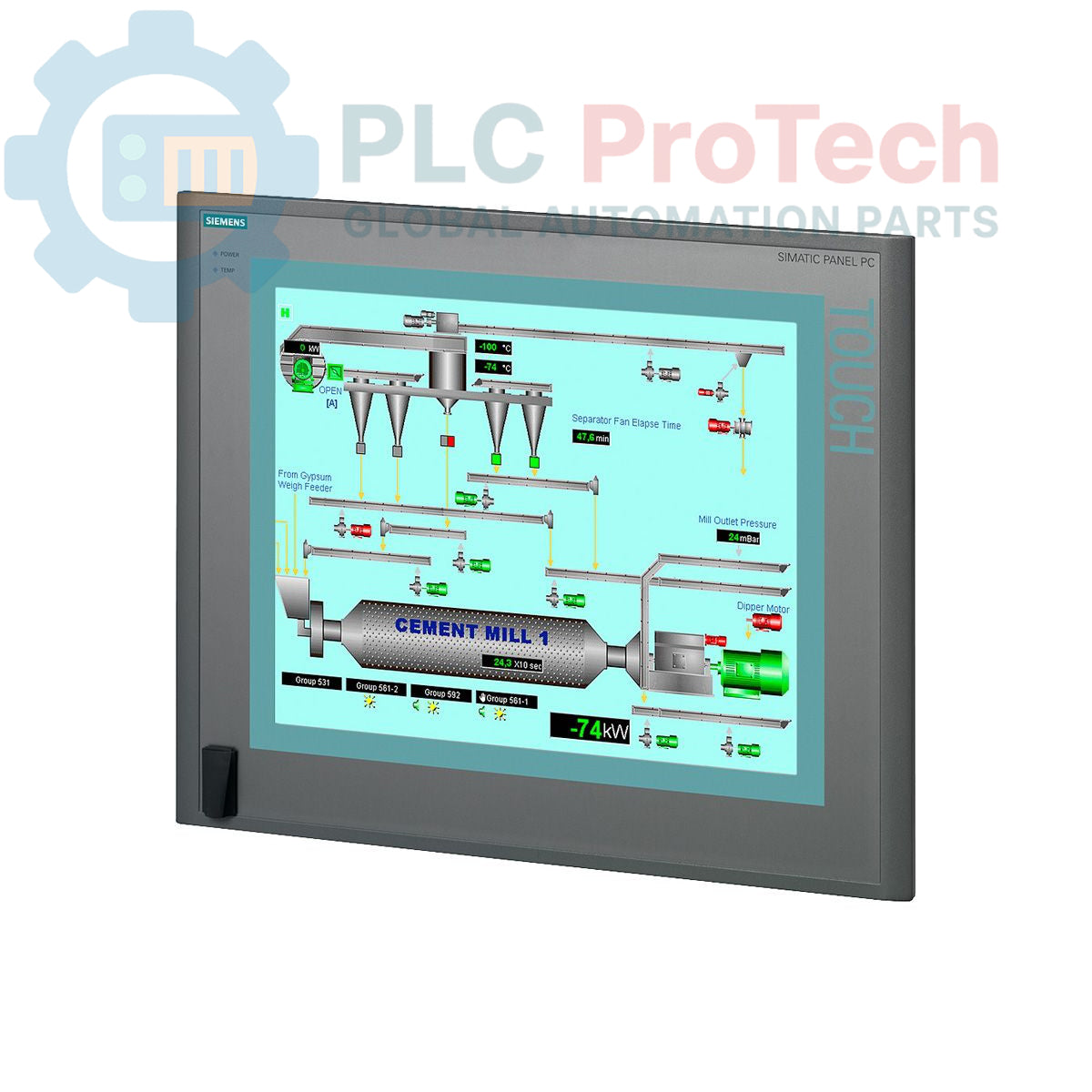

The Siemens 6AV7874-0DC20-1AC0 is a SIMATIC Panel PC 677B, designed for industrial human-machine interface (HMI) and control applications. This robust panel PC features a 17-inch touch display with a resolution of 1280 x 1024 pixels. It is equipped with a Core 2 Duo T5500 processor operating at 1.66 GHz, 1 GB of DDR2 RAM, and a 160 GB SATA hard disk drive. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports (plus a front-side USB interface), and one serial (COM1) port. An integrated DVD+-R+-RW drive is included, alongside a PROFIBUS/MP interface with 2 MB of buffered SRAM. The unit is powered by a 110/230 V AC supply with NAMUR support and comes with a UK power supply cable. It operates with Windows XP Professional MUI, supporting multiple languages.

Features

• 17-inch touch display with 1280 x 1024 resolution
• Core 2 Duo T5500 processor, 1.66 GHz with 2 MB SLC
• 1 GB DDR2 RAM
• 160 GB SATA HDD (3.5")
• Integrated DVD+-R+-RW optical drive
• Two 10/100/1000 Mbit/s Ethernet interfaces
• Four USB V2.0 ports and one front-side USB interface
• One serial (COM1) port
• PROFIBUS/MP interface with 2 MB buffered SRAM
• Two PCI expansion slots
• 110/230 V AC power supply with NAMUR functionality
• Pre-installed Windows XP Professional MUI (Multi-User Interface)

Applications

The Siemens SIMATIC Panel PC 677B is suitable for a wide range of industrial applications requiring robust computing and visualization capabilities. Typical uses include:

• Machine control and operation
• Process visualization and monitoring
• Data acquisition and logging
• Factory automation HMI solutions
• Supervisory control systems

Technical Specifications

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the panel PC into a suitable panel cutout or enclosure, ensuring adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the 110/230 V AC power supply cable to the designated power input terminal. Verify correct voltage and grounding.
4. Grounding: Establish a proper protective earth (PE) connection to the panel PC chassis to ensure safety and minimize electromagnetic interference.
5. Interface Connections: Connect Ethernet cables to the RJ45 ports, USB devices to the USB ports, and serial devices to the COM1 port as required by the application. Ensure proper cable routing to prevent strain and interference.
6. PROFIBUS/MP Connection: If utilizing PROFIBUS/MP, connect the appropriate bus cable to the designated interface, observing correct termination and shielding practices.
7. Ventilation: Ensure that the panel PC's ventilation openings are not obstructed to maintain proper operating temperature and prevent overheating.
8. Power Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
