6AV7875-0AB10-1AC0

Siemens

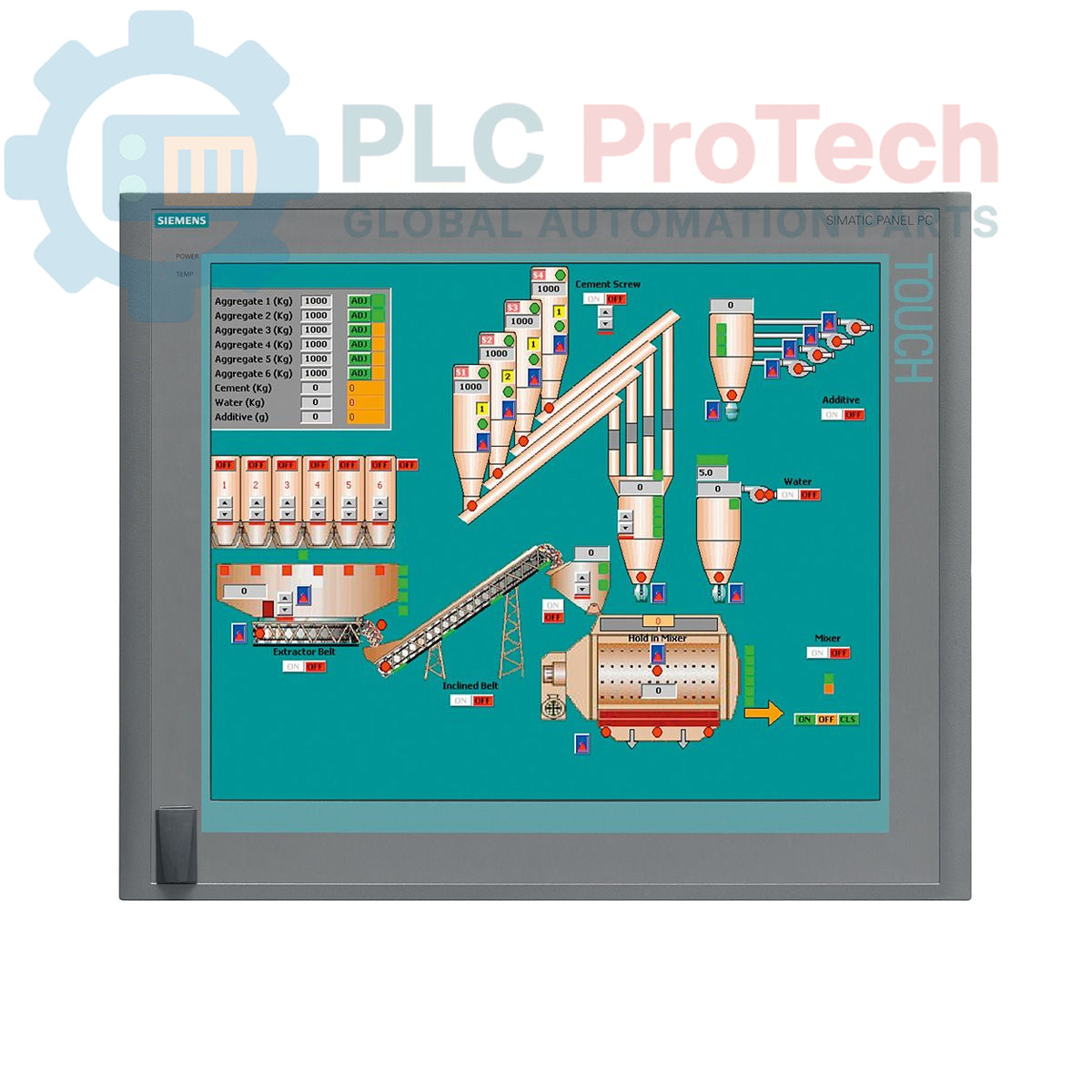

Siemens 6AV7875-0AB10-1AC0 SIMATIC Panel PC 677B 19-inch Touch Panel PC

SKU 6AV7875-0AB10-1AC0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7875-0AB10-1AC0
  • Origin Germany
  • Product Type: Panel PC
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.017 kg
  • Dimensions: 67.0 x 83.0 x 11.5 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Panel PCs SIMATIC Panel PC 677B
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV7875-0AB10-1AC0 is a SIMATIC Panel PC 677B designed for industrial human-machine interface (HMI) and control applications. This unit integrates a 19-inch touch display with a 1280x1024 resolution into a robust panel-mount chassis. It is powered by an Intel Celeron M440 processor running at 1.86 GHz and is equipped with 512 MB of DDR2 RAM. For industrial connectivity, the device includes dual Gigabit Ethernet ports, a serial port, multiple USB 2.0 interfaces, and an integrated PROFIBUS/MPI port. The system comes pre-installed with the Windows XP Professional operating system and includes a 160 GB SATA hard drive and a DVD+/-RW optical drive.

Features

  • 19-inch color touch display with 1280 x 1024 pixel resolution.
  • Intel Celeron M440 processor operating at 1.86 GHz.
  • Integrated PROFIBUS/MPI interface for fieldbus communication.
  • Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity.
  • Includes 160 GB SATA HDD and a DVD+/-RW optical drive.
  • Front-panel USB 2.0 port for convenient peripheral access.
  • PCI and PCIe x4 expansion slots for additional I/O cards.
  • Operates on a 24 V DC power supply.

Applications

  • Process visualization and control in manufacturing plants.
  • Machine-level operator interfaces for complex machinery.
  • Data acquisition and logging systems in industrial environments.
  • Supervisory control and data acquisition (SCADA) nodes.

Technical Specifications

Specification Value
General
Product Type Panel PC
Series SIMATIC Panel PC 677B
PLM Product Phase Obsolete
Processor & Memory
CPU Intel Celeron M440
CPU Clock Speed 1.86 GHz
L2 Cache 1 MB SLC
RAM 512 MB DDR2
Buffered SRAM 2 MB
Storage
Hard Drive 160 GB SATA HDD (3.5-inch)
Optical Drive DVD+/-RW
Display
Display Type Touch Screen
Display Size 19-inch
Resolution 1280 x 1024 pixels
Interfaces
Ethernet 2 x 10/100/1000 Mbit/s
USB 4 x USB 2.0 (rear), 1 x USB (front)
Serial 1 x COM1
Fieldbus 1 x PROFIBUS/MPI
Expansion Slots
PCIe 1 x PCIe x4
PCI 1 x PCI
Power Supply
Input Voltage 24 V DC
Software
Operating System Windows XP Professional MUI (Multi-User Interface)
Logistics & Compliance
Manufacturer Siemens
Country of Origin (Estimated) Germany
Package Dimensions 67.0 x 83.0 x 11.5 cm
Shipping Weight 17.0 kg
Commodity Code 85371091
ECCN N

Installation Guidelines

CRITICAL WARNING: Electrical Hazard. Installation must be performed by qualified personnel only. Failure to de-energize equipment before installation can result in severe injury or death. Always adhere to local Lockout-Tagout (LOTO) procedures.
  1. 1 De-energize the main control cabinet and verify the absence of voltage before beginning work.
  2. 2 Verify the panel cutout dimensions match the Panel PC's requirements. Ensure the mounting surface is clean, flat, and can support the unit's weight.
  3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to ensure a proper seal.
  4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the chassis. This is critical for safety and noise immunity.
  5. 5 Connect the 24 V DC power supply wiring to the power connector, ensuring correct polarity. Use appropriately sized conductors for the load.
  6. 6 Connect Ethernet, PROFIBUS, and any other required communication or peripheral cables. Ensure proper shielding and grounding practices are followed for all data cables.
  7. 7 Perform a final inspection of all connections. Once clear, remove LOTO devices and re-energize the cabinet to commission the Panel PC.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What processor is used in this Panel PC?
The 6AV7875-0AB10-1AC0 is equipped with an Intel Celeron M440 processor operating at a clock speed of 1.86 GHz.
What operating system is pre-installed on the device?
This unit comes pre-installed with Windows XP Professional Multi-User Interface (MUI), which includes support for multiple languages.
Does this unit have a PROFIBUS port?
Yes, it features an integrated PROFIBUS/MPI interface for direct connection to industrial fieldbus networks.
What is the screen size and resolution?
It has a 19-inch touch display with a native resolution of 1280 x 1024 pixels.
What are the available expansion slots?
The Panel PC provides one PCIe x4 slot and one standard PCI slot for adding expansion cards.
