Description

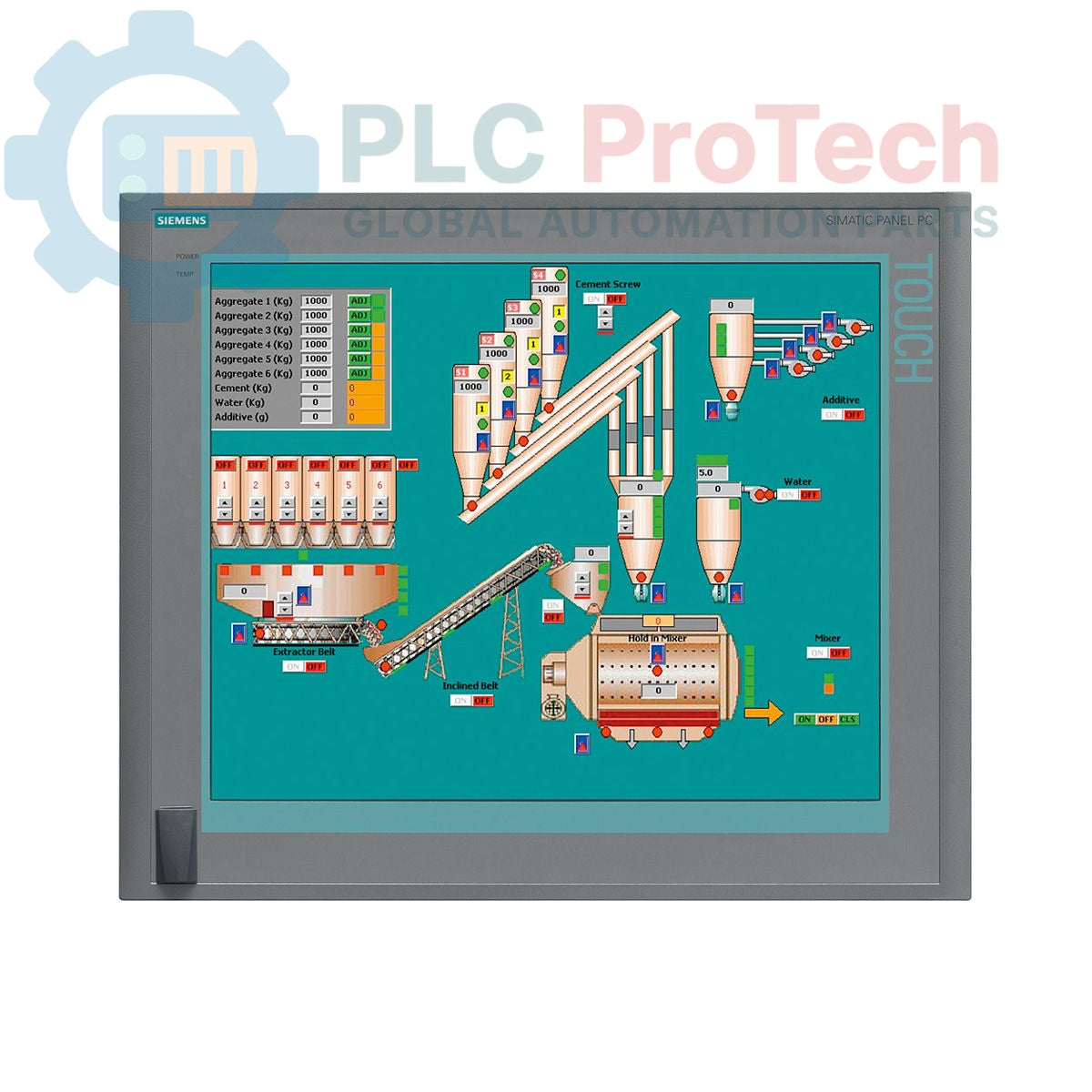

This device is a Siemens SIMATIC Panel PC 677B, model 6AV7875-0BD22-1AC0, designed for integrated HMI and control tasks in industrial environments. It features a 19-inch touch display with a 1280 x 1024 resolution and is powered by an Intel Core 2 Duo T5500 processor operating at 1.66 GHz. The system is configured with 1 GB of DDR2 RAM and a redundant RAID1 storage array consisting of two 250 GB SATA hard drives. Connectivity is provided through dual Gigabit Ethernet ports, four rear USB 2.0 ports, a front-side USB port, a serial COM port, and an integrated PROFIBUS/MPI interface for field-level communication.

Features

• 19-inch TFT touchscreen display
• Intel Core 2 Duo T5500 1.66 GHz processor
• 1 GB DDR2 system memory
• RAID1 configuration with 2x 250 GB SATA hard drives
• Integrated DVD+/-R+-RW optical drive
• Dual 10/100/1000 Mbit/s Ethernet interfaces
• Onboard PROFIBUS/MPI communication port
• Expansion via 1x PCIe x4 and 1x PCI slots
• Pre-installed with Windows XP Professional MUI
• Front-panel USB 2.0 interface for convenient access

Applications

• Process visualization and control
• Machine-level Human Machine Interface (HMI)
• Data acquisition and logging systems
• Manufacturing Execution Systems (MES) terminals
• Industrial automation control rooms

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is de-energized and locked out according to safety procedures. Verify the absence of voltage.
2. 2 Prepare the panel cutout according to the device's mechanical specifications. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the chassis. This is critical for safety and noise immunity.
5. 5 Connect the 110/230 V AC power supply cable to the unit's power input connector. Ensure the power source is stable and correctly rated.
6. 6 Connect Ethernet, PROFIBUS, USB, and any other required communication or peripheral cables. Use shielded cables for all data lines and ensure proper shield termination.
7. 7 After verifying all connections are secure, remove the lockout/tagout and re-energize the cabinet. Power on the Panel PC and confirm proper boot-up and system operation.
