Description

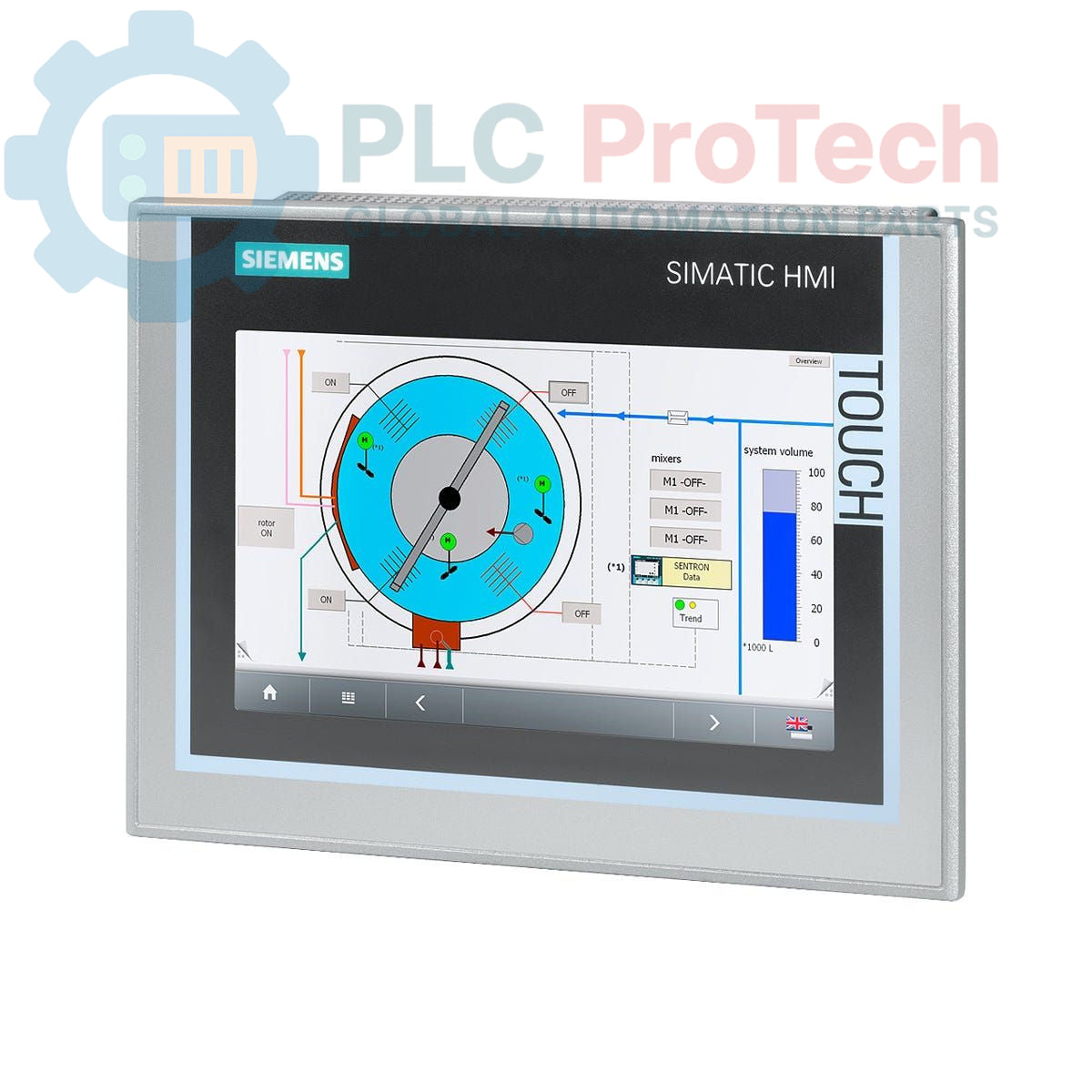

The Siemens 6AV7881-1AF01-8DP0 is a SIMATIC IPC277D Nanopanel PC designed for integrated HMI and control applications. This compact unit features a 7-inch TFT touch display and is powered by a 24 V DC supply. It is equipped with an Intel Atom E660 (1.3 GHz) processor, 2 GB of RAM, and an 80 GB SATA Solid-State Drive for reliable, fanless operation. The device comes pre-loaded with a comprehensive software package, including Windows Embedded Standard 7 SP1, WinAC RTX 2010 for real-time control, and WinCC Advanced RT V13/V14 licenses for visualization tasks, supporting up to 2048 PowerTags with logging and recipe functionalities.

Features

• 7-inch TFT touchscreen display
• Intel Atom E660 processor operating at 1.3 GHz
• 2 GB of integrated RAM
• 80 GB SATA Solid-State Drive (SSD) for storage
• Dual 10/100/1000 Mbps Ethernet RJ45 ports
• Three high-current USB 2.0 ports
• One serial interface (COM1)
• Integrated CompactFlash slot for memory expansion
• Pre-installed with WES 7 SP1, WinAC RTX 2010, and WinCC Advanced RT V13/V14

Applications

• Machine-level control and visualization (HMI)
• Process data acquisition and logging
• Factory and plant automation systems
• Compact control panels in manufacturing environments

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is de-energized and locked out. Verify the absence of voltage before proceeding.
2. 2 Prepare the panel cutout according to the device's mechanical specifications. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout from the front. Secure it evenly from the rear using the provided mounting clamps, tightening to the specified torque to ensure a proper seal.
4. 4 Connect the protective earth (PE) terminal to the cabinet's main ground point using a low-impedance conductor. This is the first electrical connection to be made.
5. 5 Connect the 24 V DC power supply, ensuring correct polarity. Use a stable, filtered power source rated for industrial environments.
6. 6 Connect Ethernet, USB, and serial communication cables as required. Ensure proper cable shielding and routing to minimize electromagnetic interference.
7. 7 Once all connections are secure, remove the lockout/tagout and re-energize the cabinet. Power on the device and verify system startup and functionality.
