Description

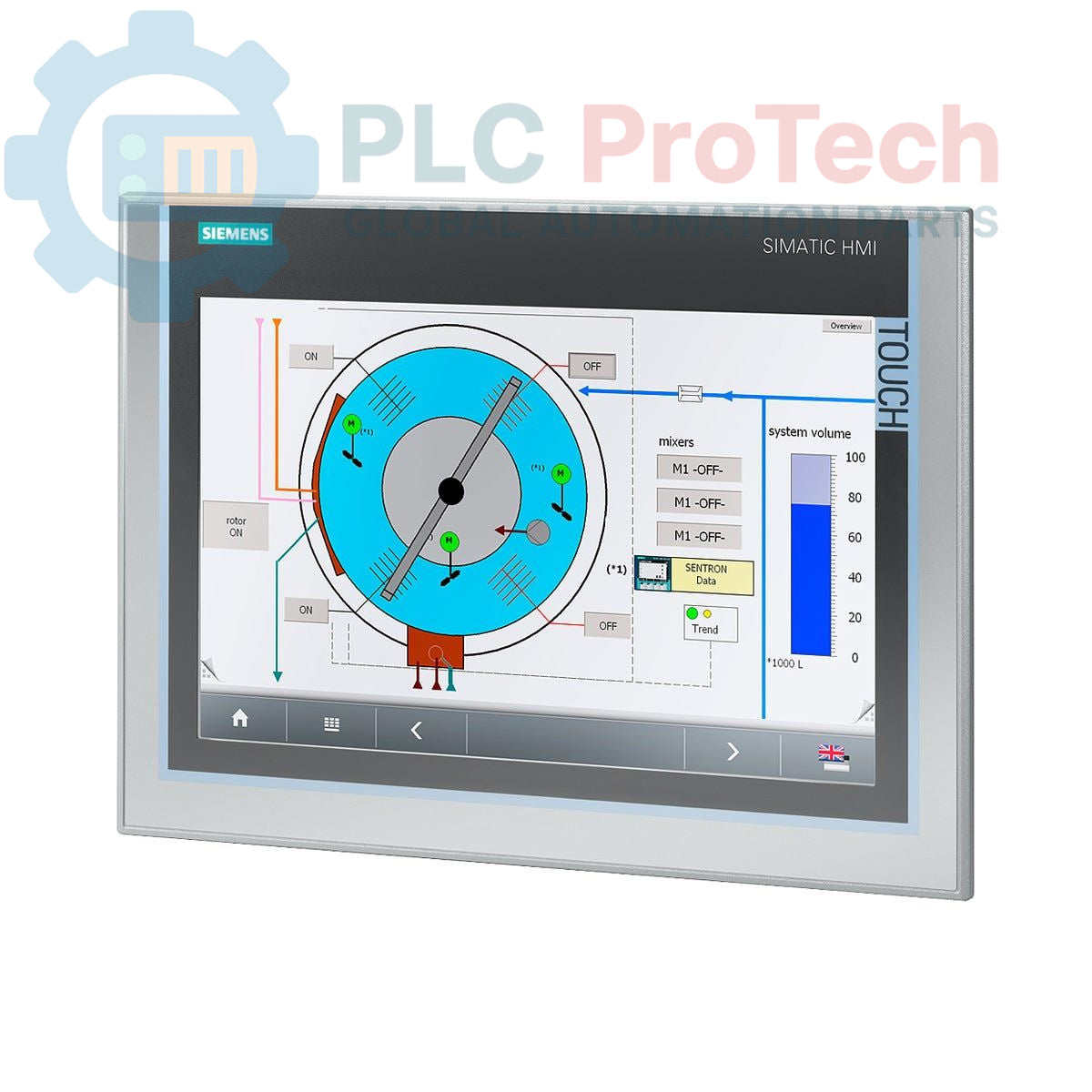

This Siemens 6AV7881-3AE00-6DA0 is a SIMATIC IPC277D Nanopanel PC designed for embedded machine-level visualization and control tasks. It features a 12-inch Touch TFT display and is powered by an Intel ATOM E660 (1.3 GHz) processor with 2 GB RAM. For storage, the unit is equipped with a 240 GB Solid-State Drive (SATA) and includes a CompactFlash slot for additional expansion. Connectivity is provided through dual Gigabit Ethernet ports, three high-current USB 2.0 ports, and a serial interface. The system operates on a 24 V DC power supply and comes with Windows Embedded Standard 7 SP1 pre-installed.

Features

• 12-inch TFT touchscreen display for operator interface
• Intel ATOM E660 1.3 GHz processor
• 2 GB of integrated RAM
• 240 GB SATA Solid-State Drive (SSD) for reliable, fast-booting operation
• Dual 10/100/1000 Mbps Ethernet ports for network integration
• Three high-current USB 2.0 ports and one serial (COM1) port
• Integrated CompactFlash card slot
• Operates on a standard 24 V DC industrial power supply
• Pre-installed with Windows Embedded Standard 7 SP1 (WES 7 SP1)

Applications

• Machine-level Human Machine Interface (HMI)
• Data acquisition and logging systems
• Process visualization and control in manufacturing
• Compact control room operator stations
• Manufacturing Execution System (MES) terminals

Technical Specifications

Installation Guidelines

1. 1 Panel Cutout and Mounting: Prepare the enclosure cutout according to the device's mechanical drawings. Ensure the mounting surface is clean, flat, and rigid. Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps to maintain the specified IP rating. Do not overtighten.
2. 2 Protective Earth (PE) Connection: Connect the chassis grounding terminal to the enclosure's main protective earth bus using a low-impedance conductor. This is critical for personnel safety and noise immunity.
3. 3 Power Supply Wiring: Connect a stable, regulated 24 V DC power source to the designated power input terminals. Verify correct polarity (+/-) before applying power. Use appropriately sized conductors and ensure the power supply is adequately protected against overcurrent.
4. 4 Interface Connections: Connect Ethernet, USB, and serial cables as required. Route communication cables separately from high-voltage power wiring to minimize electromagnetic interference (EMI). Use shielded cables for all data communication where specified.
5. 5 System Power-Up: After verifying all connections, remove the LOTO device and apply power. Observe the boot sequence to ensure the operating system loads correctly. Proceed with application-specific software configuration.
