Description

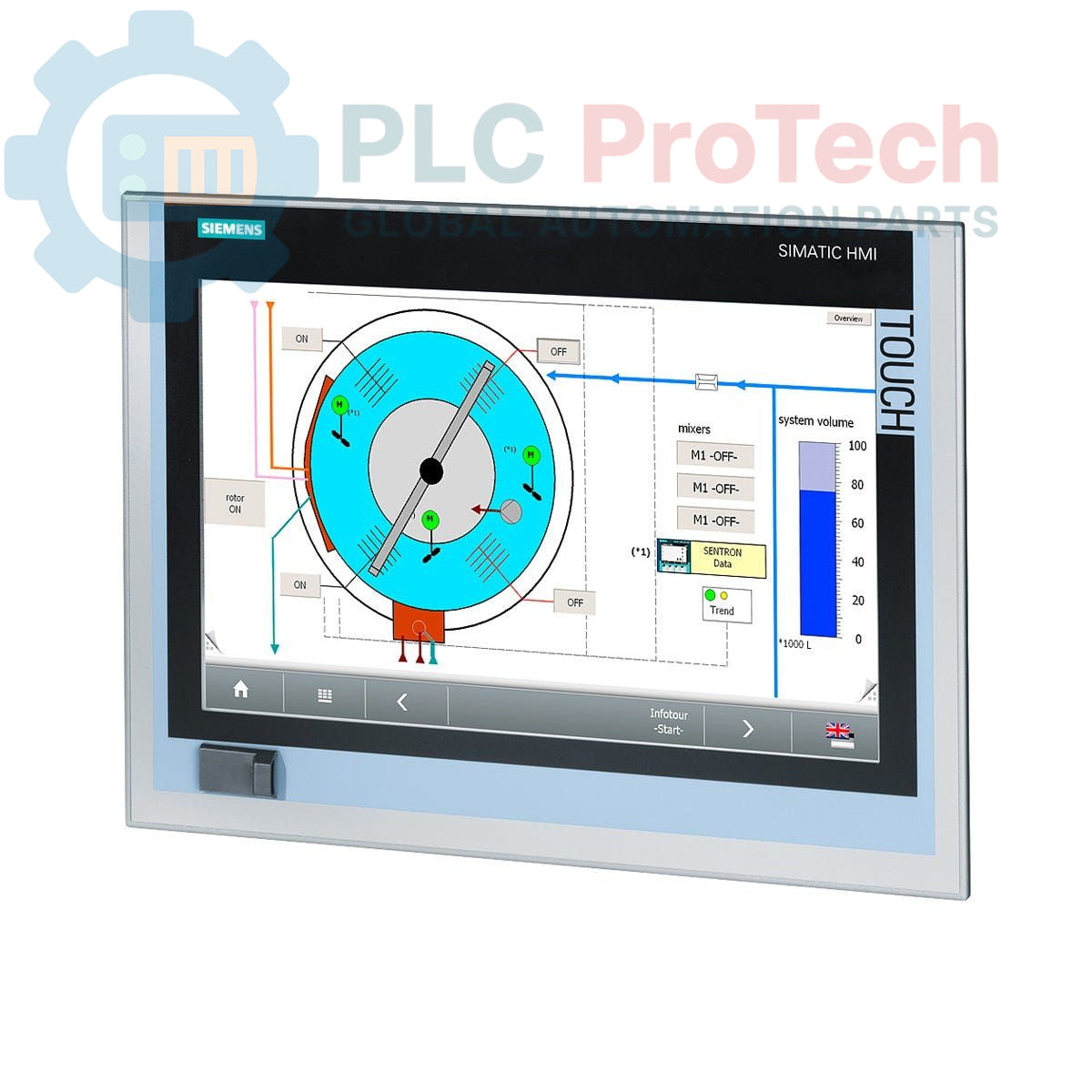

This is a Siemens SIMATIC IPC277D Nanopanel PC, model 6AV7881-4AF00-8DA0, designed for machine-level visualization and control tasks. The unit features a 15-inch Touch TFT display, an Intel Atom E660 (1.3 GHz) processor, and 2 GB of RAM. Storage is provided by an 80 GB SATA Solid-State Drive, and the system operates on a 24 V DC power supply. It comes pre-installed with Windows Embedded Standard 7 SP1 and offers extensive connectivity through dual Gigabit Ethernet ports, multiple USB interfaces, and a serial port.

Features

• 15-inch TFT display with touch functionality
• Front-mounted USB port for convenient access
• Dual Gigabit Ethernet ports (10/100/1000 Mbps)
• Three high-current USB 2.0 ports
• Integrated Compact Flash (CF) card slot for storage expansion
• Pre-installed with Windows Embedded Standard 7 SP1
• Standard memory retentivity for non-volatile data storage

Applications

• Human-Machine Interface (HMI) for machinery control
• Data acquisition and logging in manufacturing environments
• Process visualization and monitoring
• Factory automation and assembly line control stations

Technical Specifications

Installation Guidelines

1. 1 Verify Panel Cutout: Ensure the mounting cutout in the control cabinet panel corresponds to the IPC277D's required dimensions for a secure and sealed fit.
2. 2 De-energize System: Before installation, completely de-energize the control cabinet and apply appropriate Lockout/Tagout (LOTO) procedures to prevent accidental power-up.
3. 3 Mount the Unit: Insert the Panel PC into the cutout from the front of the panel. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure proper sealing.
4. 4 Connect Power: Connect the 24 V DC power supply to the designated power terminal. Verify correct polarity (+/-) before energizing to prevent damage to the internal circuitry.
5. 5 Establish Ground Connection: Connect the functional earth (ground) terminal on the device to the control cabinet's main ground bar using a low-impedance conductor. This is critical for noise immunity and safety.
6. 6 Connect Peripherals: Connect Ethernet, USB, and serial communication cables as required. Ensure all cables are properly routed and secured to prevent strain on the connectors.
