Description

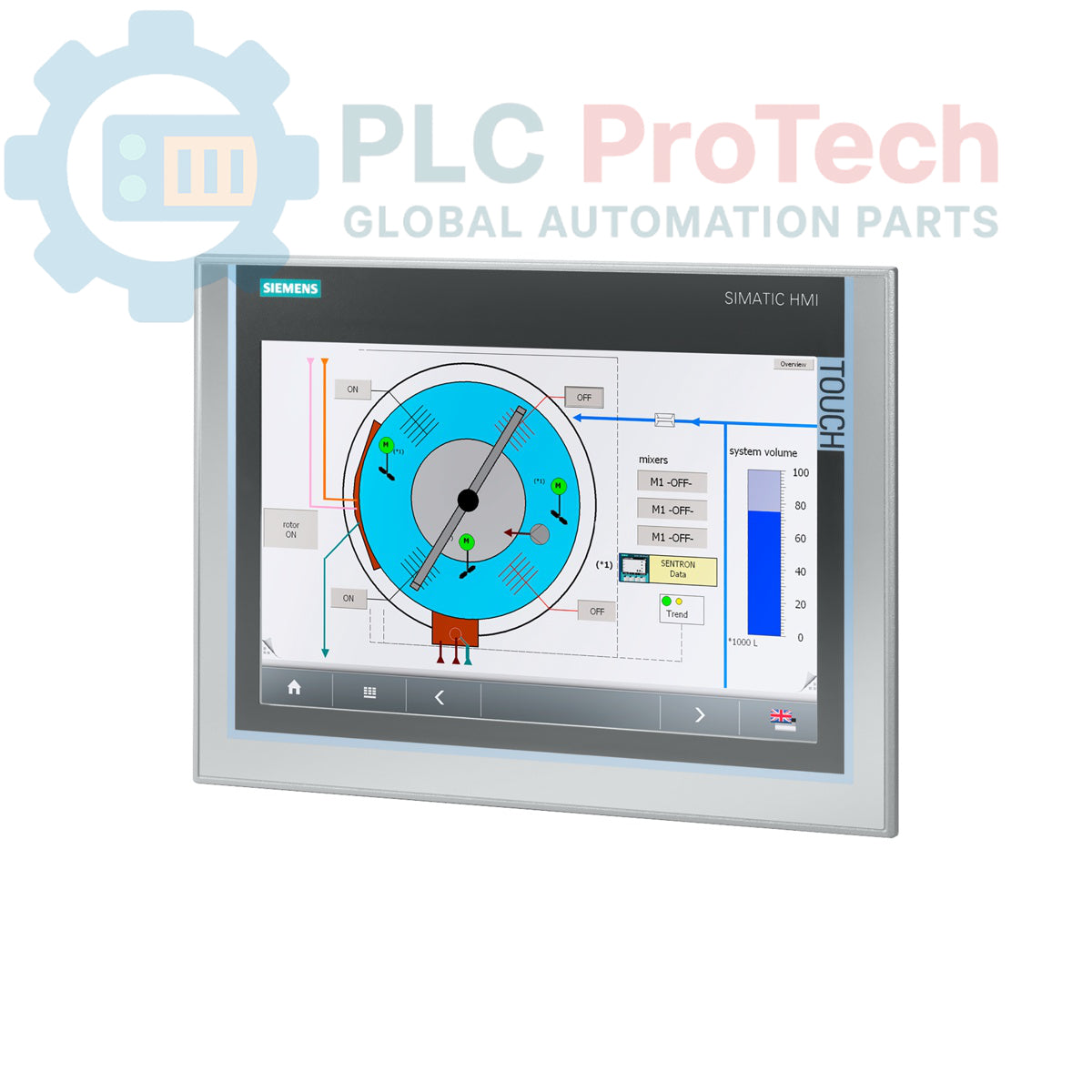

The Siemens 6AV7882-0CA10-2CA0 is a SIMATIC IPC277E Nanopanel PC, featuring a 12-inch Touch TFT display for intuitive interaction and data visualization in industrial environments. This unit is designed for reliable operation, providing robust computing performance and flexible connectivity for various production processes. It is equipped with an Intel Celeron N2807 dual-core processor, 2 GB RAM, and a 240 GB SSD, supporting efficient multitasking and stability for industrial applications. The system runs on Windows Embedded Standard 7E SP1 (64-bit, English), ensuring compatibility with a wide range of automation and monitoring tasks. Connectivity options include two 10/100/1000 Mbps Ethernet RJ45 ports, one DisplayPort graphic output, one USB 3.0 port, three USB 2.0 ports, one serial (COM 1) port, and a CFast slot. The 6AV7882-0CA10-2CA0 operates on a 24 V DC power supply and is delivered without SIMATIC software or embedded Windows software pre-installed. Engineered for durability and ease of integration, this Nanopanel PC is a practical choice for modernizing or maintaining production lines.

Features

• 12-inch Touch TFT Display
• Intel Celeron N2807 (2C/2T) Processor
• 2 GB RAM
• 240 GB SSD Storage
• Windows Embedded Standard 7E SP1 (English, 64-bit) Operating System
• 2x 10/100/1000 Mbps Ethernet RJ45 Ports
• 1x DisplayPort Graphic Output
• 1x USB 3.0 Port and 3x USB 2.0 Ports
• 1x Serial (COM 1) Port
• 1x CFast Slot
• 24 V DC Power Supply

Applications

• Industrial automation and control systems
• Human-Machine Interface (HMI) for production lines
• Data acquisition and visualization in manufacturing
• Machine control and monitoring
• Integration into existing industrial networks
• Modernization and maintenance of industrial infrastructure

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Before beginning any installation or wiring, ensure that all power to the system and associated equipment is completely de-energized and locked out according to safety procedures.
2. Mounting: Securely mount the Nanopanel PC in a suitable industrial enclosure or panel cutout. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the 24 V DC power supply to the designated power input terminals. Observe correct polarity to prevent damage to the unit.
4. Ethernet Connection: Connect industrial Ethernet cables to the RJ45 ports for network communication. Use shielded cables in electrically noisy environments.
5. Peripheral Connections: Connect USB devices, serial devices, and display monitors to their respective ports as required for the application.
6. Grounding: Ensure the Nanopanel PC and its enclosure are properly grounded to minimize electrical noise and enhance safety.
7. Cable Management: Route all cables neatly and securely, separating power and signal cables to prevent interference.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings for industrial panel PCs to ensure reliable long-term operation.
