Description

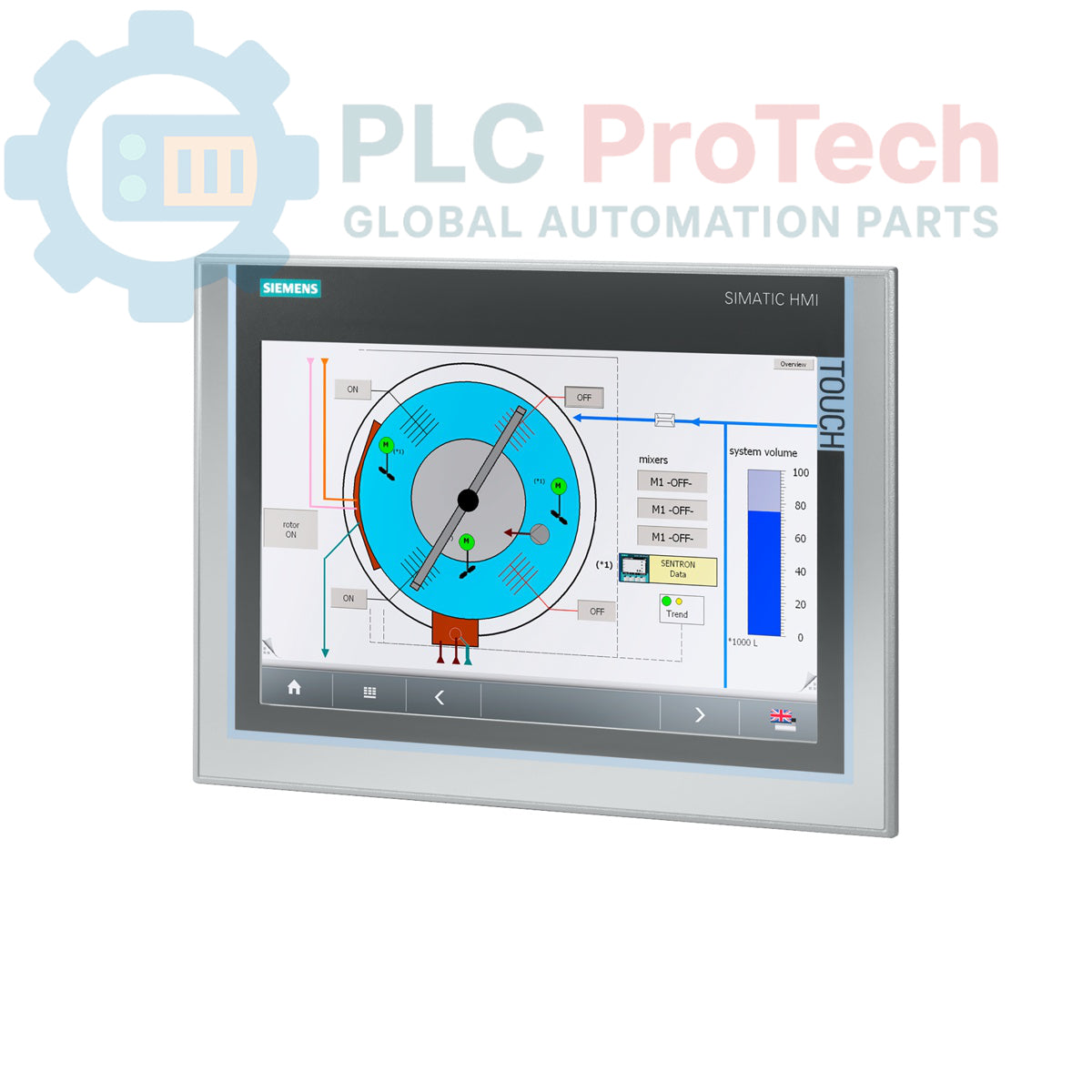

The Siemens 6AV7882-0CA30-7EA0 is a SIMATIC IPC277E Nanopanel PC, an embedded industrial computer designed for demanding visualization and control tasks. This unit features a 12-inch touch TFT display, an Intel Celeron N2807 processor, and is equipped with 8 GB of RAM and a 256 GB ECO SSD for responsive performance. It offers extensive connectivity with dual Gigabit Ethernet ports, multiple USB interfaces, and a DisplayPort for external video output. The system operates on a 24 V DC power supply and is delivered without pre-installed SIMATIC software, providing a flexible platform for custom applications. This model is noted by the manufacturer as being in a product phase-out lifecycle stage.

Features

• 12-inch TFT widescreen display with touch functionality
• Intel Celeron N2807 processor (2 cores, 2 threads)
• 8 GB of installed RAM
• 256 GB ECO Solid State Drive (SSD)
• Dual 10/100/1000 Mbps Ethernet ports for network connectivity
• One USB 3.0 and three USB 2.0 ports for peripherals
• One DisplayPort for connecting an external monitor
• Integrated CFast slot for storage expansion
• Powered by a standard 24 V DC industrial supply
• Pre-installed 64-bit Windows operating system (MUI: EN,DE,FR,IT,ES)

Applications

• Human-Machine Interface (HMI) for machinery control
• SCADA client stations in process automation
• Data acquisition and logging systems
• Machine-level visualization and operation
• Industrial gateways and communication nodes

Technical Specifications

Installation Guidelines

1. 1 De-energize the main power supply to the installation panel or cabinet. Verify the absence of voltage using a calibrated multimeter before proceeding.
2. 2 Prepare the panel cutout according to the device's mounting dimensions. Ensure the mounting surface is clean, flat, and provides adequate support.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect the functional earth (FE) or protective earth (PE) terminal to the cabinet's main grounding point using a low-impedance conductor. This is critical for noise immunity and safety.
5. 5 Connect the 24 V DC power supply to the designated power terminals. Verify correct polarity (+/-) before connection. Use appropriately sized wiring for the load.
6. 6 Connect all required communication (Ethernet, Serial) and peripheral (USB, DisplayPort) cables. Ensure proper cable routing and strain relief.
7. 7 After all connections are secure and verified, remove the lockout/tagout device and re-energize the cabinet. Power on the Panel PC and verify correct system boot and operation.
