Siemens SIMATIC IPC277D Nanopanel PC

Description

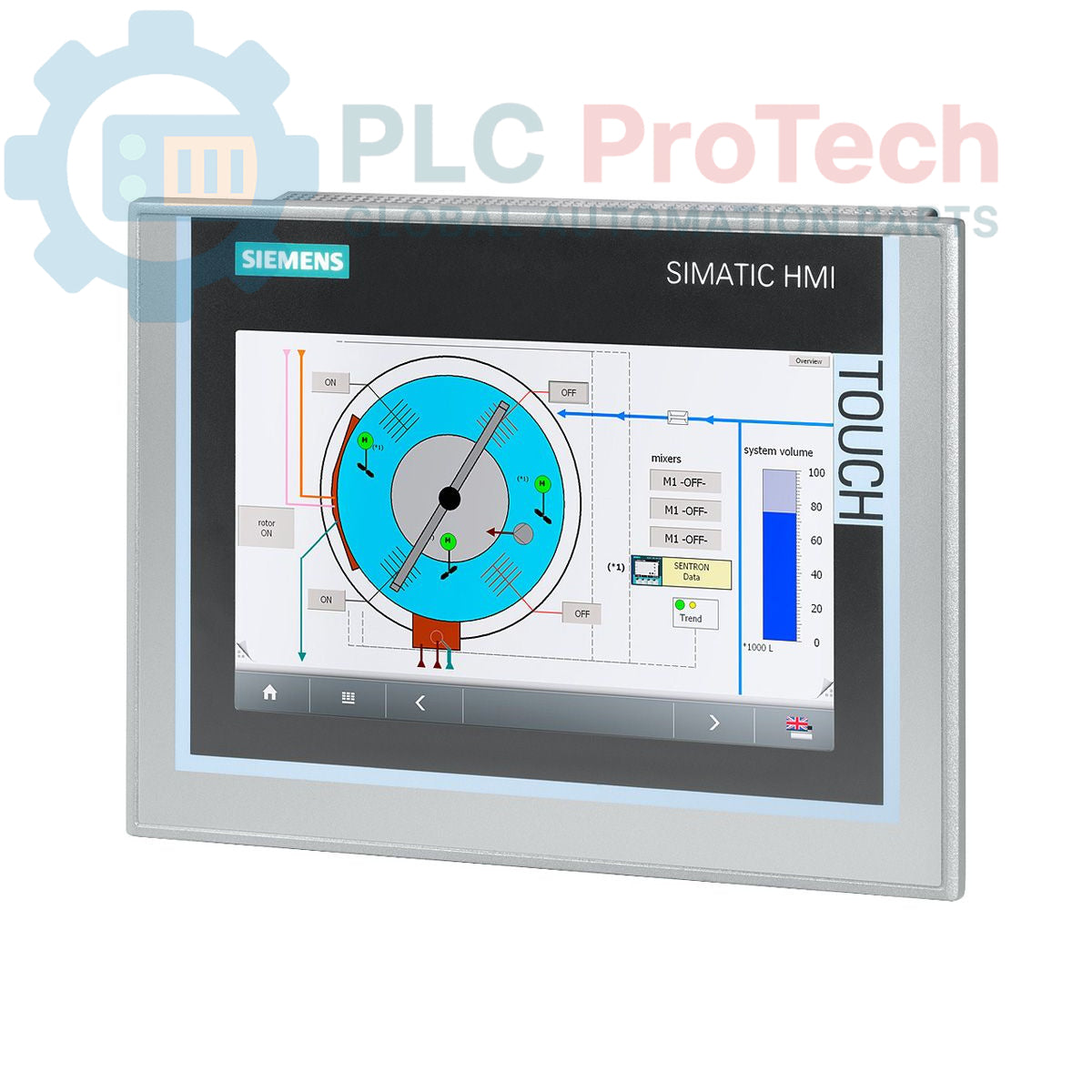

This is a Siemens 6AV7881-1AF00-4DN0 SIMATIC IPC277D Nanopanel PC, an embedded industrial computer designed for HMI and control tasks. It features a 7-inch Touch TFT display, is powered by an Intel ATOM E660 1.3 GHz processor, and is equipped with 2 GB of RAM. The unit operates on a 24 V DC power supply and includes a 16 GB SIMATIC PC CompactFlash card pre-loaded with Windows Embedded Standard 7 SP1. This model comes with pre-installed licenses for WinAC RTX 2010 and WinCC Advanced RT, supporting logging, recipes, and up to 512 power tags.

Features

• 7-inch Touch TFT display for operator interface.
• Intel ATOM E660 processor operating at 1.3 GHz.
• 2 GB of integrated RAM for application processing.
• Includes a 16 GB SIMATIC PC CompactFlash card for storage.
• Dual 10/100/1000 Mbps Ethernet RJ45 ports for network connectivity.
• Three high-current USB V2.0 ports for peripheral devices.
• Pre-loaded with Windows Embedded Standard 7 SP1, WinAC RTX 2010, and WinCC Advanced RT licenses.

Applications

• Machine-level operator control and monitoring.
• Data acquisition, logging, and recipe management systems.
• Process visualization for small to medium-sized applications.
• Embedded control solutions utilizing WinAC RTX.

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is de-energized and locked out according to safety procedures.
2. 2 Prepare the panel cutout according to the device's mechanical specifications. Verify dimensions and ensure a clean, burr-free mounting surface.
3. 3 Insert the Panel PC into the cutout from the front of the panel. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the device chassis. This is critical for safety and noise immunity.
5. 5 Connect the 24 V DC power supply wiring to the power connector, ensuring correct polarity. Use appropriately sized conductors and overcurrent protection as required.
6. 6 Connect Ethernet, USB, and serial communication cables as needed. Ensure proper cable routing and strain relief to prevent damage to connectors.
7. 7 After verifying all connections are secure, remove the lockout/tagout and re-energize the cabinet. Power on the Panel PC and confirm proper boot-up and operation.
