Description

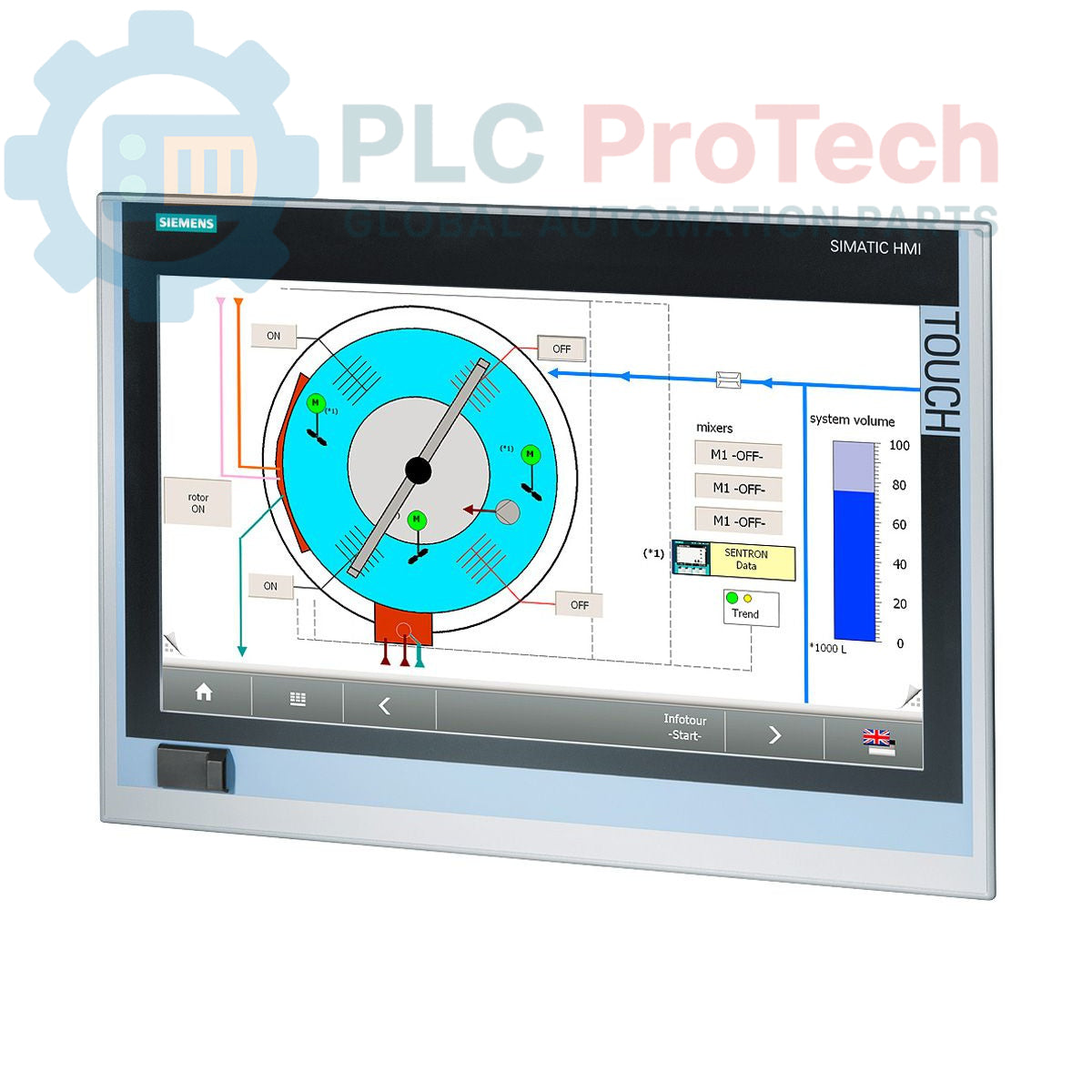

The Siemens 6AV7882-0EA20-2LA0 is a SIMATIC IPC277E Nanopanel PC, designed for industrial visualization and control applications. This unit features a 19-inch Touch TFT display, providing an intuitive human-machine interface. It is equipped with a Celeron N2807 (2C/2T) processor and 4 GB of RAM, ensuring reliable performance for embedded tasks. Connectivity options include two 10/100/1000 Mbps Ethernet RJ45 ports, one DisplayPort for graphics output, one USB 3.0 port, three USB 2.0 ports, and one serial (COM 1) port. A CFast slot is available for storage expansion. The unit operates on a 24 V DC power supply and includes a convenient front USB port. It comes pre-installed with WIN Embedded Standard 7E SP1 (English, 64-bit) on an 8 GB CFAST drive, but is delivered without SIMATIC software or additional embedded Windows software.

Features

• 19-inch Touch TFT Display
• Integrated Celeron N2807 (2C/2T) Processor
• 4 GB RAM
• 8 GB CFAST Storage
• Pre-installed with WIN Embedded Standard 7E SP1 (English, 64-bit)
• Dual 10/100/1000 Mbps Ethernet RJ45 Ports
• Multiple USB Ports (1x USB 3.0, 3x USB 2.0, 1x Front USB)
• DisplayPort Graphic Output
• Serial (COM 1) Port
• CFast Slot for Expansion
• 24 V DC Power Supply

Applications

The Siemens SIMATIC IPC277E Nanopanel PC is suitable for a wide range of industrial applications requiring a compact and robust HMI solution. Typical uses include:

• Machine operation and visualization
• Process control and monitoring
• Data acquisition and logging
• Embedded control systems
• Building automation
• Logistics and material handling systems

Technical Specifications

Connections / Interfaces

The 6AV7882-0EA20-2LA0 Nanopanel PC offers the following interfaces:

• Ethernet: 2x RJ45 ports (10/100/1000 Mbps)
• Display: 1x DisplayPort
• USB: 1x USB 3.0, 3x USB 2.0, 1x Front USB
• Serial: 1x COM 1 port
• Storage: CFast slot
• Power: 24 V DC input

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work.
2. Mounting: Securely mount the Nanopanel PC into a panel cutout or onto a suitable VESA mount (if applicable) according to the system's mechanical specifications. Ensure adequate ventilation space around the unit.
3. Power Connection: Connect the 24 V DC power supply to the designated power input terminals. Observe correct polarity to prevent damage.
4. Grounding: Establish a proper protective earth (PE) connection to the unit's grounding terminal to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication. Use shielded cables in noisy industrial environments.
6. Peripheral Connections: Connect USB devices, serial devices, and external displays (via DisplayPort) as required by the application.
7. Cable Routing: Route all cables to prevent strain, interference, and damage. Separate power cables from signal cables where possible.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for the device.
9. Power Up: After all connections are verified, re-energize the power supply and observe the system startup.
