Description

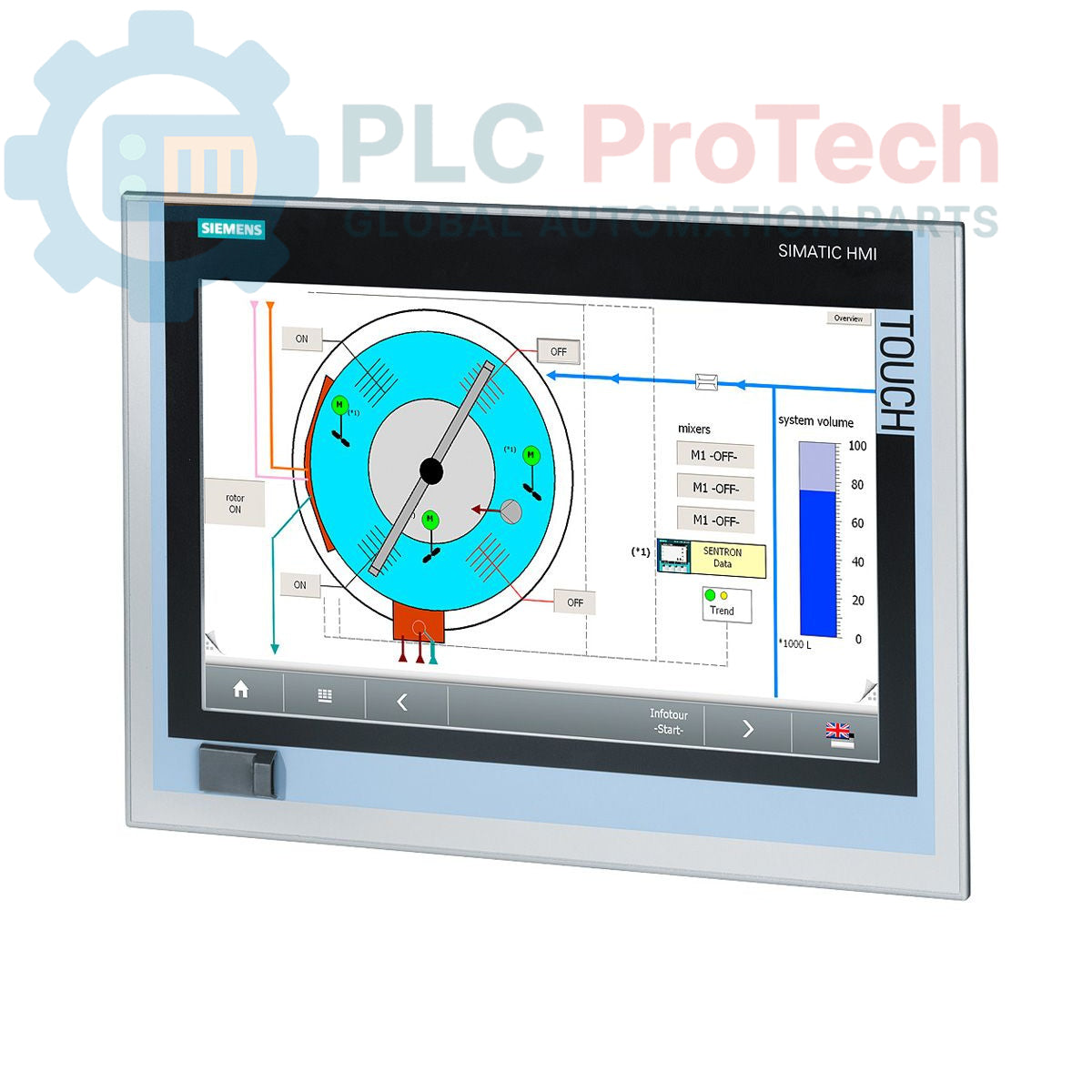

This is a Siemens 6AV7881-4AA00-0AA0 SIMATIC IPC277D Nanopanel PC, an industrial-grade human-machine interface (HMI) designed for demanding automation environments. It features a 15-inch TFT touchscreen display, an Intel Atom E640 (1.0 GHz) processor, and 1 GB of RAM. This specific configuration is supplied without a pre-installed operating system or SIMATIC software, offering flexibility for custom application deployment. The unit is powered by a standard 24 V DC supply and provides extensive connectivity through dual Gigabit Ethernet ports and multiple USB interfaces.

Features

• 15-inch TFT resistive touchscreen display
• Intel Atom E640 processor operating at 1.0 GHz
• 1 GB of integrated RAM
• Dual 10/100/1000 Mbps RJ45 Ethernet ports for network redundancy or separation
• One front-accessible USB port for convenient data transfer
• Three rear high-current USB 2.0 ports
• One serial COM1 interface
• Integrated CompactFlash (CF) card slot for storage
• Operates on a 24 V DC power supply

Applications

• Machine-level HMI and process visualization
• Data acquisition and logging systems
• Control and monitoring in manufacturing and process industries
• Building automation and facility management interfaces
• Embedded control applications requiring a graphical user interface

Technical Specifications

Installation Guidelines

1. 1
   Panel Cutout: Prepare the enclosure by creating a panel cutout according to the dimensions specified in the device's mechanical drawings. Ensure all edges are smooth and free of burrs to guarantee a proper seal.
2. 2
   Mounting: Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure consistent gasket compression and maintain the IP rating.
3. 3
   Grounding: Connect the functional earth (FE) terminal on the device chassis to the enclosure's main protective earth ground using a low-impedance, short-gauge wire. A reliable ground connection is essential for noise immunity and safety.
4. 4
   Power Connection: Connect a stable, filtered 24 V DC power source to the designated power supply terminals. Verify correct polarity (+/-) before energizing the unit. Use appropriately sized wiring for the current draw.
5. 5
   Interface Cabling: Connect Ethernet, USB, and serial cables as required. Route data cables separately from high-voltage power lines to prevent electromagnetic interference. Ensure all connectors are fully seated and secured.
