Description

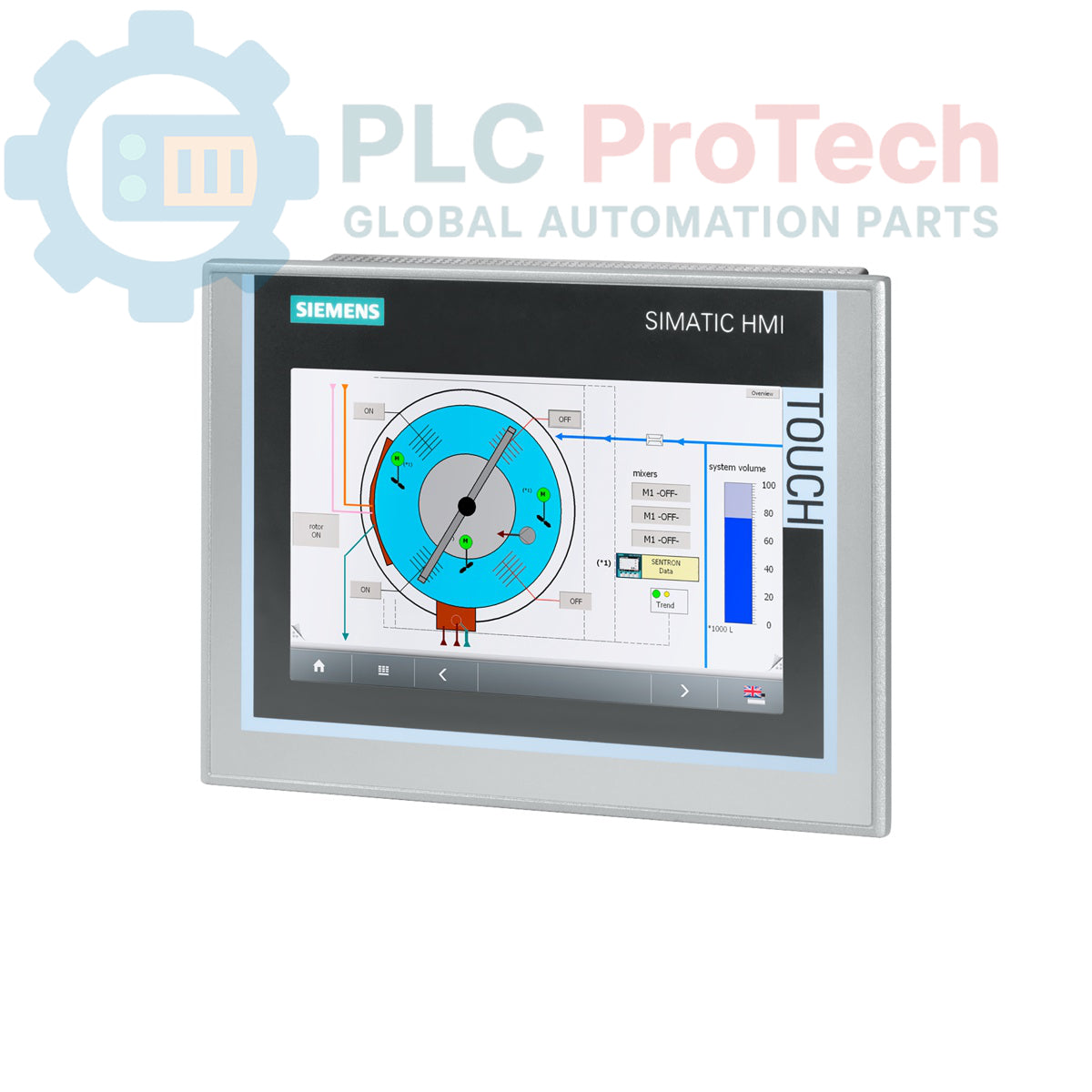

The Siemens 6AV7882-0AA10-0EA0 is a SIMATIC IPC277E Nanopanel PC designed for industrial control and visualization tasks. This compact panel PC features a 7-inch Touch TFT display and is equipped with a Celeron N2807 (2C/2T) processor, 2 GB RAM, and a 256 GB ECO SSD for reliable operation. It offers versatile connectivity with two 10/100/1000 Mbps Ethernet RJ45 ports, one Display Port for graphics, multiple USB ports (one USB 3.0 and two USB 2.0), and one serial (COM 1) interface. Additionally, it includes a CFast slot for expansion and operates on a 24 V DC power supply. The unit is provided without a pre-installed operating system or SIMATIC software, allowing for flexible integration into existing automation architectures.

Features

• 7-inch Touch TFT Display
• Celeron N2807 (2C/2T) Processor
• 2 GB RAM
• 256 GB ECO SSD
• 2x 10/100/1000 Mbps Ethernet RJ45 Ports
• 1x Display Port Graphic Interface
• 1x USB 3.0 Port
• 2x USB 2.0 Ports
• 1x Serial (COM 1) Port
• CFast Slot for Expansion
• 24 V DC Power Supply
• Provided without Operating System
• Provided without SIMATIC Software

Applications

The Siemens SIMATIC IPC277E Nanopanel PC is suitable for a range of industrial applications requiring compact and robust human-machine interface (HMI) solutions, including:

• Machine operation and control panels
• Process visualization and monitoring
• Data acquisition and logging in automation systems
• Embedded control applications
• Factory automation and manufacturing environments

Technical Specifications

Connections / Interfaces

The 6AV7882-0AA10-0EA0 Nanopanel PC provides the following interfaces:

• 2x Ethernet RJ45 ports (10/100/1000 Mbps)
• 1x Display Port
• 1x USB 3.0 port
• 2x USB 2.0 ports
• 1x Serial (COM 1) port
• CFast slot
• 24 V DC power input terminals

Installation Guidelines

Proper installation ensures reliable operation and longevity of the Nanopanel PC.

1. De-energize System: Before beginning any installation or wiring, ensure that all power to the system and the Nanopanel PC is disconnected and locked out.
2. Mounting: Securely mount the Nanopanel PC in its intended location, typically a control cabinet or panel cutout. Ensure adequate ventilation around the unit to prevent overheating.
3. Power Connection: Connect the 24 V DC power supply to the designated power input terminals. Observe correct polarity. Use appropriately sized and shielded cables.
4. Grounding: Establish a robust protective earth (PE) connection to the Nanopanel PC's grounding terminal. Proper grounding is crucial for electrical safety and electromagnetic compatibility.
5. Ethernet Connections: Connect Ethernet cables to the RJ45 ports for network communication. Use shielded cables in industrial environments to minimize interference.
6. Peripheral Connections: Connect USB devices, serial devices, and display monitors to their respective ports as required by the application.
7. Cable Routing: Route all cables neatly and ensure they are secured to prevent strain or accidental disconnection. Separate power cables from signal cables to reduce interference.
8. Verification: After all connections are made, re-verify wiring correctness before re-energizing the system.
