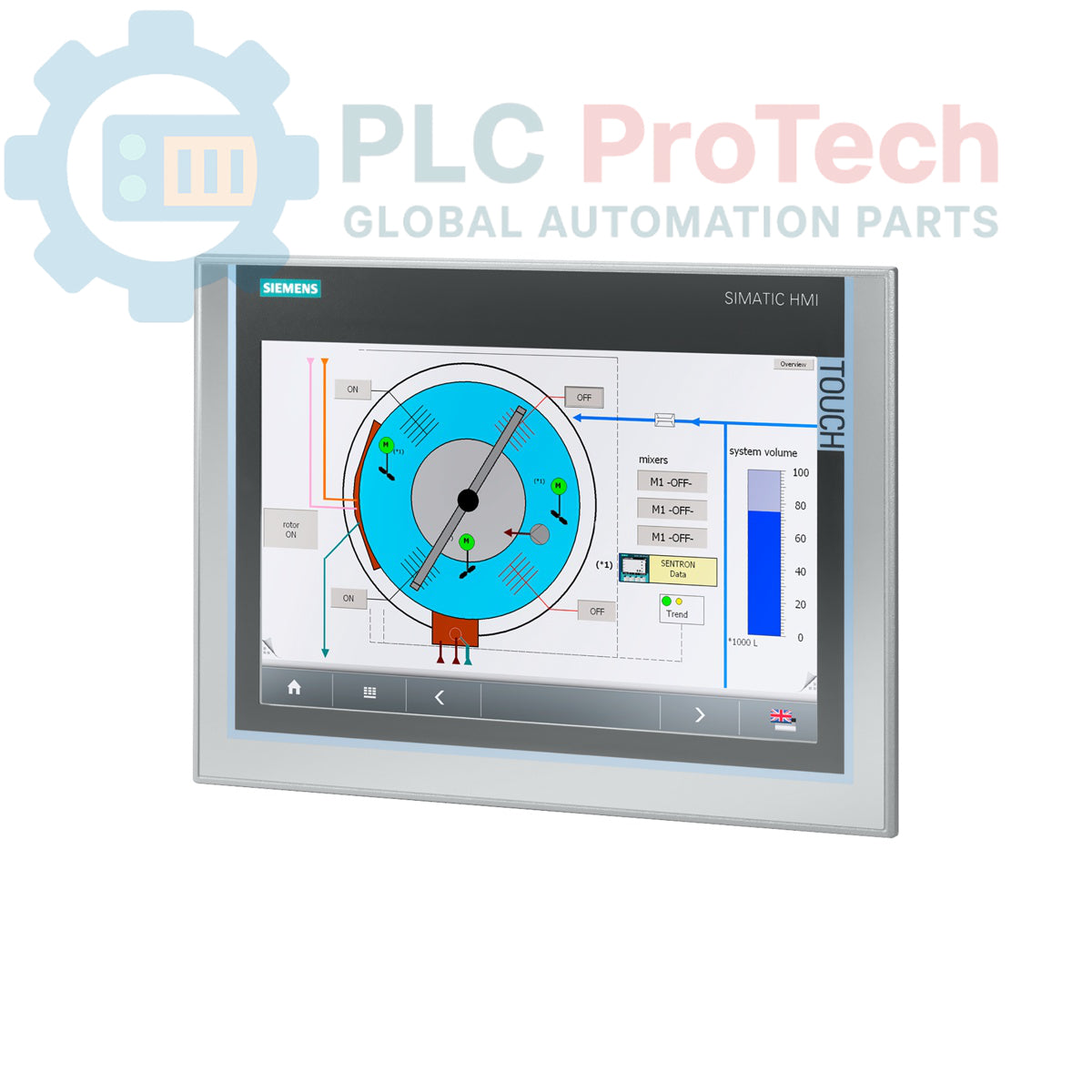

Siemens 6AV7882-0CD20-8CA0 SIMATIC IPC277E Nanopanel PC

SKU 6AV7882-0CD20-8CA0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7882-0CD20-8CA0
Origin Germany
Product Type: Industrial Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 2.75 kg
Dimensions: 40.0 cm x 30.0 cm x 30.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6AV7882-0CD20-8CA0 is a SIMATIC IPC277E Nanopanel PC designed for embedded machine control and visualization tasks. This unit is equipped with a 12-inch TFT touch display, an Intel Celeron N2930 processor, and a 240 GB SSD for reliable, fanless operation. It provides extensive connectivity through dual Gigabit Ethernet ports, multiple USB interfaces, and a DisplayPort output, all powered by a standard 24 V DC supply. The system comes pre-installed with Windows 10 Enterprise 2019 LTSC, offering a stable platform for industrial applications.

Features

12-inch TFT resistive touch screen display
Intel Celeron N2930 processor (4 cores, 4 threads)
4 GB of installed RAM
240 GB Solid-State Drive (SSD) for storage
Dual 10/100/1000 Mbps Ethernet ports for network redundancy or separation
Integrated Trusted Platform Module (TPM) for enhanced security
Pre-installed Windows 10 Enterprise 2019 LTSC (64-bit)
CFast slot for removable storage media

Applications

Human-Machine Interface (HMI) for machine control
Data acquisition and logging at the machine level
Process visualization and monitoring in manufacturing
Embedded control systems in harsh industrial environments
Gateway applications for IIoT and data communication

Technical Specifications

Specification	Value
Manufacturer	Siemens
Part Number	6AV7882-0CD20-8CA0
Series	SIMATIC IPC277E
Product Type	Nanopanel PC
Processor	Intel Celeron N2930 (4 Cores / 4 Threads)
Memory (RAM)	4 GB
Storage	240 GB Solid-State Drive (SSD)
Display	12-inch Touch TFT
Power Supply Input	24 V DC
Operating System	Windows 10 Enterprise 2019 LTSC, 64-bit, MUI (EN,DE,FR,IT,ES)
Bundled Software	Without SIMATIC Software
Product Lifecycle Status	Phase-Out
Shipping Weight	2.75 kg
Package Dimensions (Calculated)	40.0 cm x 30.0 cm x 30.0 cm
Country of Origin	Germany (Estimated)
Harmonized Tariff Code	85371098
ECCN	5A992

Connections and Interfaces

Interface	Quantity & Type
Ethernet	2x RJ45 (10/100/1000 Mbps)
USB	1x USB 3.0, 3x USB 2.0
Video Output	1x DisplayPort
Serial	1x COM 1
Expansion Slot	1x CFast Slot

Installation Guidelines

CRITICAL WARNING: Disconnect all power sources before installation or maintenance. This device contains components sensitive to electrostatic discharge (ESD). Use proper ESD protection, including wrist straps and grounded mats, when handling. Failure to comply can result in equipment damage.

1 Ensure the control cabinet or panel is de-energized and locked out according to safety procedures.
2 Verify the panel cutout dimensions match the IPC277E's mounting requirements. Ensure the mounting surface is clean, flat, and free of debris.
3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4 Connect a stable, correctly rated 24 V DC power supply to the power input terminal. Verify correct polarity before energizing.
5 Connect the chassis to a low-impedance functional earth (FE) or protective earth (PE) ground point within the cabinet to minimize electrical noise.
6 Connect all required network, USB, display, and serial cables. Ensure proper cable strain relief and routing away from high-voltage lines.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What operating system is installed on the 6AV7882-0CD20-8CA0?

This unit comes pre-installed with Windows 10 Enterprise 2019 LTSC (64-bit) with multi-language support (EN, DE, FR, IT, ES).

What are the main communication ports available?

It includes two Gigabit Ethernet RJ45 ports, one USB 3.0 port, three USB 2.0 ports, and one serial COM port.

Is this model a touch screen?

Yes, it is equipped with a 12-inch TFT resistive touch screen display.

What is the required input power for this Panel PC?

The device requires a 24 V DC power supply for operation.

Does this Panel PC include any SIMATIC HMI or PLC software?

No, this specific part number is supplied without any pre-installed SIMATIC software.
