Description

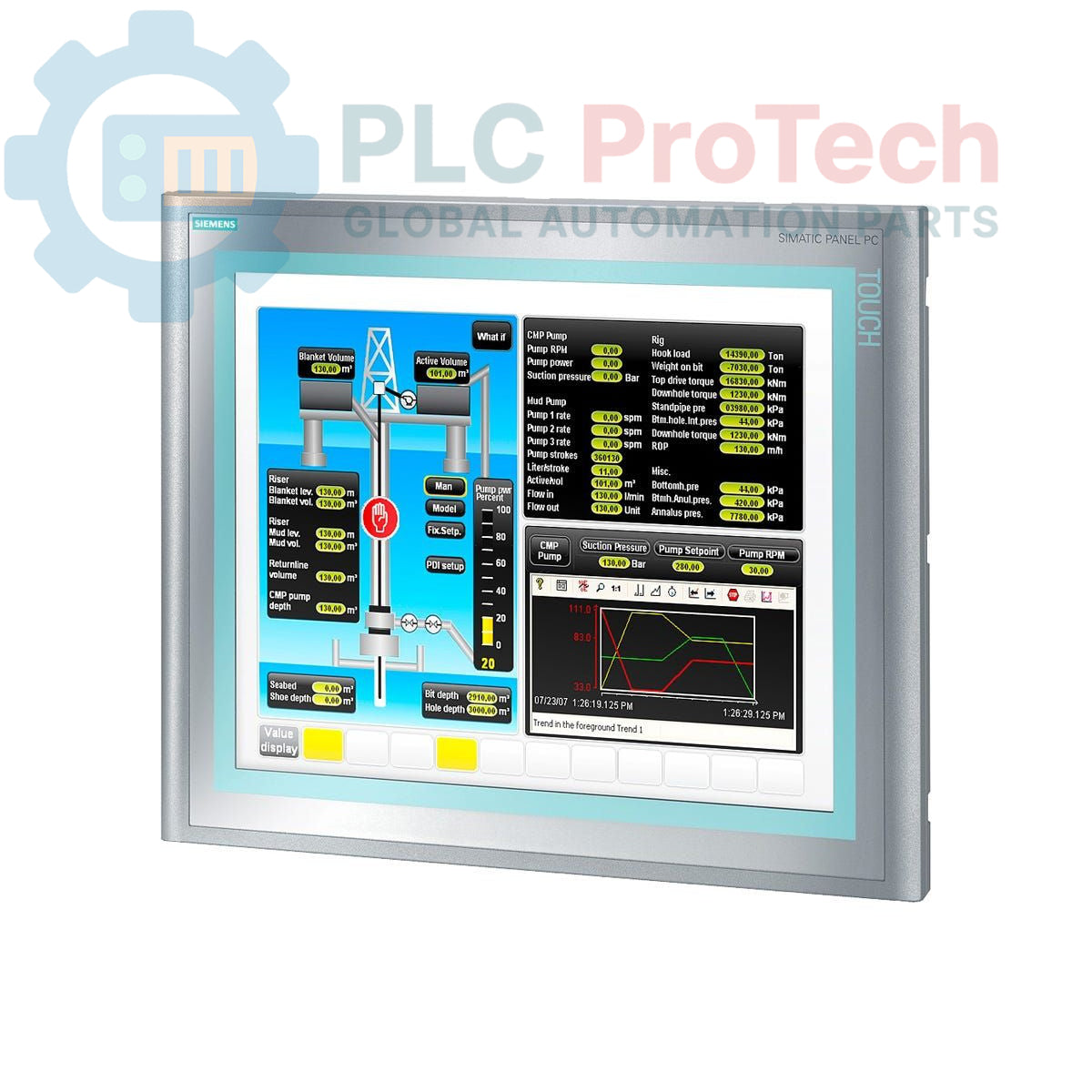

The Siemens 6AV7883-7AA10-6BA0 is a SIMATIC HMI IPC 477C Pro optional bundle, designed as an industrial panel PC for visualization and control tasks. This unit features a 19-inch Touch Display and is engineered for robust operation with IP65 protection, ensuring full dust ingress protection and resistance against low-pressure water jets. It is equipped with a Celeron M 1.2 GHz processor, 1 GB of DDR3 RAM, and a 50 GB SATA solid-state drive (SSD) for high endurance. Connectivity includes PROFINET (IE) with two 1 Gbit interfaces and four USB ports located at the back. The system comes with Windows Embedded Standard 2009 pre-installed, making it suitable for a wide range of industrial HMI applications without pre-loaded SIMATIC software.

Features

• 19-inch Touch Display for intuitive operation
• Fully protected with IP65 rating for harsh industrial environments
• Celeron M 1.2 GHz processor for reliable performance
• 1 GB DDR3 RAM
• 50 GB SATA Solid-State Drive (SSD) with high endurance
• PROFINET (IE) interface with 2x 1 Gbit ports
• Four rear-mounted USB ports
• Pre-installed Windows Embedded Standard 2009 operating system

Applications

The Siemens 6AV7883-7AA10-6BA0 SIMATIC HMI IPC 477C Pro is suitable for various industrial applications requiring a robust human-machine interface and PC functionality, including:

• Operator control and monitoring in manufacturing plants
• Process visualization in food and beverage, chemical, and pharmaceutical industries
• Data acquisition and processing in harsh environments
• Machine control and diagnostics
• Building automation and infrastructure management

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work. Follow all local electrical codes and safety procedures.
2. Mounting: The SIMATIC HMI IPC 477C Pro is designed for panel mounting. Ensure the cutout dimensions in the control cabinet door or panel match the device specifications for a secure and sealed fit.
3. Environmental Protection: The IP65 rating ensures protection when properly installed. Verify that the sealing gasket is correctly seated around the display and that all mounting screws are tightened to the recommended torque to maintain the environmental seal.
4. Cable Routing: Route all cables (power, PROFINET, USB) to minimize strain and interference. Use appropriate cable glands or conduits to maintain the cabinet's ingress protection rating.
5. Power Connection: Connect the industrial PC to a stable power supply according to the specified voltage and current requirements. Ensure proper grounding to prevent electrical noise and ensure safety.
6. PROFINET and USB Connections: Connect PROFINET cables to the integrated Ethernet ports. Use industrial-grade USB cables for peripheral connections to the four rear USB ports.
7. Cooling: Ensure adequate ventilation around the rear of the unit within the control cabinet to facilitate proper heat dissipation, even though it is a fanless design.
8. Initial Power-Up: After installation, power up the unit and verify proper operation of the touch display, operating system, and network connectivity.

Compliance and Certifications

The Siemens 6AV7883-7AA10-6BA0 SIMATIC HMI IPC 477C Pro is designed to meet industrial standards, including:

• IP65 Protection: Provides full protection against dust ingress and protection against low-pressure water jets from any direction.
