Description

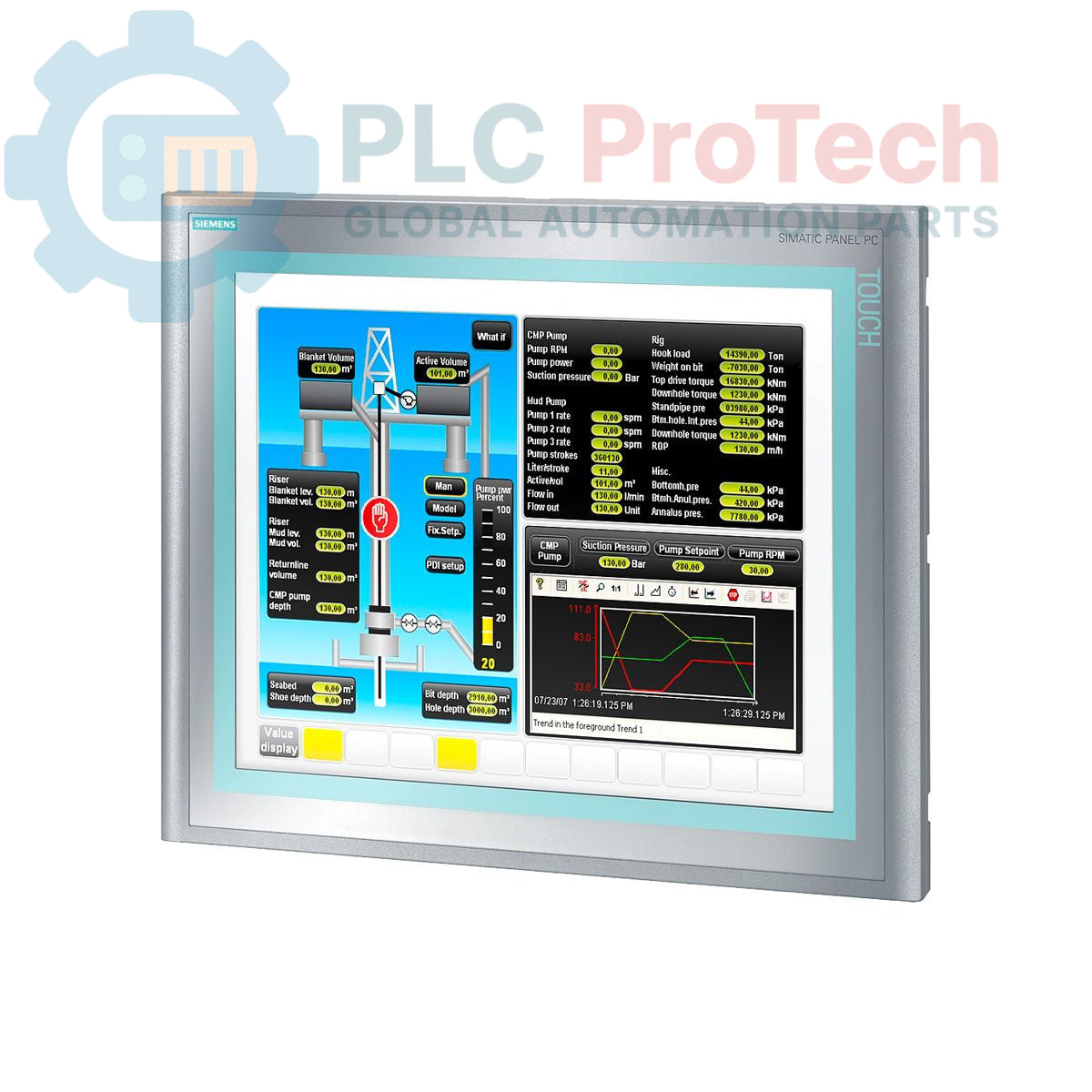

The Siemens 6AV7883-7AA13-3EA0 is a SIMATIC IPC 477C pro Industrial Panel PC, offered as an optional bundle with WinCC flexible 2008/WinAC. This unit features a 19" Touch Display and is designed for robust industrial environments with IP65 protection. It integrates a Celeron M 1.2 GHz processor, 1 GB DDR3 RAM, and includes a 4 GB CF card in its second CF slot. Connectivity is provided via PROFINET (IE) with two 1 Gbit interfaces and four rear USB ports. The system comes with Windows Embedded Standard 7 pre-installed, but without additional SIMATIC software.

Features

• 19" Touch Display
• IP65 Fully Protected Enclosure
• Celeron M 1.2 GHz Processor
• 1 GB DDR3 RAM
• PROFINET (IE) with 2x 1 Gbit Interfaces
• 4 Rear USB Ports
• 2nd CF Slot with 4 GB CF Card
• Windows Embedded Standard 7 Pre-installed

Applications

• Human-Machine Interface (HMI) applications in harsh industrial environments.
• Data visualization and control in manufacturing, process automation, and machine operation.
• Industrial PC tasks requiring robust, fanless, and protected hardware.
• Integration into PROFINET-based automation systems.

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work.
2. Mounting: Mount the Panel PC securely in a suitable enclosure or panel cutout, ensuring proper ventilation clearances if applicable, although the unit is IP65 protected.
3. Grounding: Connect the Panel PC to the protective earth (PE) ground according to local electrical codes and Siemens guidelines to ensure operational safety and EMC compliance.
4. Power Connection: Connect the appropriate DC power supply to the designated power input terminals. Verify correct polarity and voltage before energizing.
5. PROFINET Connection: Connect PROFINET (Industrial Ethernet) cables to the two 1 Gbit interfaces. Use shielded cables for industrial environments to minimize interference.
6. USB Connections: Connect peripheral devices to the four USB ports located at the rear of the unit as required.
7. Environmental Considerations: The IP65 rating ensures protection against dust and water jets; however, ensure the operating temperature range is maintained as per system requirements.
8. Initial Power-Up: After all connections are verified, apply power and observe the system boot-up.
