Description

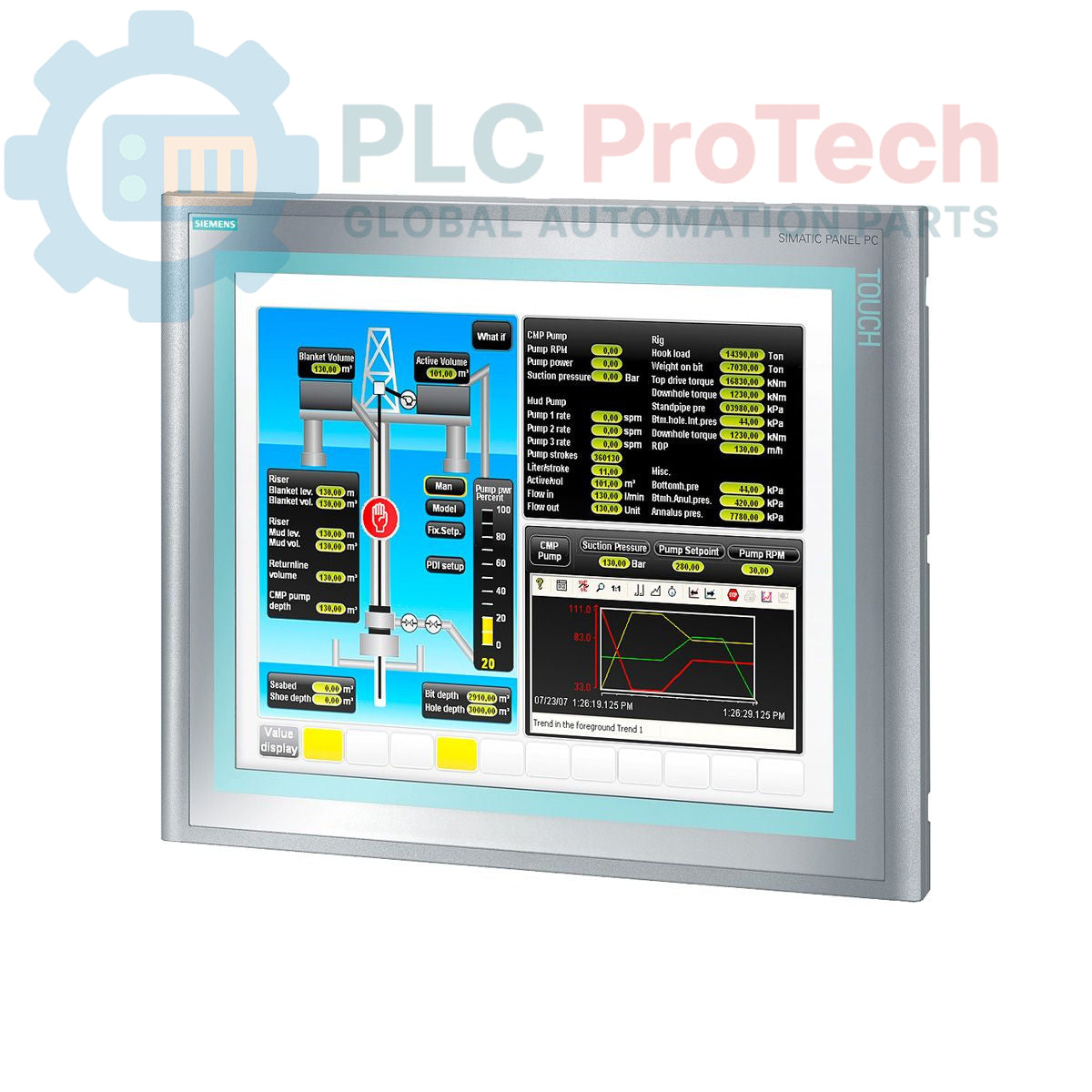

The Siemens 6AV7883-7AG20-6DA0 is a SIMATIC HMI IPC 477C PRO industrial panel PC designed for demanding visualization and control tasks. This unit features a 19-inch touch display and a fully enclosed chassis with an IP65 protection rating, making it suitable for deployment in harsh industrial environments. It is powered by an Intel Core 2 Duo 1.2 GHz processor and equipped with 2 GB of DDR3 RAM. For storage, it includes a 50 GB high-endurance SATA Solid-State Drive (SSD) pre-installed with Windows XP Professional. Connectivity is provided through integrated PROFINET, dual Gigabit Ethernet ports, and four rear-mounted USB interfaces.

Features

• 19-inch resistive touch display for operator interaction.
• Fully enclosed, fanless design with an IP65 protection rating.
• Powered by an Intel Core 2 Duo processor operating at 1.2 GHz.
• Equipped with 2 GB of DDR3 system memory.
• Includes a 50 GB high-endurance SATA Solid-State Drive (SSD).
• Integrated PROFINET (IE) interface and two 1 Gbit Ethernet ports.
• Four rear-mounted USB interfaces for peripheral connection.
• Pre-installed with Windows XP Professional (Multi-Language).

Applications

• Machine-level operator control and monitoring (HMI).
• Process visualization and data logging in manufacturing facilities.
• Data acquisition and gateway applications in industrial networks.
• Control systems for packaging, food and beverage, and automotive industries.

Technical Specifications

Installation Guidelines

1. 1 System De-Energization: Before installation, completely disconnect all power sources to the control panel or mounting location. Verify the absence of voltage using a calibrated multimeter.
2. 2 Mounting Surface Preparation: Ensure the mounting surface (e.g., control cabinet door, swing arm) is clean, flat, and structurally capable of supporting the unit's weight (11.00 kg). Verify that the panel cutout dimensions are correct.
3. 3 Secure the Unit: Insert the Panel PC into the cutout and secure it using the provided mounting clamps. Tighten the clamps evenly and sequentially to ensure a uniform seal and maintain the IP65 rating. Do not overtighten.
4. 4 Protective Earth (PE) Connection: Connect the designated PE terminal on the unit to the main protective earth conductor of the control cabinet. This connection is critical for electrical safety and noise immunity.
5. 5 Cable Connection: Connect the power supply, PROFINET/Ethernet, and USB cables. Ensure all connectors are fully seated. Route cables to prevent strain and maintain proper bend radii. Separate data cables from high-voltage power lines to minimize interference.
6. 6 System Power-Up: After all connections are verified, remove LOTO devices and re-apply power to the system. Observe the unit during its initial boot sequence to confirm proper operation.
