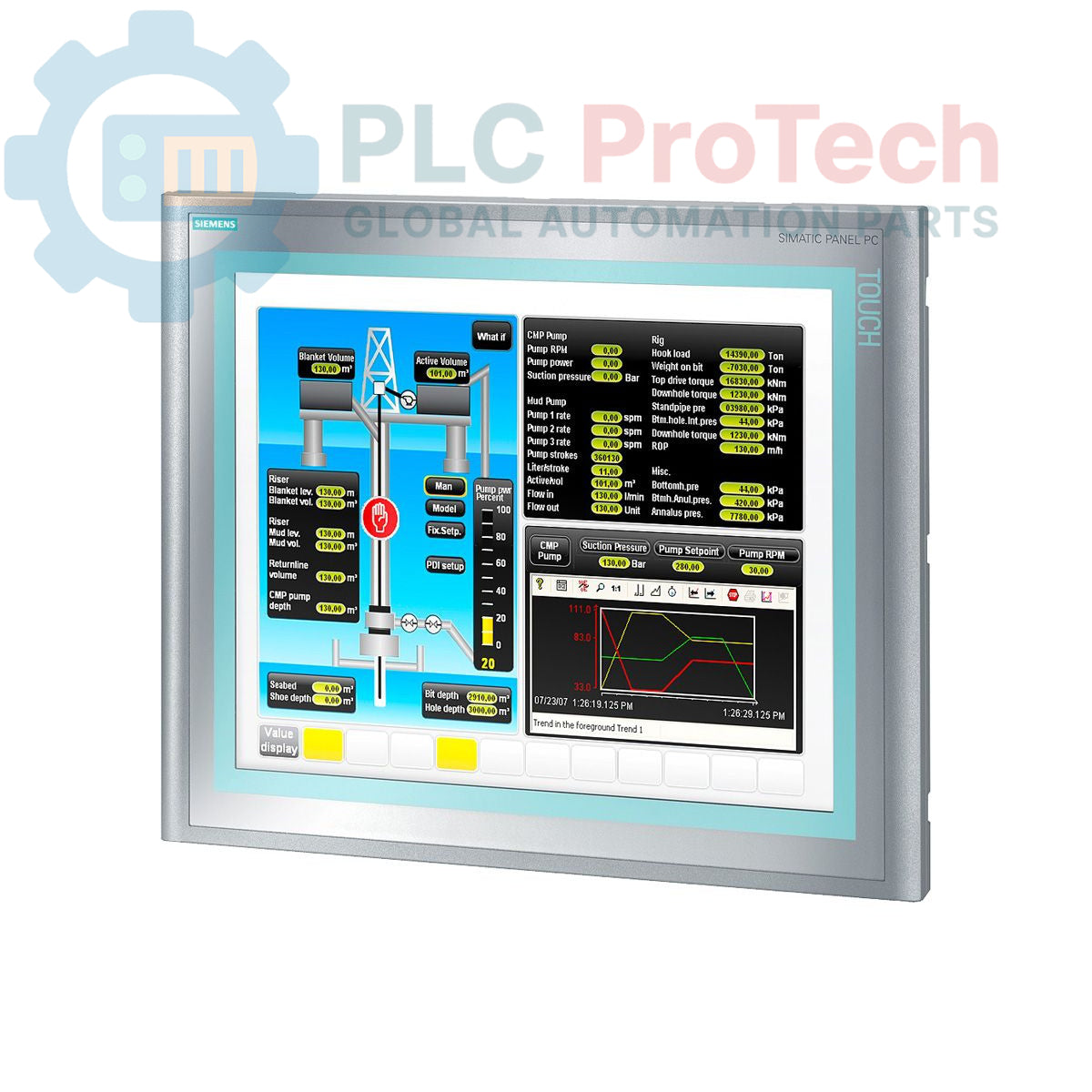

The Siemens 6AV7883-7AG20-6GA0 is a SIMATIC HMI IPC 477C PRO industrial panel PC designed for demanding production environments. This unit comes as an optional bundle with WinCC flexible 2008 and WinAC, providing a versatile solution for process visualization and control. It features a 19-inch touch display, fully protected by an IP65-rated housing, making it suitable for areas exposed to dust or moisture.
Equipped with an Intel Core2Duo 1.2 GHz processor and 2 GB DDR3 RAM, the 6AV7883-7AG20-6GA0 delivers reliable performance for HMI and automation tasks. The system includes a 50 GB solid-state drive (SATA, high endurance) for fast data access and enhanced durability. Connectivity options are comprehensive, featuring four USB ports on the back and two Gigabit Ethernet (PROFINET/IE) interfaces. The standard front panel ensures easy integration into existing systems, while two CF slots (not equipped) offer additional expansion possibilities. Windows 7 Ultimate MUI is pre-installed on the SSD without SIMATIC software.
| Brand | Siemens |
| Manufacturer | Siemens |
| Series | Simatic Panel PC |
| Sub-Series | HMI |
| Product Type | Industrial PC |
| Model | 6AV7883-7AG20-6GA0 |
| Display | 19-inch Touch Display |
| Protection Rating | IP65 |
| Processor | Intel Core2Duo 1.2 GHz |
| RAM | 2 GB DDR3 |
| Storage | 50 GB SATA Solid-State Drive (high endurance) |
| Operating System | Windows 7 Ultimate MUI (pre-installed) |
| Communication Interfaces | 2x Gigabit Ethernet (PROFINET/IE) |
| USB Ports | 4x USB (rear) |
| Expansion Slots | 2x CF slots (not equipped) |
| Software Bundle | WinCC flexible 2008 / WinAC (optional) |
| Product Phase | Phase-Out |
| Package Dimensions (Calculated) | 46.50 x 30.80 x 20.00 cm |
| Shipping Weight | 15.02 kg |
| Commodity Code | 85371098 |
| Export Control Regulations (ECCN) | N |
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6AV7883-7AG20-6GA0
Country of origin:Germany
Product Type: Industrial Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 15020g
Dimensions: 46.50 x 30.80 x 20.00 cm
Shipping port: Xiamen
Warranty: 12 months
The Siemens 6AV7883-7AG20-6GA0 is a SIMATIC HMI IPC 477C PRO industrial panel PC designed for demanding production environments. This unit comes as an optional bundle with WinCC flexible 2008 and WinAC, providing a versatile solution for process visualization and control. It features a 19-inch touch display, fully protected by an IP65-rated housing, making it suitable for areas exposed to dust or moisture.
Equipped with an Intel Core2Duo 1.2 GHz processor and 2 GB DDR3 RAM, the 6AV7883-7AG20-6GA0 delivers reliable performance for HMI and automation tasks. The system includes a 50 GB solid-state drive (SATA, high endurance) for fast data access and enhanced durability. Connectivity options are comprehensive, featuring four USB ports on the back and two Gigabit Ethernet (PROFINET/IE) interfaces. The standard front panel ensures easy integration into existing systems, while two CF slots (not equipped) offer additional expansion possibilities. Windows 7 Ultimate MUI is pre-installed on the SSD without SIMATIC software.
| Brand | Siemens |
| Manufacturer | Siemens |
| Series | Simatic Panel PC |
| Sub-Series | HMI |
| Product Type | Industrial PC |
| Model | 6AV7883-7AG20-6GA0 |
| Display | 19-inch Touch Display |
| Protection Rating | IP65 |
| Processor | Intel Core2Duo 1.2 GHz |
| RAM | 2 GB DDR3 |
| Storage | 50 GB SATA Solid-State Drive (high endurance) |
| Operating System | Windows 7 Ultimate MUI (pre-installed) |
| Communication Interfaces | 2x Gigabit Ethernet (PROFINET/IE) |
| USB Ports | 4x USB (rear) |
| Expansion Slots | 2x CF slots (not equipped) |
| Software Bundle | WinCC flexible 2008 / WinAC (optional) |
| Product Phase | Phase-Out |
| Package Dimensions (Calculated) | 46.50 x 30.80 x 20.00 cm |
| Shipping Weight | 15.02 kg |
| Commodity Code | 85371098 |
| Export Control Regulations (ECCN) | N |
Global Express Shipping
Returns & Warranty
Orders are processed and delivered Monday-Friday (excluding public holidays).
For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
| Country of origin |
Germany
|
