Description

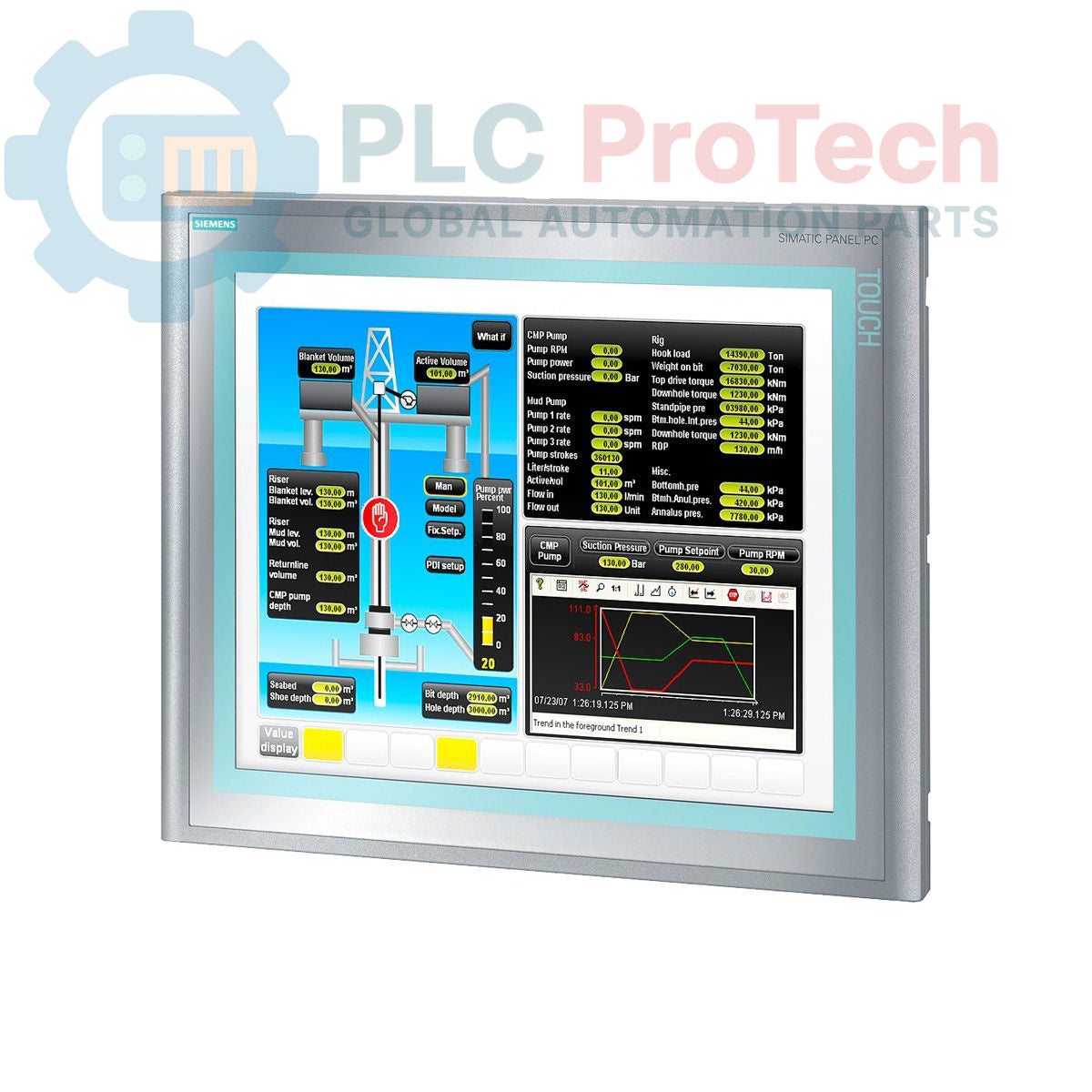

The Siemens 6AV7883-7AH30-4BW0 is a SIMATIC HMI IPC477C PRO, a robust industrial panel PC designed for human-machine interface applications. This unit features a 19-inch touch display with a resolution of 1280x1024 pixels and a standard front panel. It is powered by an Intel Core2Duo 1.2 GHz processor and equipped with 4 GB SDRAM (DDR3). For connectivity, it includes two 1 Gbit/s Ethernet ports, one PROFIBUS DP12 interface, four USB 2.0 ports (500mA), and one RS232 (COM1) serial port. The IPC operates on a DC 24V power supply and comes with an 8 GByte CF card, alongside one free CF-slot for expansion. The system is pre-installed with Windows Embedded Standard 2009 and WinCC RT V7.0 SP2, including a WinCC RT license for 2048 power tags.

Features

• 19-inch Touch Display with 1280x1024 Resolution
• Intel Core2Duo 1.2 GHz Processor
• 4 GB DDR3 SDRAM
• Integrated 8 GByte CF Card with one free CF-slot
• Dual 1 Gbit/s Ethernet Interfaces
• PROFIBUS DP12 Communication Port
• Four USB 2.0 Ports (500mA)
• One RS232 (COM1) Serial Interface
• DC 24V Power Supply
• Pre-installed Windows Embedded Standard 2009
• Pre-installed WinCC RT V7.0 SP2 with 2048PT License

Applications

The Siemens SIMATIC HMI IPC477C PRO is suitable for a wide range of industrial automation applications requiring a reliable and integrated HMI solution. Typical deployments include:

• Machine operation and control panels
• Process visualization and monitoring systems
• Data acquisition and supervisory control
• Factory automation and manufacturing execution systems (MES)
• Building management systems and infrastructure control

Technical Specifications

Installation Guidelines

1. Power De-energization: Before commencing any installation or wiring, ensure that all power to the system and the Panel PC is completely de-energized and secured against accidental re-energization.
2. Mounting: Securely mount the Panel PC in its intended location, ensuring adequate ventilation clearances around the unit to prevent overheating. Follow the manufacturer's specific mounting instructions for panel cutouts or bracket installations.
3. Power Connection: Connect the DC 24V power supply to the designated terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis using the designated grounding terminal. This is crucial for operational safety and electromagnetic compatibility.
5. Communication Wiring: Connect Ethernet, PROFIBUS, USB, and RS232 cables to their respective ports. Ensure proper cable shielding and routing to minimize electromagnetic interference, especially for PROFIBUS and RS232 connections.
6. Peripheral Connections: Connect any necessary external peripherals, such as keyboards, mice, or barcode scanners, to the available USB ports.
7. CF Card Installation: If installing an additional CF card, ensure the system is powered off before inserting the card into the free CF-slot.
8. System Startup: After all connections are verified, re-energize the system. Monitor the Panel PC for proper boot-up and functionality.
