Description

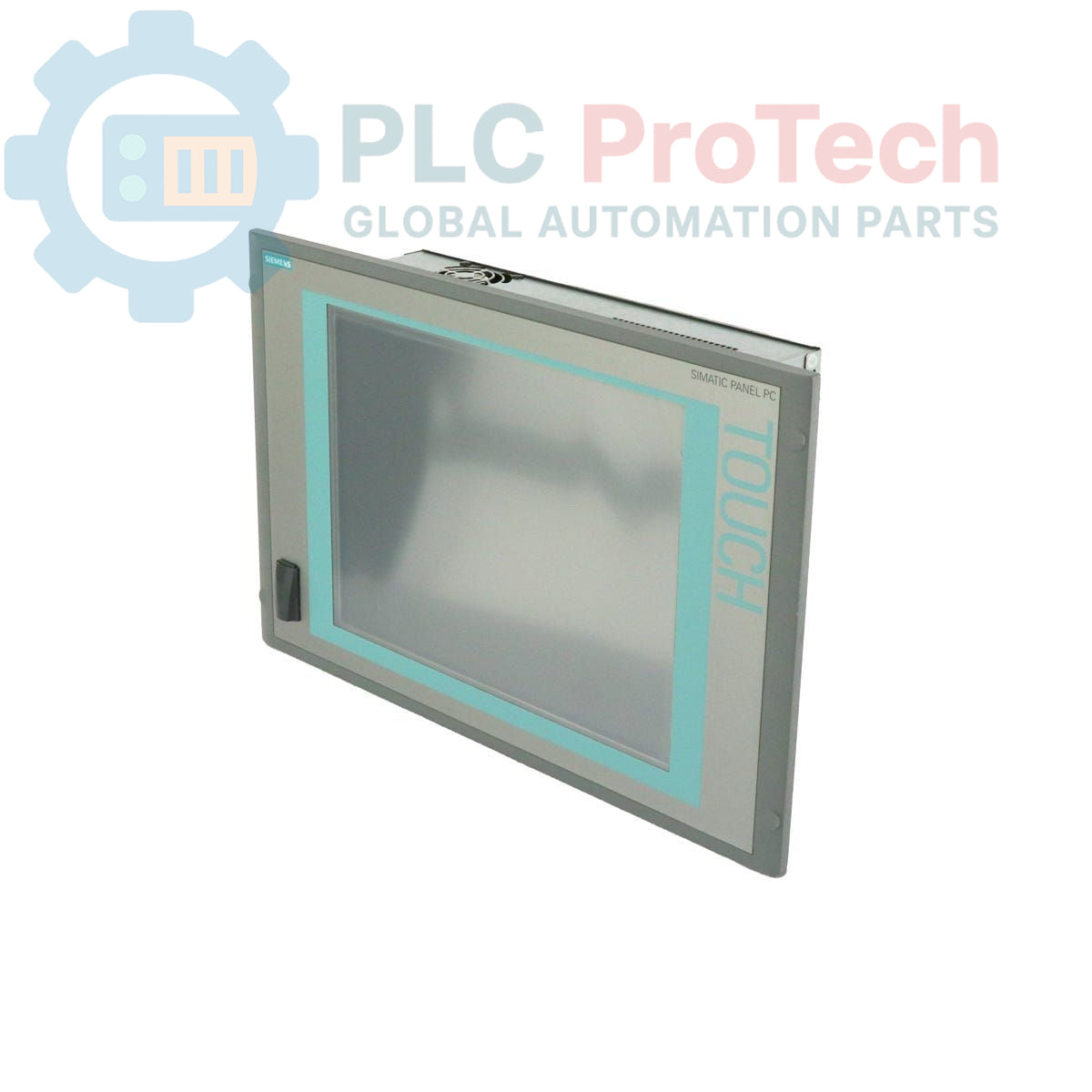

The Siemens 6AV7885-2AK20-1DA8 is a SIMATIC IPC 577C HMI Panel PC designed for industrial applications requiring robust human-machine interface and computing capabilities. This unit features a 15-inch touch display and is powered by a Core 2 Duo 1.86 GHz processor. It includes 2 GB DDR3 RAM and a 320 GB SATA HDD with Windows XP Professional pre-installed. Connectivity options include multiple USB ports, Ethernet (10/100/1000), and PROFINET (IE), making it suitable for integration into various automation networks. The device operates on a 24 V DC power supply and supports a PCI expansion slot.

Features

• Integrated 15-inch Touch Display
• Core 2 Duo 1.86 GHz Processor
• 2 GB DDR3 RAM
• 320 GB SATA Hard Disk Drive (HDD)
• Pre-installed Windows XP Professional operating system
• Multiple USB ports: 4 (rear) + 1 (front)
• Integrated Ethernet (10/100/1000) interface
• PROFINET (IE) communication capability
• PCI expansion slot for additional functionality
• 24 V DC Power Supply

Applications

• Industrial visualization and control systems
• Machine operation and monitoring
• Process control and data acquisition
• Factory automation and manufacturing execution systems (MES)
• Supervisory Control and Data Acquisition (SCADA) systems
• Embedded control applications requiring HMI functionality

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or control cabinet, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the 24 V DC power supply to the designated terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Network Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports and PROFINET cables to the PROFINET (IE) interface as required by the network architecture. Use shielded cables for industrial environments.
6. USB Device Connection: Connect USB peripherals to the available front or rear USB ports.
7. PCI Expansion: If utilizing the PCI slot, carefully install the expansion card according to its manufacturer's instructions, ensuring proper seating and securing.
8. Cable Management: Route all cables neatly and securely, separating power and signal cables to prevent interference. Use cable ties and conduits where appropriate.
9. Initial Power-Up: After all connections are verified, re-energize the power supply and observe the Panel PC's boot sequence.
