Description

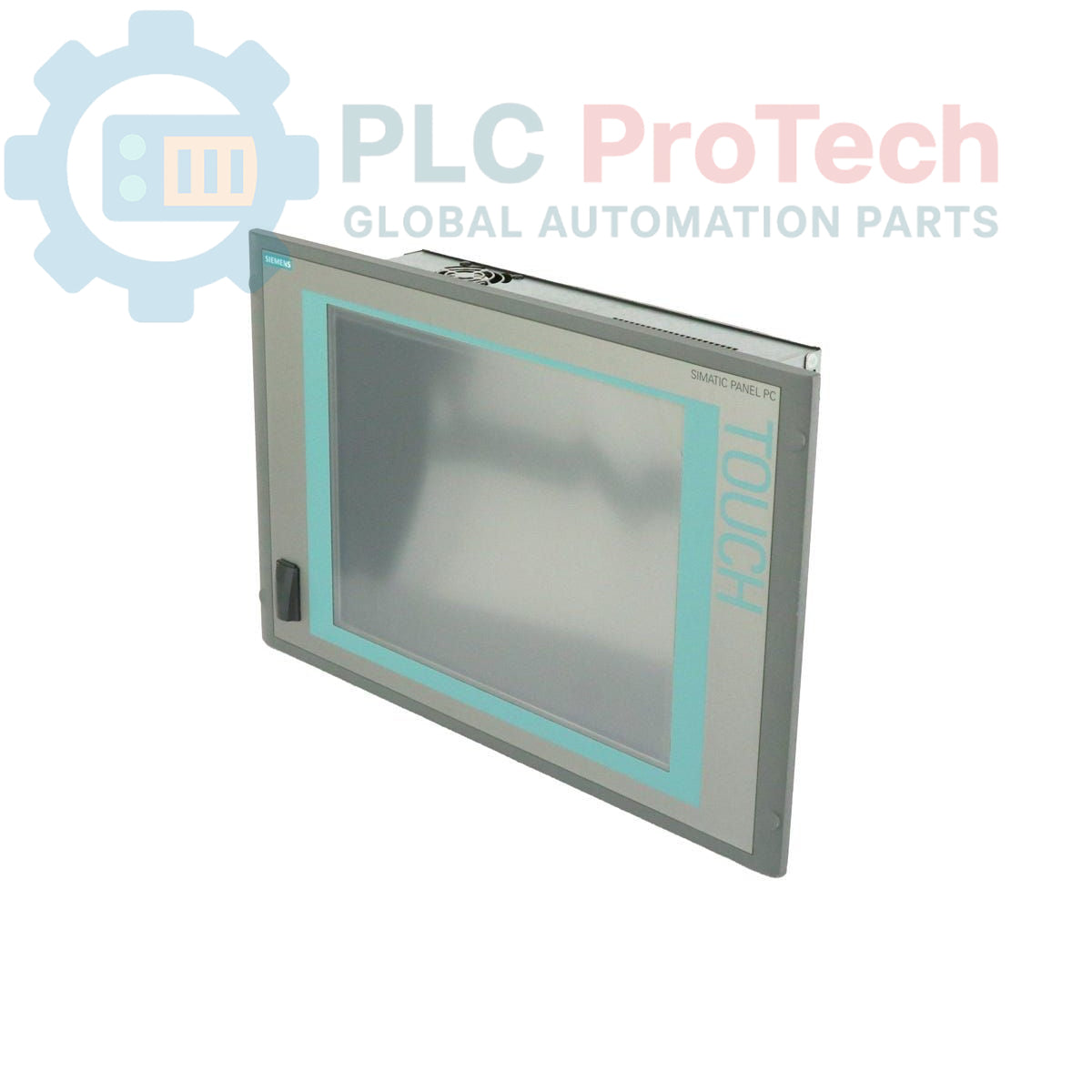

The Siemens 6AV7885-2AK20-6AA8 is a SIMATIC HMI IPC 577C Industrial Panel PC designed for human-machine interface (HMI) applications in industrial environments. This unit features a 15-inch touch display and is equipped with a Core 2 Duo 1.86 GHz processor. It includes 2 GB of DDR3 RAM and a 50 GB solid-state drive (SATA, high endurance) for primary mass storage, with the second mass storage slot unequipped. The Panel PC offers extensive connectivity with a PCI slot, four USB ports on the back and one on the front, and an Ethernet interface supporting 10/100/1000 Mbit/s, including PROFINET (IE) with two 1 Gbit ports. It operates on a 24 V DC power supply and is delivered without an operating system or expansion software, allowing for flexible system integration.

Features

• SIMATIC HMI IPC 577C series
• 15-inch touch display
• Core 2 Duo 1.86 GHz processor
• 2 GB DDR3 RAM
• 50 GB SATA solid-state drive (high endurance)
• PCI expansion slot
• 5 USB ports (4 rear, 1 front)
• Ethernet (10/100/1000 Mbit/s) with 2x 1 Gbit ports
• PROFINET (IE) capability
• 24 V DC power supply

Applications

• Industrial visualization and control systems
• Machine operation and monitoring
• Process control and data acquisition
• Factory automation and manufacturing execution systems (MES)
• Building automation and infrastructure management

Technical Specifications

Installation Guidelines

1. De-energize System: Before commencing installation, ensure all power to the control cabinet or system is completely de-energized and locked out according to safety protocols.
2. Mounting: Securely mount the Panel PC into the designated panel cutout. Ensure proper sealing to maintain the specified enclosure rating.
3. Power Connection: Connect the 24 V DC power supply to the appropriate terminals, observing correct polarity. Verify the power source meets the required voltage and current specifications.
4. Grounding: Establish a reliable protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Interface Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports for network communication. Utilize the USB ports for peripheral devices as needed. For PROFINET (IE) communication, ensure compatible cabling and network configuration.
6. Cable Routing: Route all power and communication cables away from sources of electrical noise and heat. Use appropriate cable glands and strain relief.
7. System Configuration: After physical installation, apply power and proceed with the necessary software installation and configuration, including the operating system (if required) and HMI application.
