Description

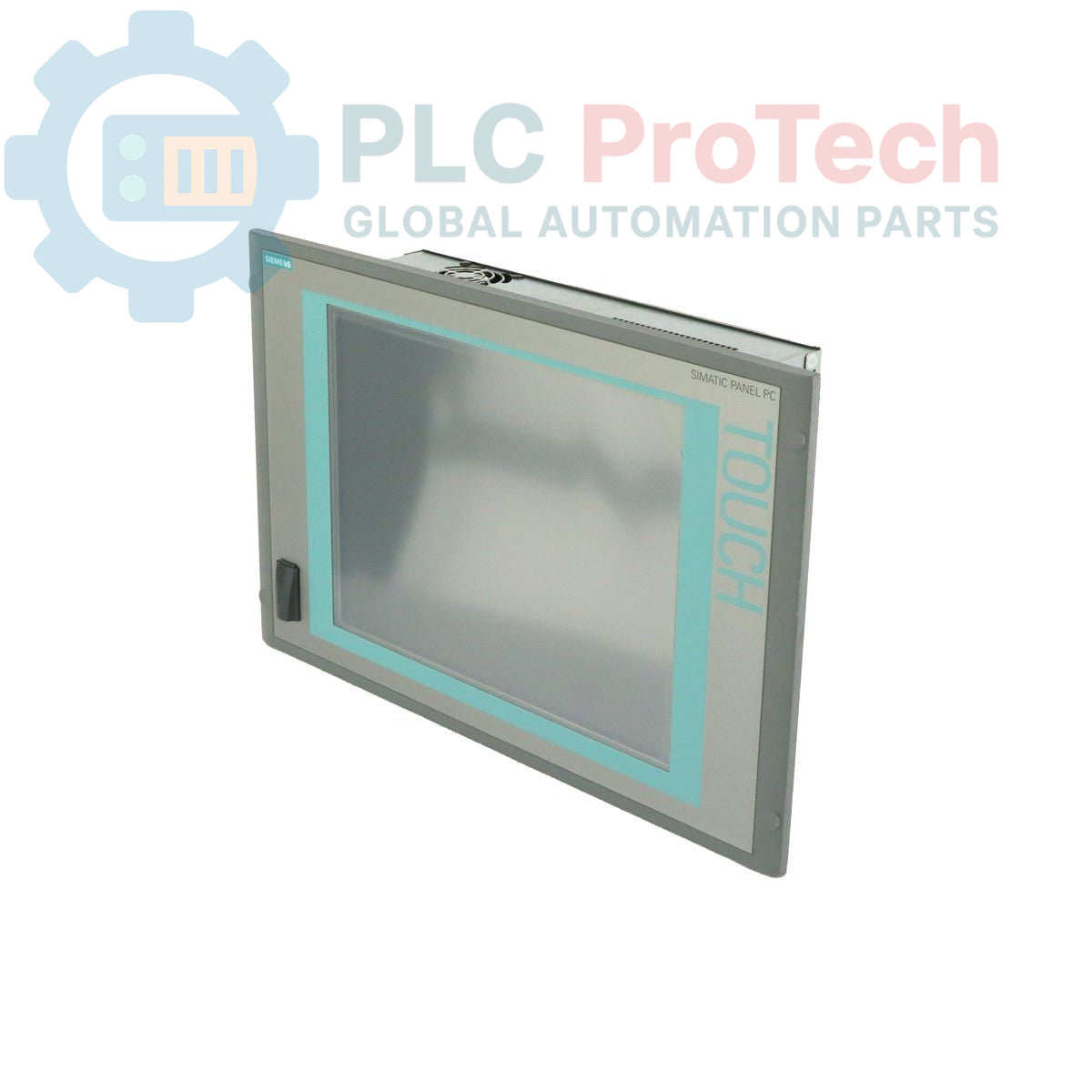

This is a Siemens 6AV7885-2AK22-0AA1, a SIMATIC HMI IPC 577C series industrial panel PC. It integrates a 15-inch touch display with an Intel Core 2 Duo 1.86 GHz processor and 2 GB of DDR3 RAM for demanding HMI applications. This unit is equipped with a 320 GB SATA HDD, a DVD RW drive, and extensive connectivity options including a dual-port PROFINET (IE) interface, a separate Gigabit Ethernet port, and five USB ports. It features a single PCI slot for expansion and is powered by a 110/230 V AC power supply. This model is supplied without a pre-installed operating system or software. Please note, this product is in the Phase-Out stage of its lifecycle.

Features

• 15-inch integrated color touch display
• Intel Core 2 Duo processor operating at 1.86 GHz
• 2 GB of installed DDR3 RAM
• 320 GB SATA Hard Disk Drive for mass storage
• Integrated DVD RW optical drive
• Dual-port PROFINET (IE) interface (2 x 1 Gbit)
• One standard PCI expansion slot
• Five total USB ports (4 rear, 1 front)
• Wide-range 110/230 V AC power supply with NAMUR specifications

Applications

• Machine-level control and visualization
• Process monitoring and data logging
• Supervisory Control and Data Acquisition (SCADA) nodes
• Factory and plant floor automation systems
• Industrial computing tasks requiring a ruggedized HMI

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet or panel is completely de-energized and locked out before beginning work. Verify zero-energy state with a calibrated multimeter.
2. 2 Verify the panel cutout dimensions match the requirements for the IPC 577C chassis. Ensure the mounting surface is clean, flat, and can support the unit's weight.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the chassis. This is a critical safety connection.
5. 5 Connect the 110/230 V AC power supply cable. Ensure the source voltage matches the power supply's rating.
6. 6 Connect all required communication (PROFINET, Ethernet) and peripheral (USB) cables. Use shielded cables for all data connections and ensure proper shield termination.
7. 7 After verifying all connections are secure and correct, remove the LOTO device and re-energize the cabinet. Power on the unit to begin software installation and configuration.
