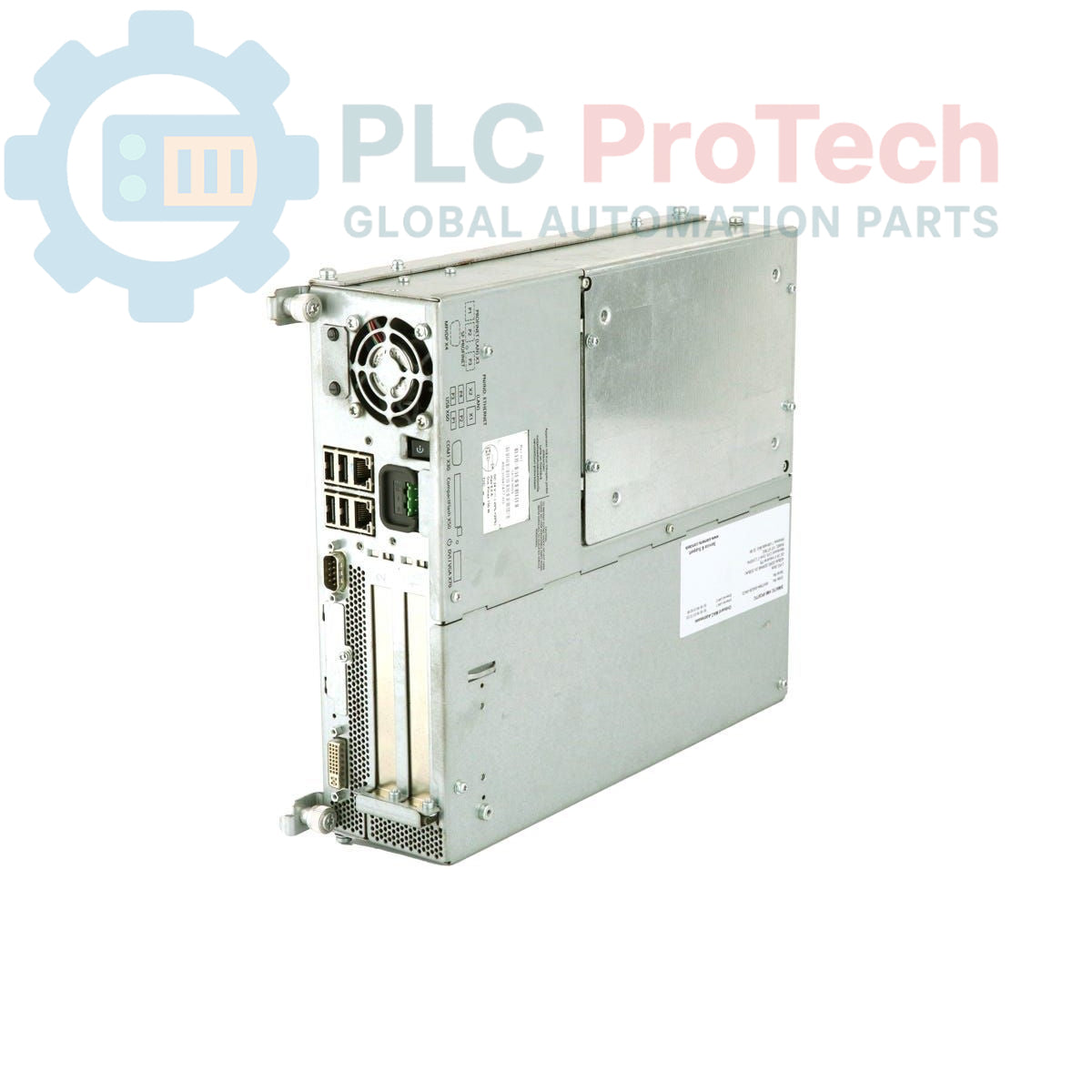

Siemens 6AV7892-0FG32-1BE1 SIMATIC HMI IPC677C Panel PC

SKU 6AV7892-0FG32-1BE1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7892-0FG32-1BE1
Origin Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17.45 kg
Dimensions: 67.00 x 55.00 x 28.00 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6AV7892-0FG32-1BE1 is a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface (HMI) applications. This robust panel PC integrates a 15-inch touch display with a resolution of 1024x768, providing a clear and interactive operator interface. It is equipped with an Intel Core i7-610E processor, 4 GB DDR3 RAM, and a RAID1 configured storage system with two 320 GB SATA drives for data redundancy. Connectivity options include two Gigabit Ethernet ports, four USB V2.0 ports (including a front-side USB interface), and one serial (COM1) port. The unit also features a watchdog, temperature, and fan monitoring, along with an onboard RAID controller, ensuring reliable operation in demanding industrial environments. It comes pre-installed with Windows 7 Ultimate 64 Bit SP1 and SIMATIC IPC DIAGMONITOR V4.5.

Features

Integrated 15-inch touch display with 1024x768 resolution
Intel Core i7-610E processor (2C/4T, 2.53GHz, TB, HT, VT, 4 MB Cache)
4 GB DDR3 1066 DIMM RAM
RAID1 storage with 2x 320 GB SATA (2.5") mirror disks
DVD+-R+-RW optical drive
2x 10/100/1000 Mbit/s Ethernet ports
4x USB V2.0 ports (including front-side USB)
1x Serial (COM1) port
Watchdog, temperature, and fan monitoring
Onboard RAID controller
1x PCI and 1x PCIe (x16) free expansion slots
110/230 V AC power supply unit with NAMUR compatibility
Pre-installed Windows 7 Ultimate 64 Bit SP1 (MUI)
SIMATIC IPC DIAGMONITOR V4.5 enclosed

Applications

Industrial visualization and control systems
Machine operation and monitoring
Process control and data acquisition
Manufacturing execution systems (MES)
Building automation and infrastructure management
Logistics and material handling systems

Technical Specifications

Manufacturer	Siemens
Product Range	SIMATIC Panel PC
Subrange	IPC677C
Product Type	Panel PC
Display Type	15" Touch
Display Resolution	1024x768
Processor	Intel Core i7-610E (2C/4T, 2.53GHz, TB, HT, VT, 4 MB Cache)
RAM	4 GB DDR3 1066 DIMM
Storage	RAID1 2x 320 GB SATA (2.5") (Mirror Disks)
Optical Drive	DVD+-R+-RW
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0 (including front-side USB interface)
Serial Ports	1x (COM1)
Expansion Slots	1x PCI, 1x PCIe (x16) free
Power Supply	110/230 V AC, with NAMUR, USA power supply cable
Monitoring	Watchdog, Temperature and Fan Monitoring
RAID Controller	Onboard
Operating System	Windows 7 Ultimate 64 Bit SP1, MUI (DE, EN, FR, ES, IT)
Pre-installed Software	SIMATIC IPC DIAGMONITOR V4.5
Product Phase	Phase-Out
Package Dimensions (Calculated)	67.00 x 55.00 x 28.00 cm
Shipping Weight	17.45 kg
Commodity Code	85371098
Export Control Regulations (ECCN)	N

Connections / Interfaces

Connector Type	Function
Ethernet (RJ45)	2x 10/100/1000 Mbit/s network connection
USB V2.0	4x ports for peripherals (e.g., keyboard, mouse, storage), including a front-side interface
Serial (COM1)	1x serial communication port

Installation Guidelines

De-energize System: Before installation, ensure all power to the system and the Panel PC is disconnected and secured against accidental re-energization.
Mounting: Securely mount the Panel PC into the designated panel cutout. Ensure proper sealing to maintain the specified IP protection rating of the front panel.
Power Connection: Connect the 110/230 V AC power supply cable to the Panel PC's power input. Ensure the power source matches the specified voltage range.
Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
Peripheral Connections: Connect Ethernet cables to the RJ45 ports for network communication. Connect USB devices and serial devices as required for the application.
Cable Management: Route all cables to prevent strain, interference, and damage. Use cable ties and conduits where appropriate to maintain a tidy and secure installation.
Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for the Panel PC. Provide adequate ventilation to prevent overheating.
Initial Power-Up: After all connections are verified, re-energize the system and power on the Panel PC. Observe for proper boot-up and system functionality.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What operating system is pre-installed on the IPC677C Panel PC?

The Panel PC comes with Windows 7 Ultimate 64 Bit SP1, including multi-language support (German, English, French, Spanish, Italian).

What type of display does this Panel PC feature?

It features a 15-inch touch display with a resolution of 1024x768 pixels, suitable for HMI applications.

Does the IPC677C support data redundancy for storage?

Yes, it is equipped with an onboard RAID controller and two 320 GB SATA drives configured in RAID1 (mirror disks) for data redundancy.

What expansion options are available?

The unit includes one free PCI slot and one free PCIe (x16) slot for additional expansion cards.

What power supply voltage is required for the Panel PC?

The Panel PC operates with a 110/230 V AC power supply unit, and it includes a USA power supply cable.
